Toyota
›
2008
›
FJ Cruiser 4WD, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
Testing & Diagnosis
›
Engine Control System
›
SFI System
›
Fuel Injector Circuit
›
Wiring Diagram
Fuel Injector Circuit: Wiring Diagram

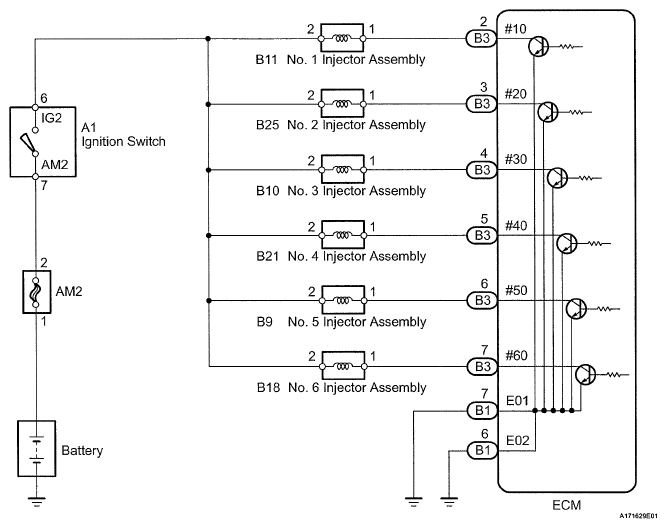

Fig 1: Identifying Fuel Injector Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
