Brake Actuator: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

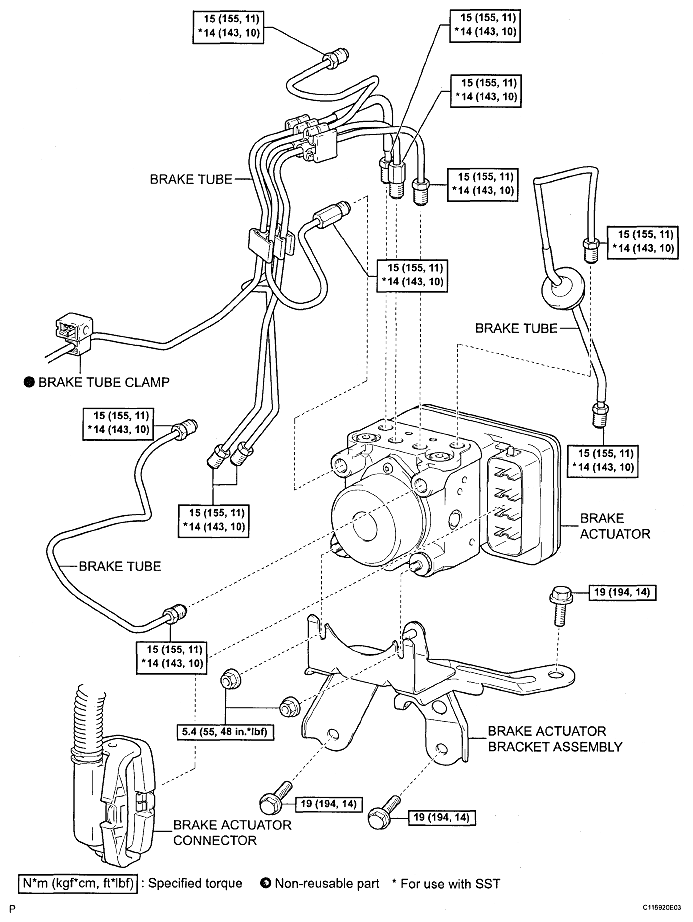

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (1 Of 2)

Fig 2: Identifying Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
