Skid Control Buzzer: Installation
- INSTALL SKID CONTROL BUZZER

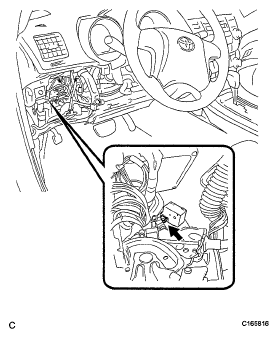

- Install the clamp and skid control buzzer.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect the skid control buzzer connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)
(See INSTALLATION
)
- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)
(See INSTALLATION
)
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY
(See INSTALLATION
)
- INSTALL FRONT DOOR SCUFF PLATE
(See INSTALLATION
)
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. (See INITIALIZATION
)
