ECM Power Source Circuit: Wiring Diagram

Fig 1: Identifying ECM Power Source Circuit Wiring Diagram (1 Of 2)
G05413885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

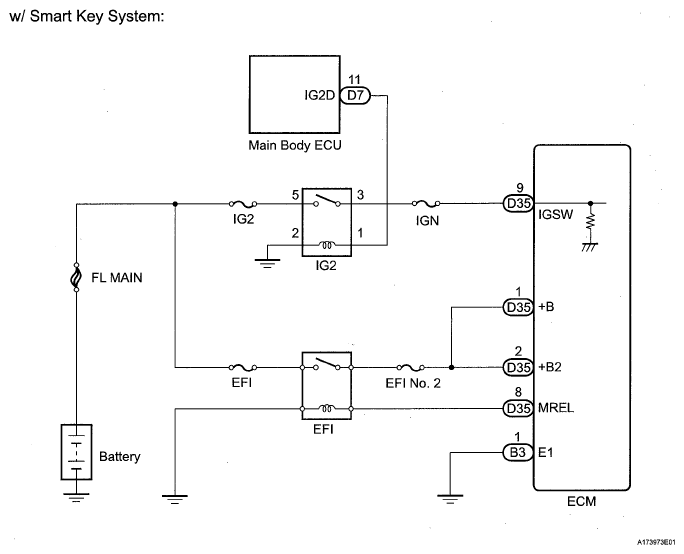

Fig 2: Identifying ECM Power Source Circuit Wiring Diagram (2 Of 2)
G05413886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
