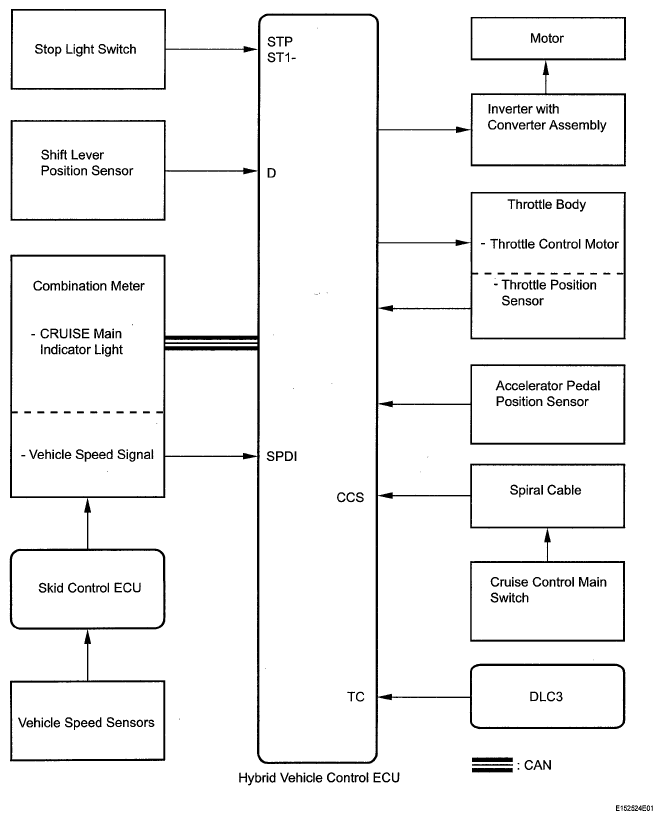

System Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table:
COMMUNICATION CHART
| Sender |
Receiver |
Signal |
Line |
| Hybrid vehicle control ECU |
Combination meter |
CRUISE main indicator operation signal |
CAN |
