Section 8 (Brake Control - Hybrid)
›
Brake Control Power Supply
›
Components
Brake Control Power Supply: Components
WARNING:
This page is about a different variant/trim than selected.

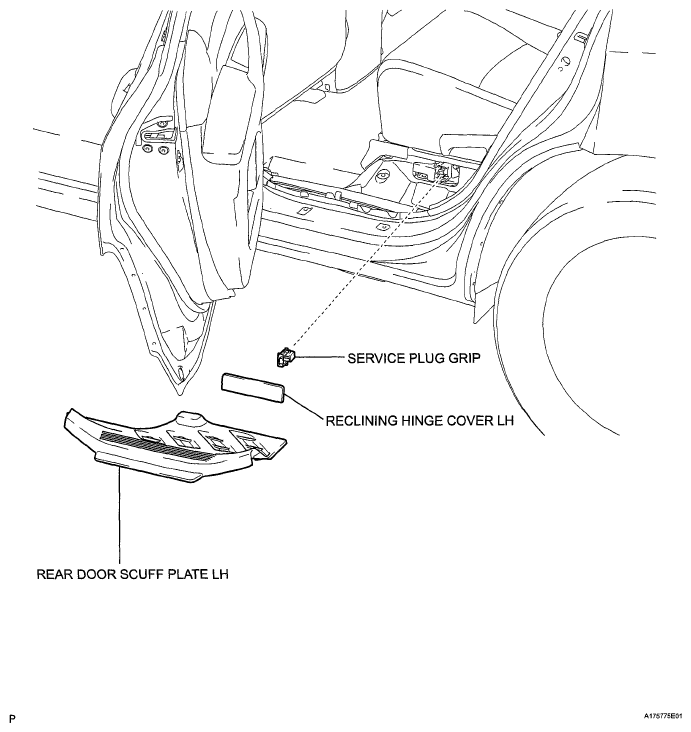

Fig 1: Identifying Brake Control Power Supply Replacement Components (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

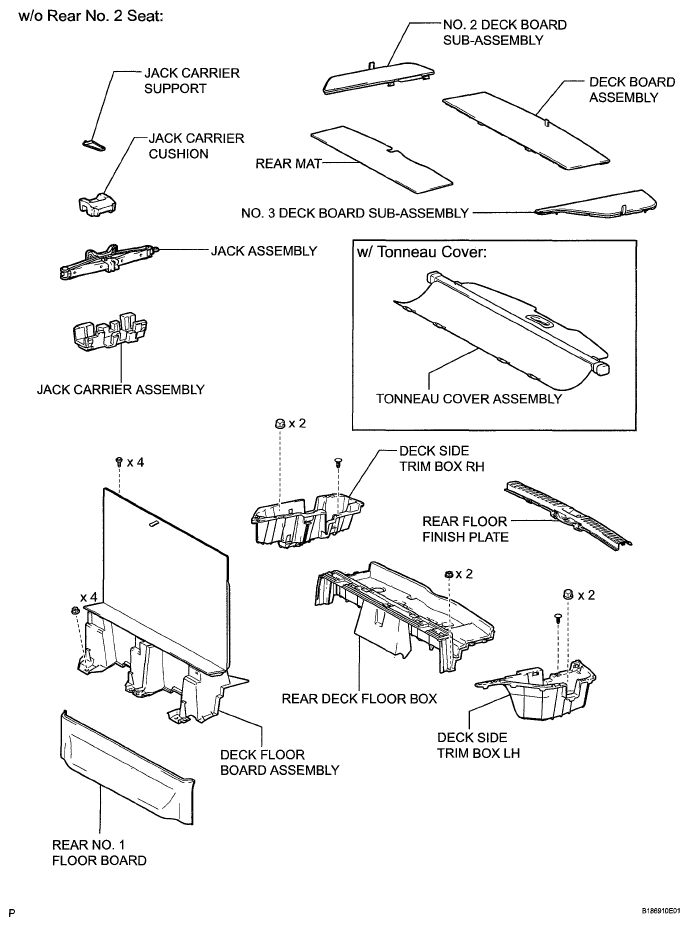

Fig 2: Identifying Brake Control Power Supply Replacement Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

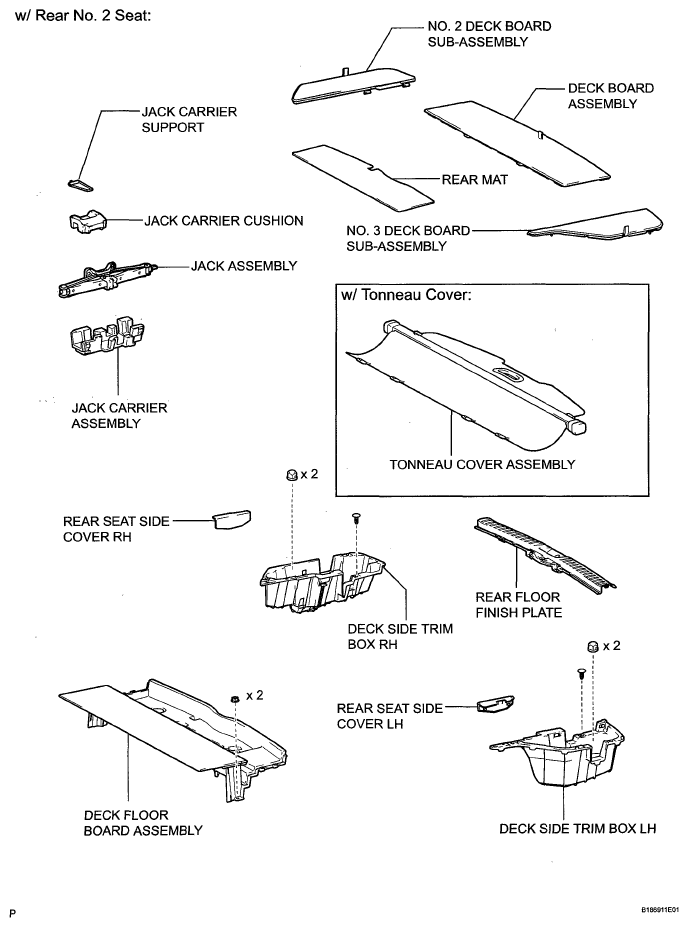

Fig 3: Identifying Brake Control Power Supply Replacement Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

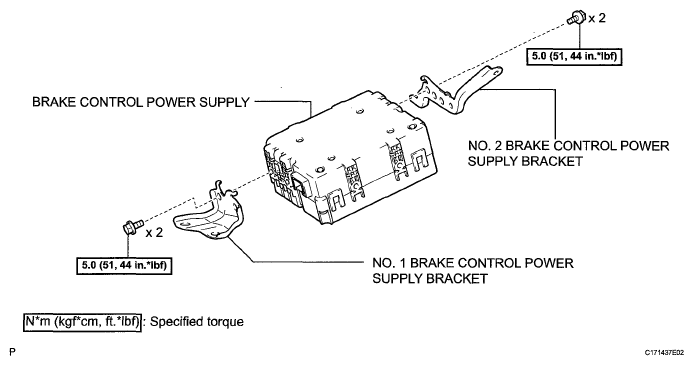

Fig 4: Brake Control Power Supply Replacement Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

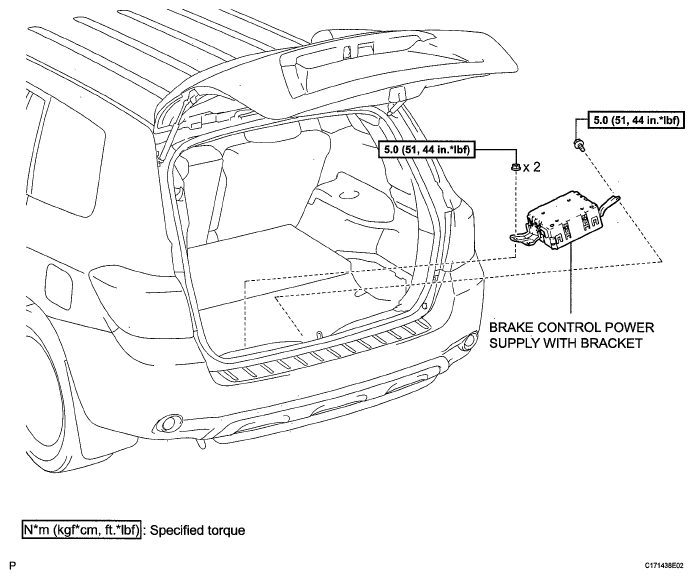

Fig 5: Brake Control Power Supply Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
