Front Speed Sensor: Components

WARNING: This page is about a different variant/trim than selected.

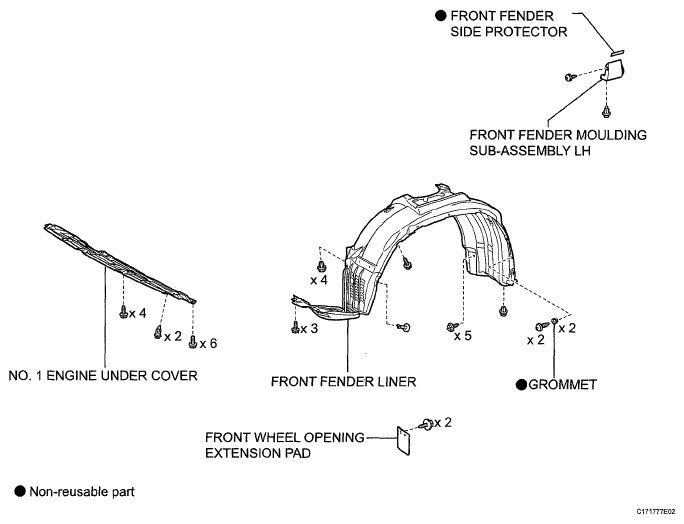

Fig 1: Identifying Front Speed Sensor Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Front Speed Sensor Replacement Components (2 Of 3)

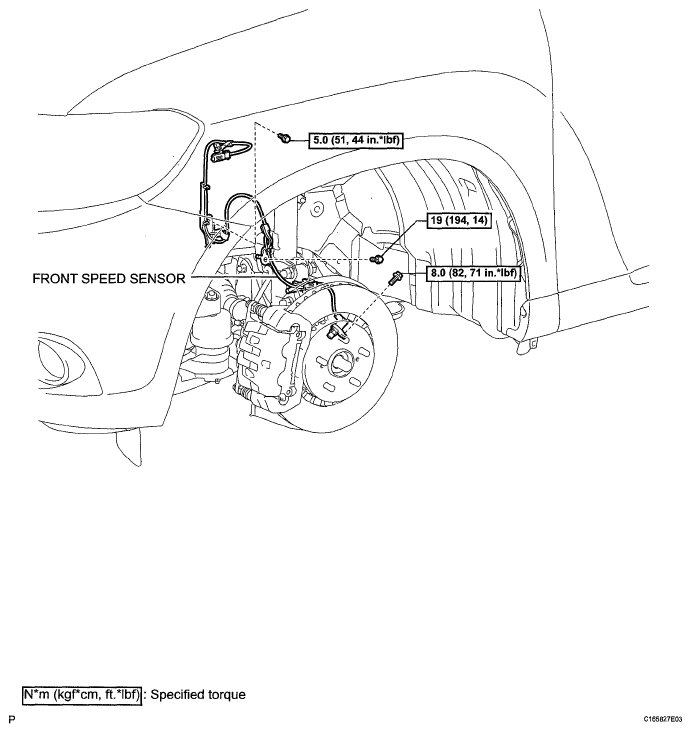

Fig 3: Front Speed Sensor Replacement Components With Torque Specifications (3 Of 3)
