Section 8 (Brake Control - Hybrid)
›
Skid Control Ecu
›
Components
Skid Control Ecu: Components
WARNING:
This page is about a different variant/trim than selected.

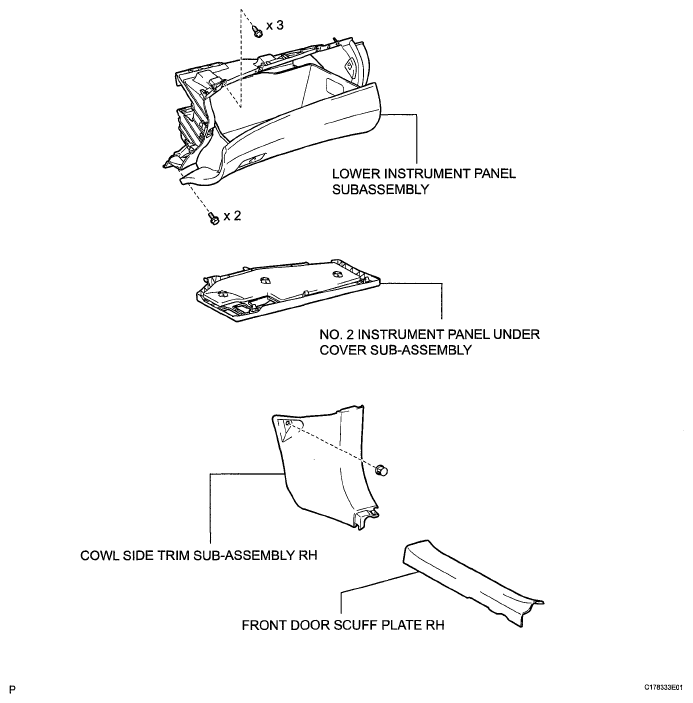

Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

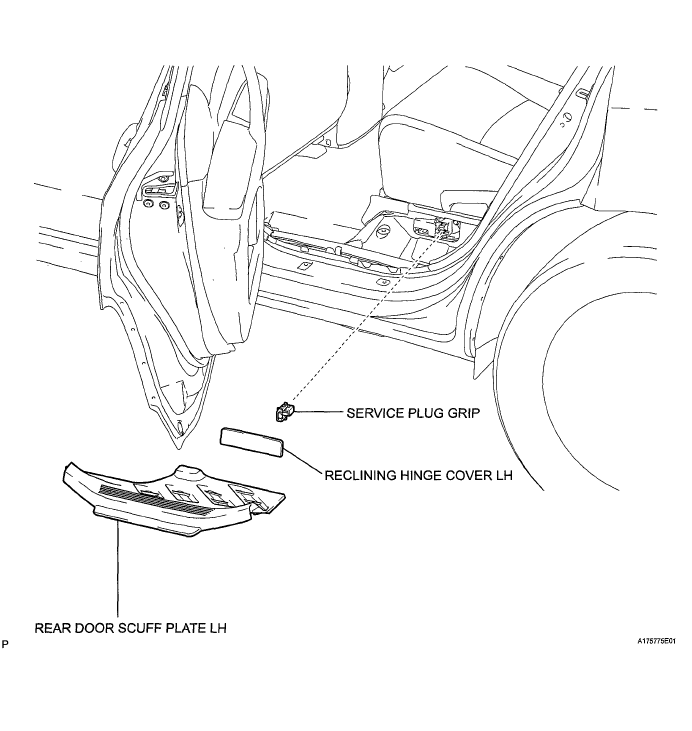

Fig 2: Identifying Skid Control ECU Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

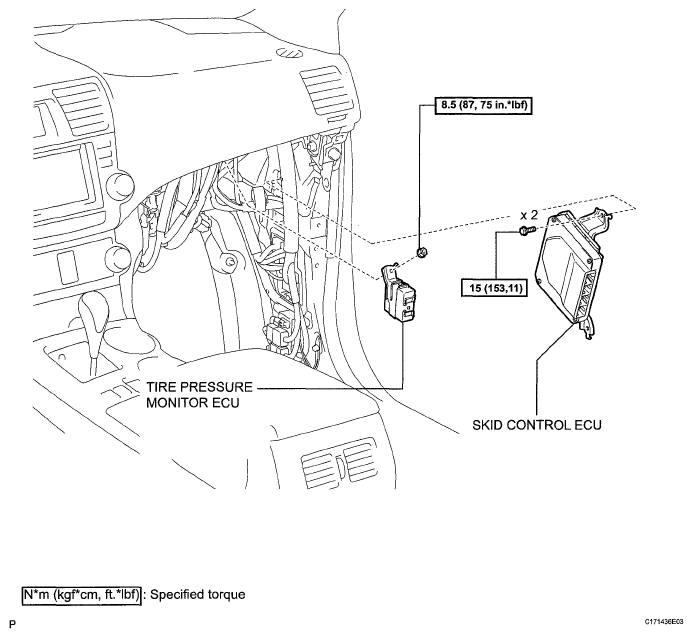

Fig 3: Skid Control ECU Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
