Steering Column Assembly: Components

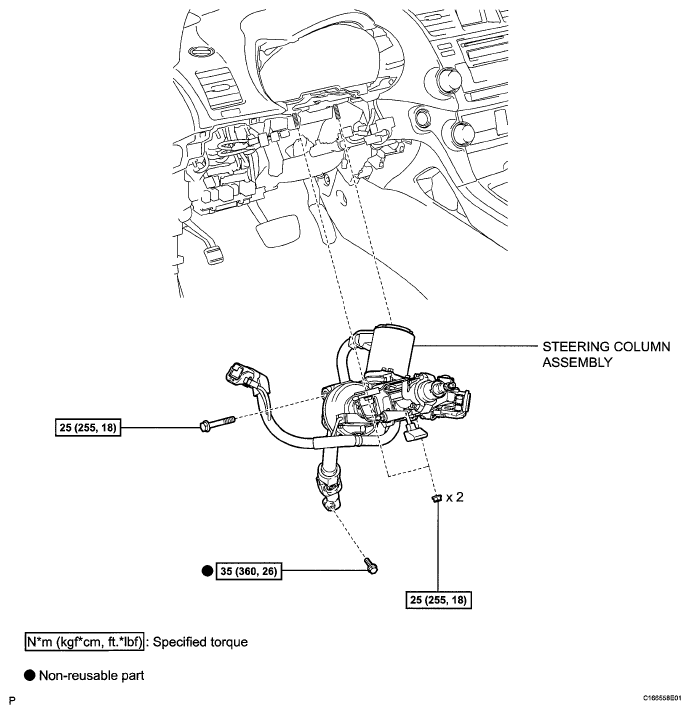

Fig 1: Identifying Steering Column Assembly Replacement Components (1 Of 8) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

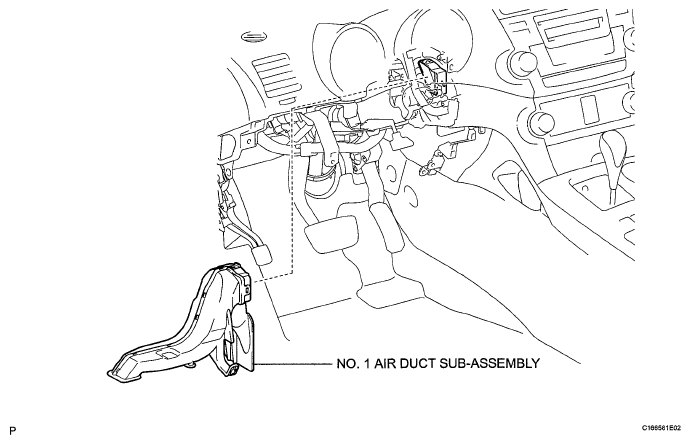

Fig 2: Identifying Steering Column Assembly Replacement Components (2 Of 8) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

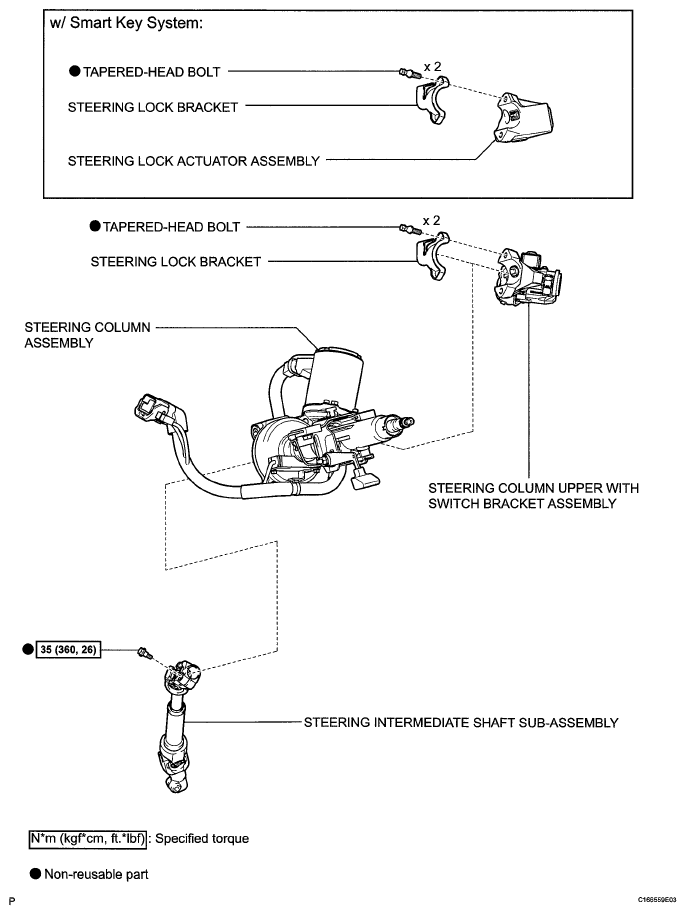

Fig 3: Identifying Steering Column Assembly Replacement Components (3 Of 8) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

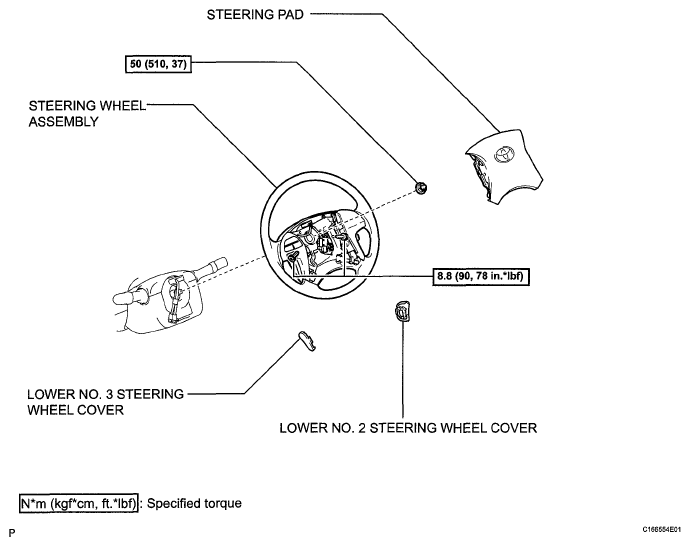

Fig 4: Identifying Steering Column Assembly Replacement Components (4 Of 8) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

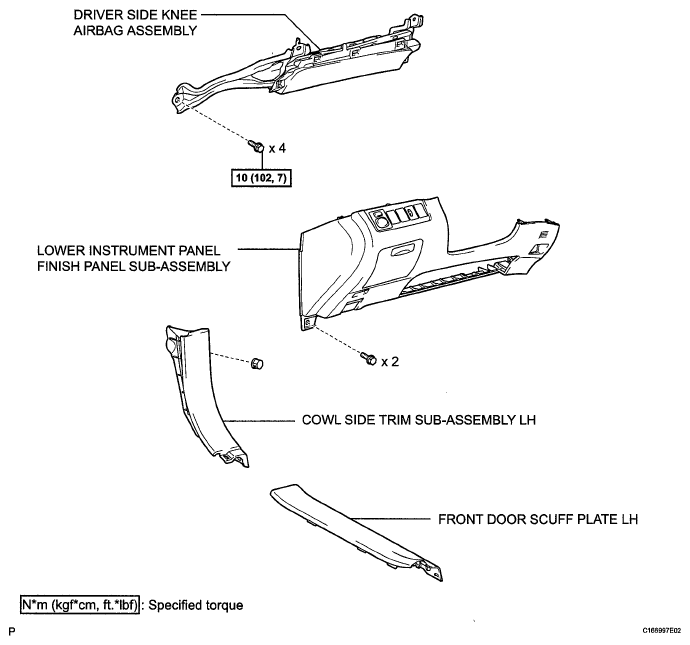

Fig 5: Identifying Steering Column Assembly Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

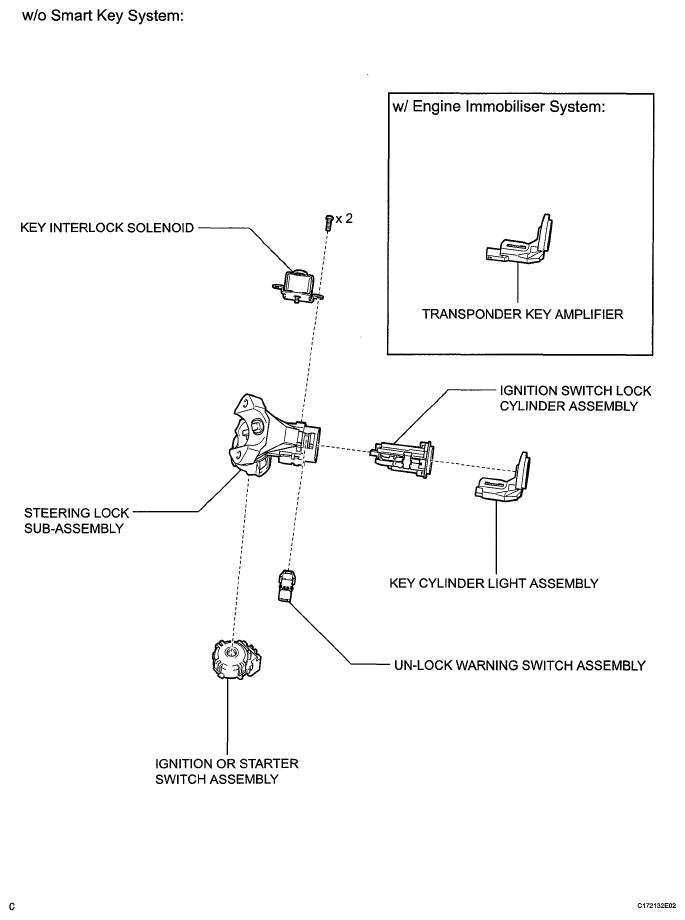

Fig 6: Identifying Steering Column Assembly Replacement Components (6 Of 8) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

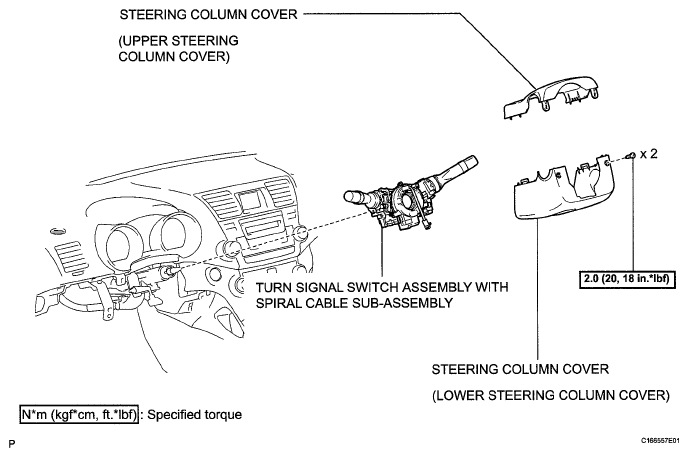

Fig 7: Identifying Steering Column Assembly Replacement Components (7 Of 8) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Steering Column Assembly Replacement Components (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
