Back Window Lock: Components

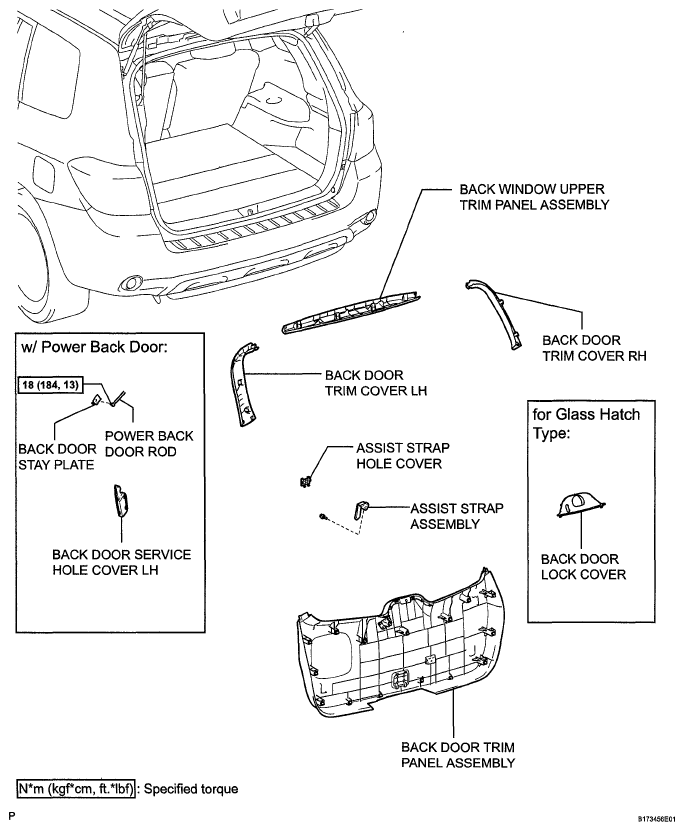

Fig 1: Identifying Back Window Lock Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Back Window Lock Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Back Window Lock Replacement Components With Torque Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
