Driver Side Power Window Auto Up/Down Function Does Not Operate With Power Window Master Switch: Wiring Diagram

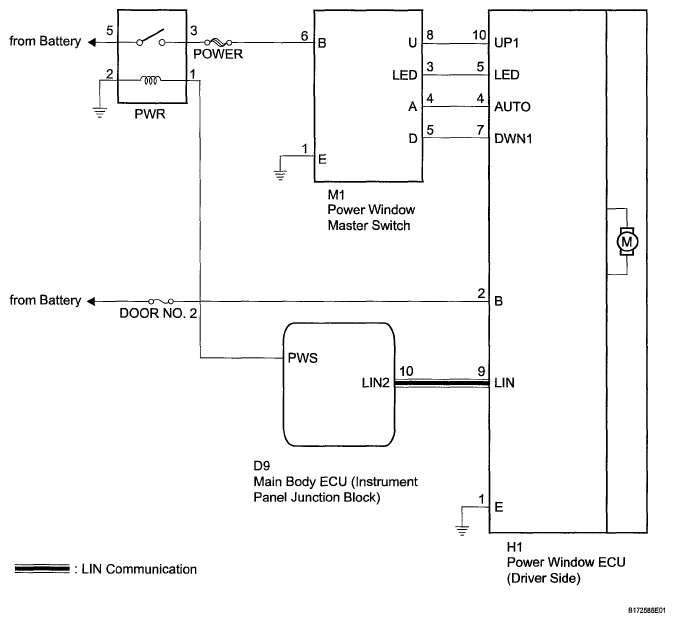

Fig 1: Identifying Power Window Master Switch Wiring Diagram
G05421147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
