System Diagram
System Diagram

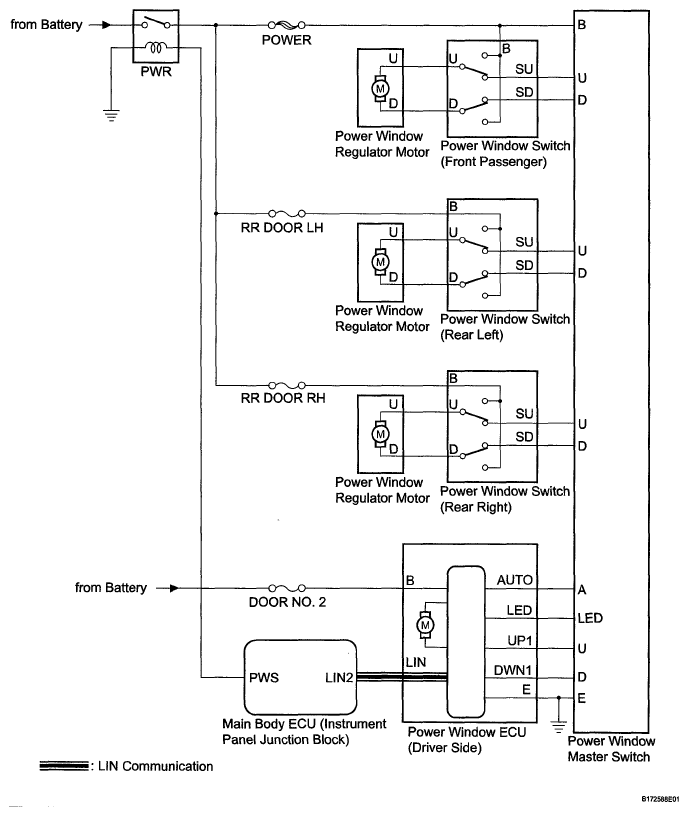

Fig 1: Identifying Power Window Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
