Quarter Window Glass: Components

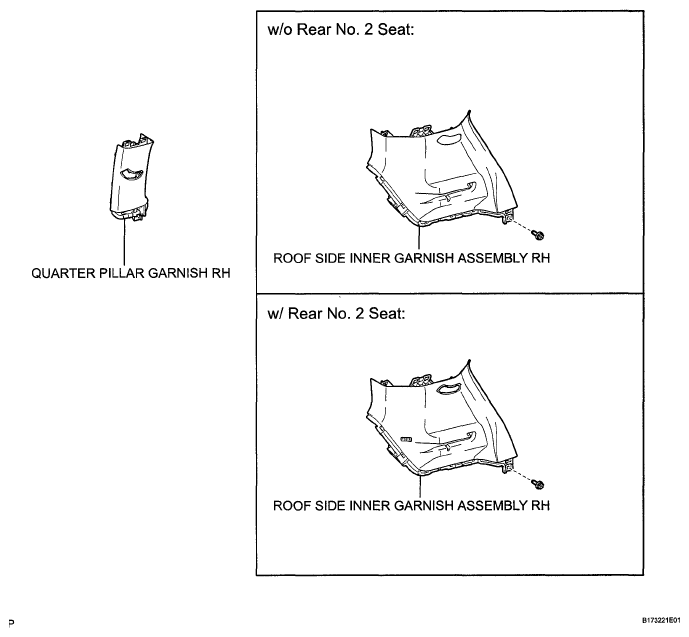

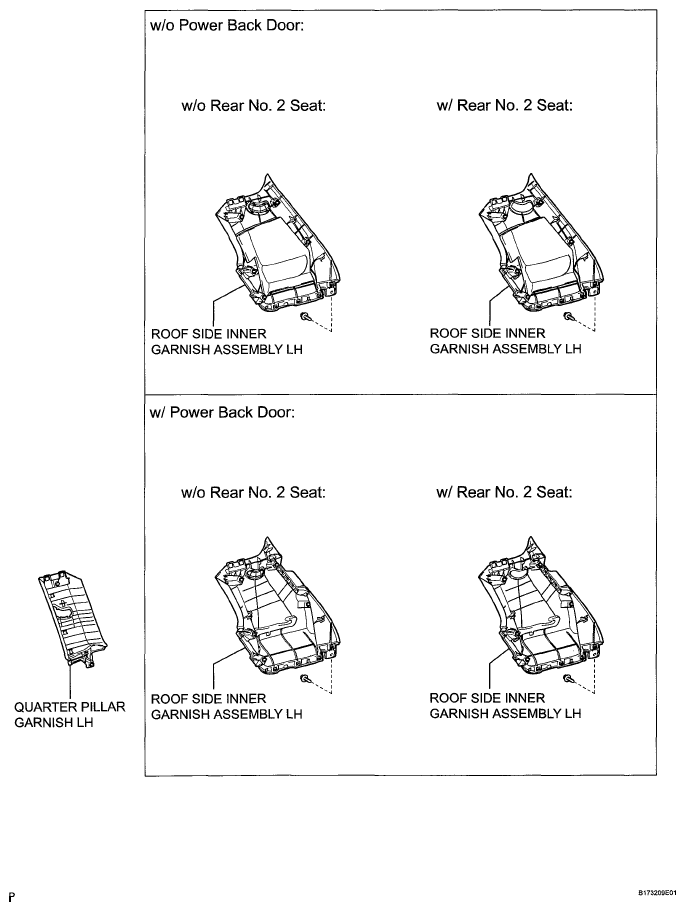

Fig 1: Identifying Quarter Window Glass Replacement Components (1 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

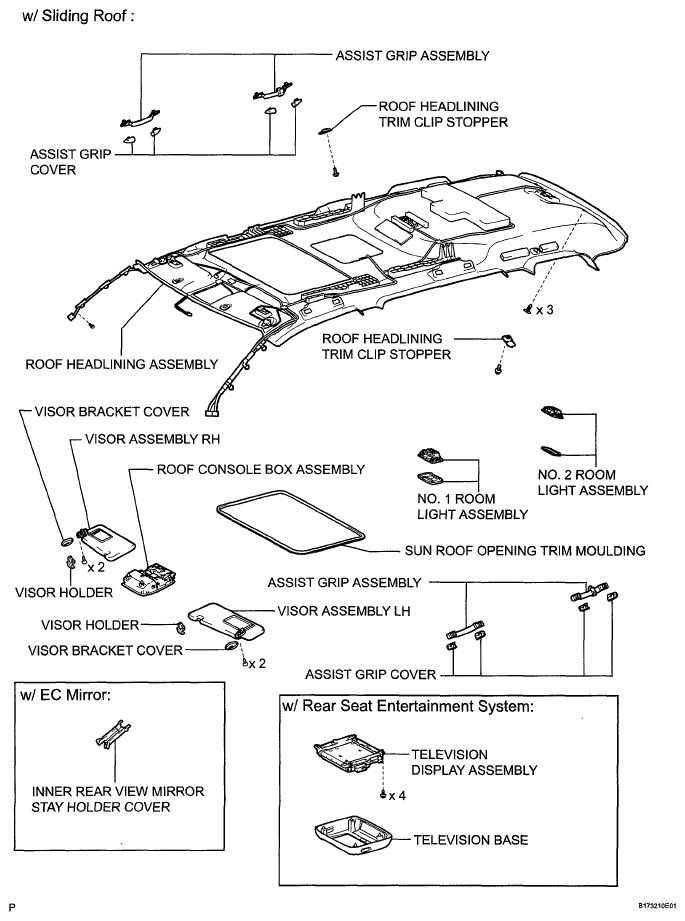

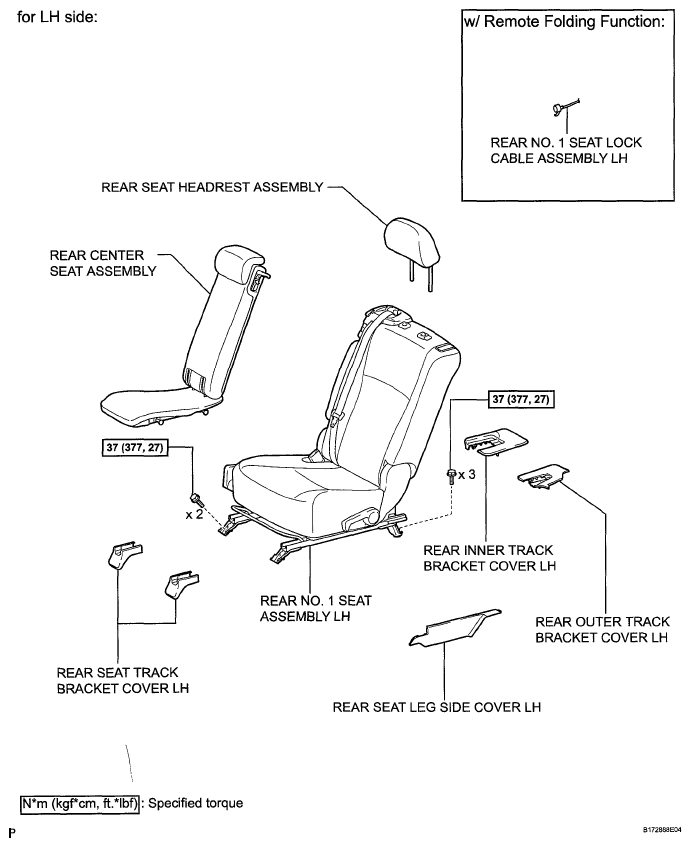

Fig 2: Identifying Quarter Window Glass Replacement Components (2 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

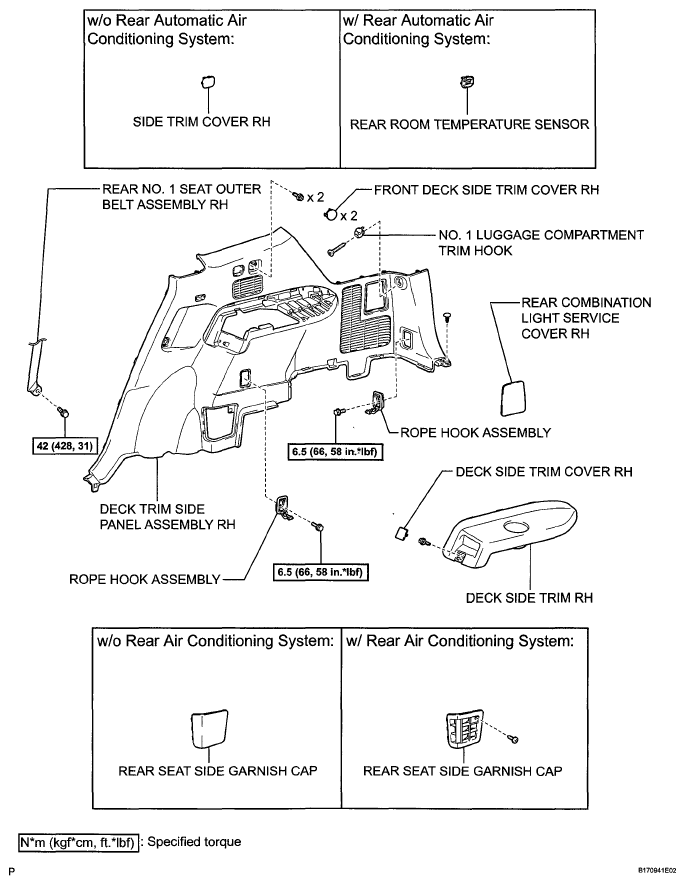

Fig 3: Identifying Quarter Window Glass Replacement Components (3 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

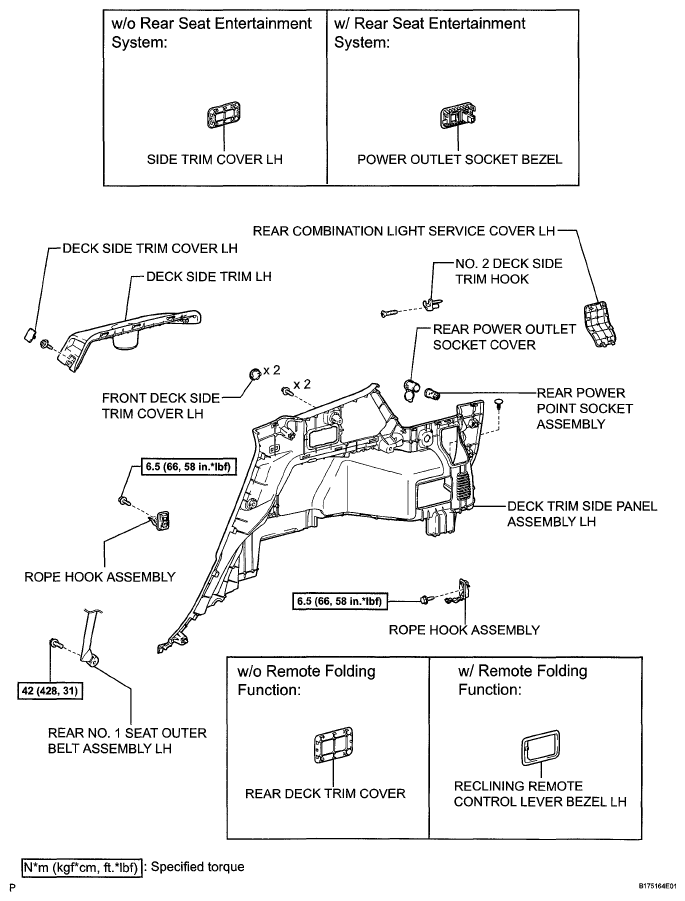

Fig 4: Identifying Quarter Window Glass Replacement Components (4 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

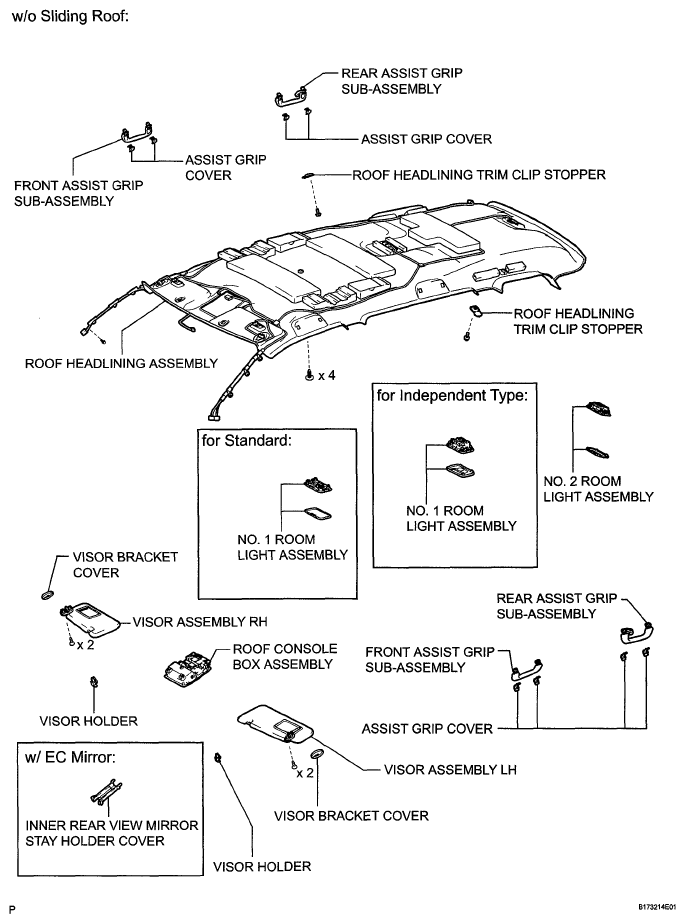

Fig 5: Identifying Quarter Window Glass Replacement Components (5 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

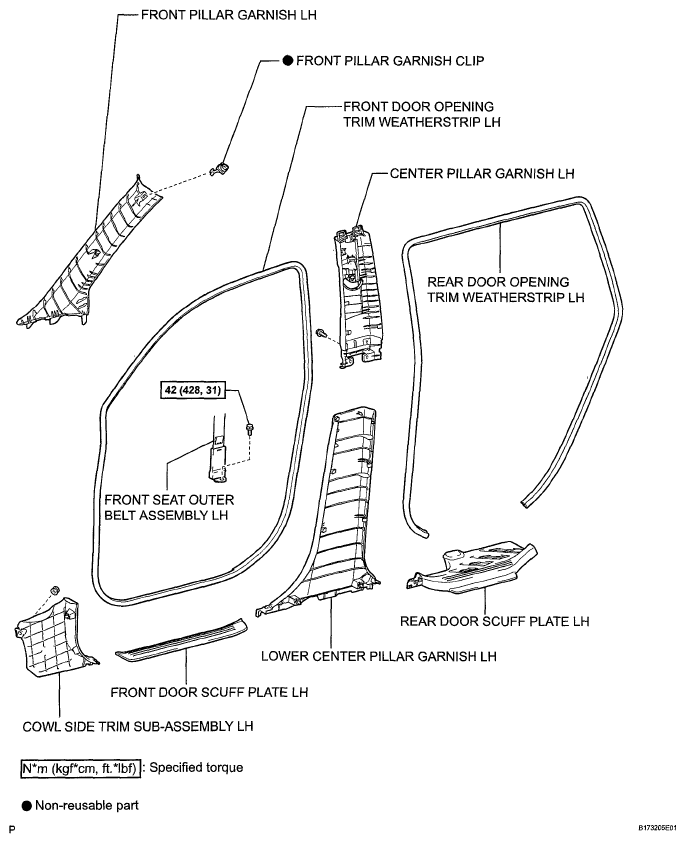

Fig 6: Identifying Quarter Window Glass Replacement Components (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

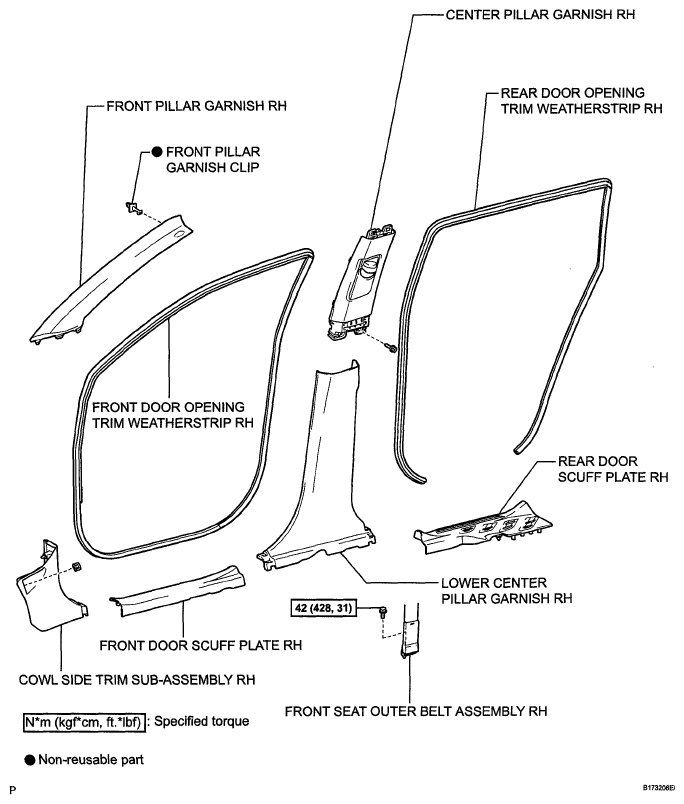

Fig 7: Identifying Quarter Window Glass Replacement Components (7 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

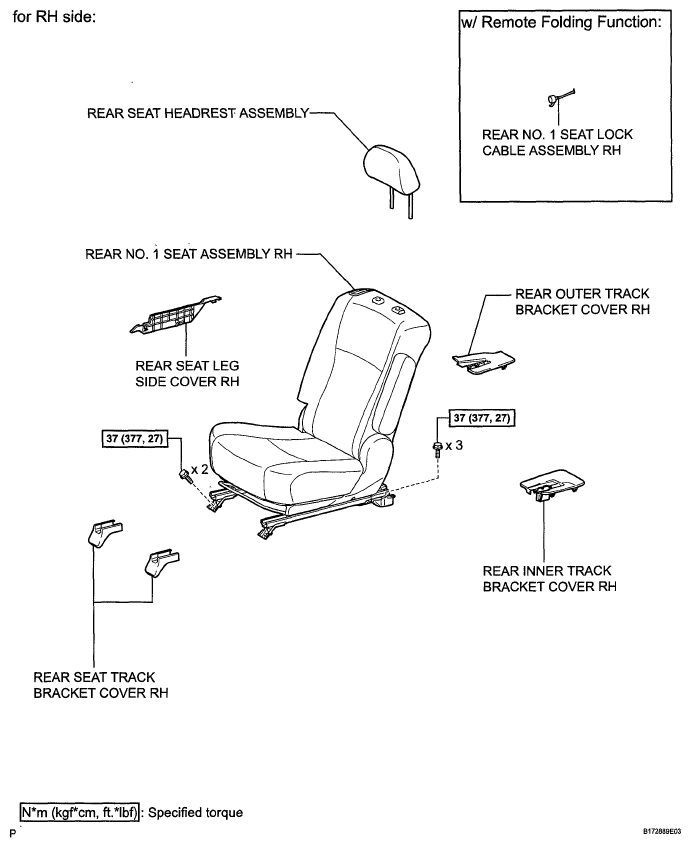

Fig 8: Identifying Quarter Window Glass Replacement Components (8 Of 14) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Quarter Window Glass Replacement Components (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Quarter Window Glass Replacement Components (10 Of 14) With Torque Specifications

Fig 11: Identifying Quarter Window Glass Replacement Components (11 Of 14)

Fig 12: Identifying Quarter Window Glass Replacement Components (12 Of 14)

Fig 13: Identifying Quarter Window Glass Replacement Components (13 Of 14)

Fig 14: Identifying Quarter Window Glass Replacement Components (14 Of 14)
