Terminals Of Ecu

HINT:

Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      NOTE: Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the engine switch, any switches or doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
  2. JUNCTION CONNECTOR
    1. NO. 1 JUNCTION CONNECTOR

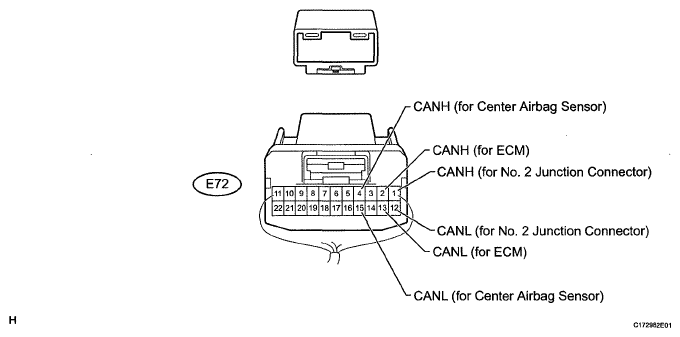

      Fig 1: Identifying No. 1 Junction Connector Terminal
      G05639401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 1 Junction Connector Wiring Color Connect to
      E72-1 (CANH) Y No. 2 junction connector
      E72-12 (CANL) B
      E72-2 (CANH) P ECM
      E72-13 (CANL) B
      E72-4 (CANH) GR Center airbag sensor
      E72-15 (CANL) B
    2. NO. 2 JUNCTION CONNECTOR

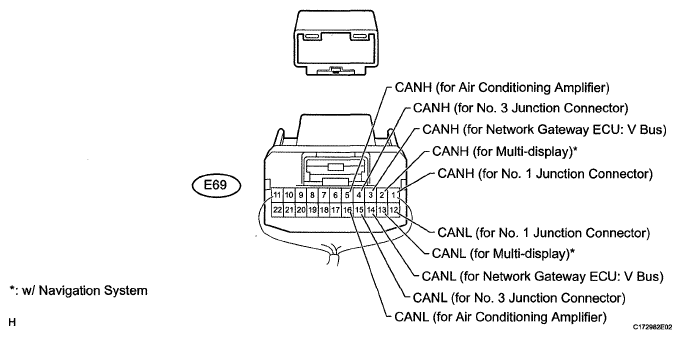

      Fig 2: Identifying No. 2 Junction Connector Terminal
      G05639402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 2 Junction Connector Wiring Color Connect to
      E69-1 (CANH) Y No. 1 junction connector
      E69-12 (CANL) B
      E69-2 (CANH)* P Multi-display
      E69-13 (CANL)* B
      E69-3 (CANH) BR Network gateway ECU (V bus)
      E69-14 (CANL) B
      E69-4 (CANH) W No. 3 junction connector
      E69-15 (CANL) B
      E69-5 (CANH) G Air conditioning amplifier
      E69-16 (CANL) B
      HINT:
      *: w/Navigation System
    3. NO. 3 JUNCTION CONNECTOR

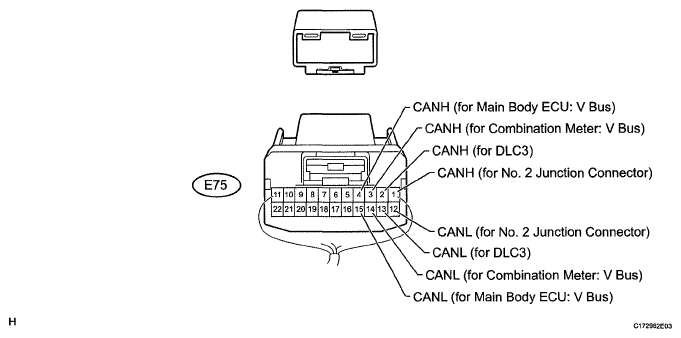

      Fig 3: Identifying No. 3 Junction Connector Terminal
      G05639403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 3 Junction Connector Wiring Color Connect to
      E75-1 (CANH) W No. 2 junction connector
      E75-12 (CANL) B
      E75-2 (CANH) G DLC3
      E75-13 (CANL) B
      E75-3 (CANH) V Combination meter (V bus)
      E75-14 (CANL) B
      E75-4 (CANH) SB Main body ECU (V bus)
      E75-15 (CANL) B
    4. NO. 4 JUNCTION CONNECTOR

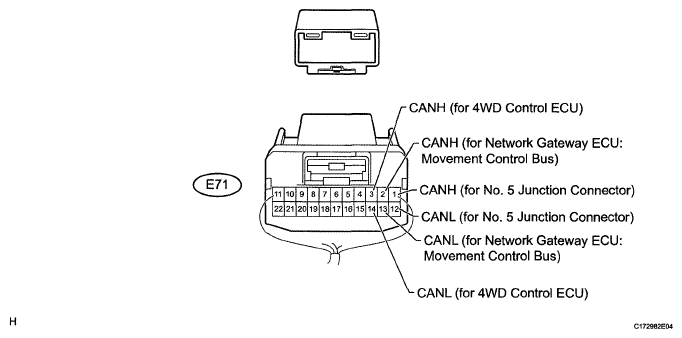

      Fig 4: Identifying No. 4 Junction Connector Terminal
      G05639404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 4 Junction Connector Wiring Color Connect to
      E71-1 (CANH) W No. 5 junction connector
      E71-12 (CANL) L
      E71-2 (CANH) SB Network gateway ECU (Movement control bus)
      E71-13 (CANL) L
      E71-3 (CANH) P 4WD control ECU
      E71-14 (CANL) L
    5. NO. 5 JUNCTION CONNECTOR

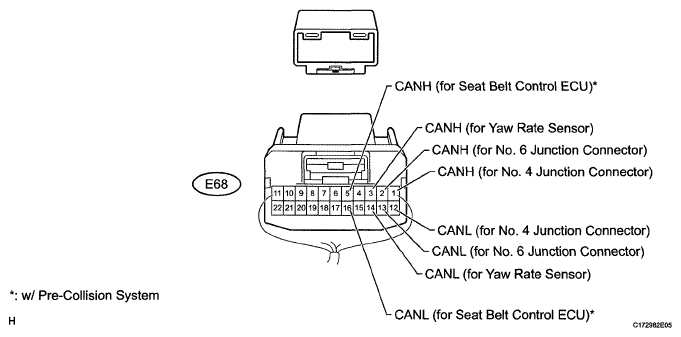

      Fig 5: Identifying No. 5 Junction Connector Terminal
      G05639405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 5 Junction Connector Wiring Color Connect to
      E68-1 (CANH) W No. 4 junction connector
      E68-12 (CANL) L
      E68-2 (CANH) Y No. 6 junction connector
      E68-13 (CANL) L
      E68-3 (CANH) BR Yaw rate sensor
      E68-14 (CANL) L
      E68-5 (CANH)* G Seat belt control ECU
      E68-16 (CANL)* L
      HINT:
      *: w/Pre-Collision System
    6. NO. 6 JUNCTION CONNECTOR
      Fig 6: Identifying No. 6 Junction Connector Terminal
      G05639405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 6 Junction Connector Wiring Color Connect to
      F21-1 (CANH)* V Clearance warning ECU
      F21-12 (CANL)* L
      F21-2 (CANH) Y No. 7 junction connector
      F21-13 (CANL) L
      F21-3 (CANH) Y No. 5 junction connector
      F21-14 (CANL) L

      HINT:

      *: w/Intuitive Parking Assist System

    7. NO. 7 JUNCTION CONNECTOR

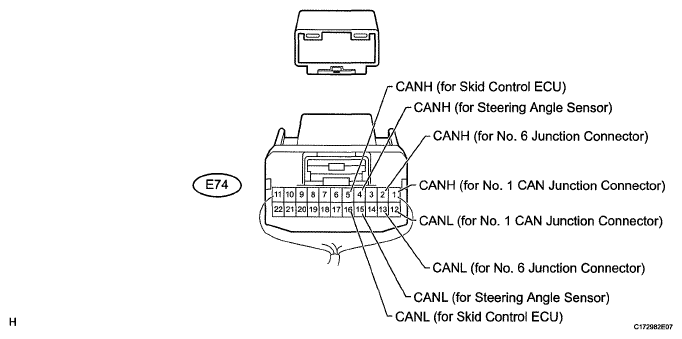

      Fig 7: Identifying No. 7 Junction Connector Terminal
      G05639407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 7 Junction Connector Wiring Color Connect to
      E74-1 (CANH) W No. 1 CAN junction connector
      E74-12 (CANL) L
      E74-2 (CANH) Y No. 6 junction connector
      E74-13 (CANL) L
      E74-4 (CANH) GR Steering angle sensor
      E74-15 (CANL) L
      E74-5 (CANH) V Skid control ECU
      E74-16 (CANL) L
    8. NO. 8 JUNCTION CONNECTOR

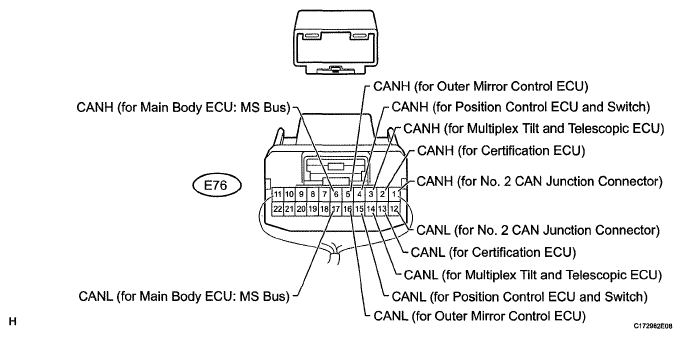

      Fig 8: Identifying No. 8 Junction Connector Terminal
      G05639408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 8 Junction Connector Wiring Color Connect to
      E76-1 (CANH) W No. 2 CAN junction connector
      E76-12 (CANL) R
      E76-2 (CANH) LG Certification ECU
      E76-13 (CANL) R
      E76-3 (CANH) P Multiplex tilt and telescopic ECU
      E76-14 (CANL) R
      E76-4 (CANH) V Position control ECU and switch
      E76-15 (CANL) R
      E76-5 (CANH) BR Outer mirror control ECU
      E76-16 (CANL) R
      E76-6 (CANH) GR Main body ECU (MS bus)
      E76-17 (CANL) R
    9. NO. 9 JUNCTION CONNECTOR
      Fig 9: Identifying No. 9 Junction Connector Terminal
      G05639409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 9 Junction Connector Wiring Color Connect to
      E73-1 (CANH) W No. 10 junction connector
      E73-12 (CANL) R
      E73-2 (CANH) Y No. 2 CAN junction connector
      E73-13 (CANL) R
    10. NO. 10 JUNCTION CONNECTOR
      Fig 10: Identifying No. 10 Junction Connector Terminal
      G05639410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      No. 10 Junction Connector Wiring Color Connect to
      E70-1 (CANH) W No. 9 Junction Connector
      E70-12 (CANL) R
      E70-3 (CANH) LG Combination Meter (MS bus)
      E70-14 (CANL) R
    11. NO. 1 CAN JUNCTION CONNECTOR

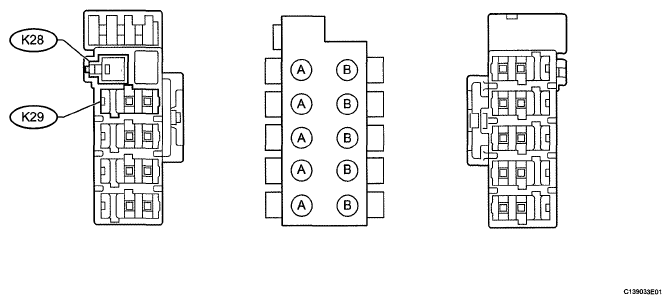

      Fig 11: Identifying No. 1 CAN Junction Connector
      G05639411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONNECTOR TERMINAL WIRING COLOR REFERENCE

      Junction Connector A Side Wiring Color (CANH Side) Wiring Color (CANL Side)
      Ground Terminal (K28) - W-B
      No. 7 junction connector (K29) W L
    12. NO. 2 CAN JUNCTION CONNECTOR

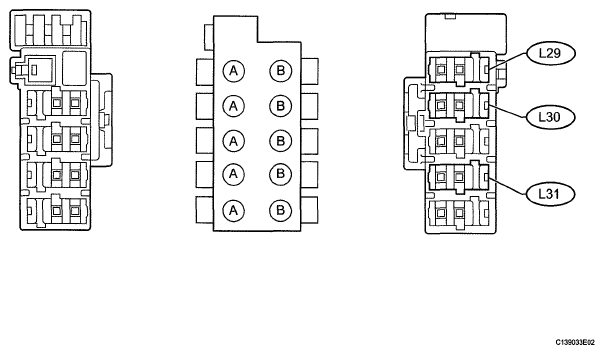

    Fig 12: Identifying No. 2 CAN Junction Connector
    G05639412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Junction Connector B Side Wiring Color (CANH Side) Wiring Color (CANL Side)
    No. 8 junction connector (L29) W R
    No. 9 junction connector (L30) Y R
    Tire pressure warning ECU (L31)* G R

    HINT:

    *: w/Tire Pressure Warning System

  3. TERMINALS OF CONNECTORS FOR JUNCTION CONNECTOR (CAN JUNCTION CONNECTOR)
    CONNECTOR TERMINAL REFERENCE

    Terminal No. Symbol
    1 CANH
    2 CANL
  4. CHECK DLC3
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      Fig 13: Identifying CAN Junction Connector Terminal
      G04953343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value (s) in the table below.
    Fig 14: Identifying DLC3 Connector Terminal
    G05639414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E22-6 (CANH) - E22-14 (CANL) G-B Engine switch off 54 to 69 Ω
    E22-6 (CANH) - E22-4 (CG) G - W-B Engine switch off 200 Ω or higher
    E22-14 (CANL) - E22-4 (CG) B - W-B Engine switch off 200 Ω or higher
    E22-6 (CANH) - E22-16 (BAT) G - O Engine switch off 6 kΩ or higher
    E22-14 (CANL) - E22-16 (BAT) B - O Engine switch off 6 kΩ or higher
  5. CHECK MASTER CYLINDER SOLENOID (SKID CONTROL ECU)

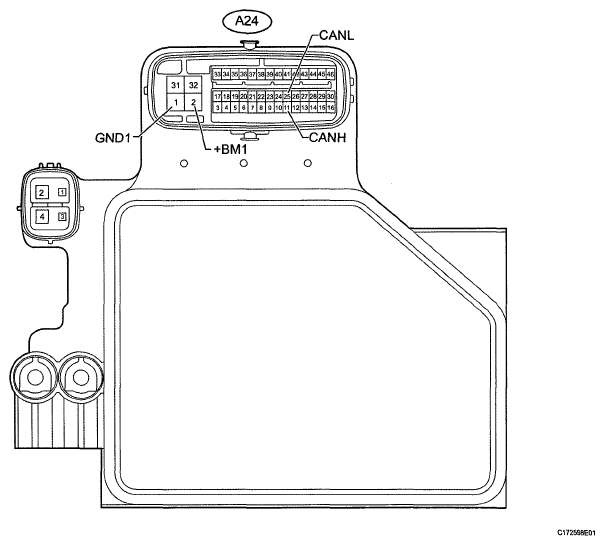

    Fig 15: Identifying A24 Skid Control ECU Connector
    G05639415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A24 ECU connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    A24-11 (CANH) - A24-25 (CANL) V-L Engine switch off 54 to 69 Ω
    A24-11 (CANH) - A24-1 (GND1) V - W-B Engine switch off 200 Ω or higher
    A24-25 (CANL) - A24-1 (GND1) L - W-B Engine switch off 200 Ω or higher
    A24-11 (CANH) - A24-2 (+BM1) V-B Engine switch off 6 kΩ or higher
    A24-25 (CANL) - A24-2 (+BM1) L-B Engine switch off 6 kΩ or higher
  6. CHECK AIR CONDITIONING AMPLIFIER

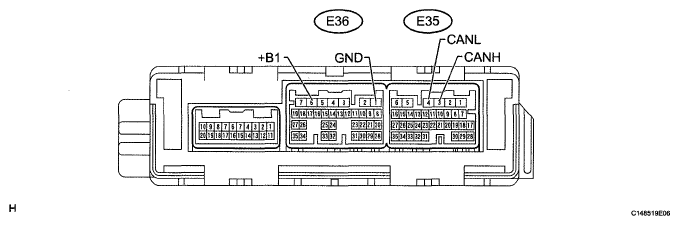

    Fig 16: Identifying E35 & E36 Amplifier Connectors
    G05639416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E35 and E36 amplifier connectors.
    2. Measure the voltage and resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Condition Specified Condition
    E35-3 (CANH) - E35-4 (CANL) G-B Engine switch off 54 to 69 Ω
    E35-3 (CANH) - E36-1 (GND) G - W-B Engine switch off 200 Ω or higher
    E35-4 (CANL) - E36-1 (GND) B - W-B Engine switch off
    E35-3 (CANH) - E36-6 (+B1) G-R Engine switch off 6 kΩ or higher
    E35-4 (CANL) - E36-6 (+B1) B-R Engine switch off
  7. CHECK ECM

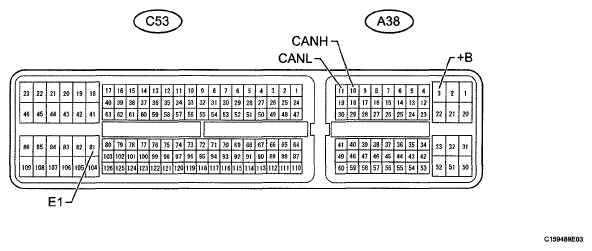

    Fig 17: Identifying A38 & C53 ECM Connectors
    G05639417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A38 and C53 ECM connectors.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    A38-10 (CANH) - A38-11 (CANL) P-B Engine switch off 108 to 132 Ω
    A38-10 (CANH) - C53-81 (E1) P - W-B Engine switch off 200 Ω or higher
    A38-11 (CANL) - C53-81 (E1) B - W-B Engine switch off 200 Ω or higher
    A38-10 (CANH) - A38-3 (+B) P-B Engine switch off 6 kΩ or higher
    A38-11 (CANL) - A38-3 (+B) B-B Engine switch off 6 kΩ or higher
  8. CHECK MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)

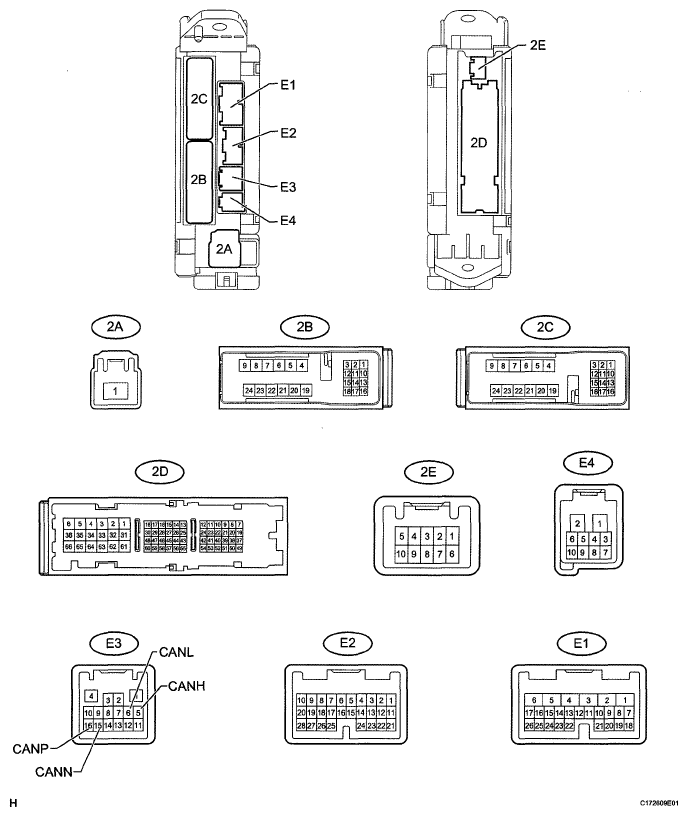

    Fig 18: Identifying Main Body ECU Connectors
    G05639418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E3 ECU connector.
    2. Disconnect the 2A and 2D junction connectors.
    3. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E3-5 (CANH) - E3-6 (CANL)*1 SB-B Engine switch off 54 to 69 Ω
    E3-5 (CANH) - 2D-62 (GND2)*1 SB - W-B Engine switch off 200 Ω or higher
    E3-6 (CANL) - 2D-62 (GND2)*1 B - W-B Engine switch off 200 Ω or higher
    E3-5 (CANH) - 2A-1 (ALTB)*1 SB-B Engine switch off 6 kΩ or higher
    E3-6 (CANL) - 2A-1 (ALTB)*1 B-B Engine switch off 6 kΩ or higher
    E3-16 (CANP) - E3-15 (CANN)*2 GR-R Engine switch off 108 to 132 Ω
    E3-16 (CANP) - 2D-62 (GND2)*2 GR - W-B Engine switch off 200 Ω or higher
    E3-15 (CANN) - 2D-62 (GND2)*2 R - W-B Engine switch off 200 Ω or higher
    E3-16 (CANP) - 2A-1 (ALTB)*2 GR-B Engine switch off 6 kΩ or higher
    E3-15 (CANN) - 2A-1 (ALTB)*2 R-B Engine switch off 6 kΩ or higher
    HINT:
    *1: For V bus
    *2: For MS bus
  9. CHECK COMBINATION METER

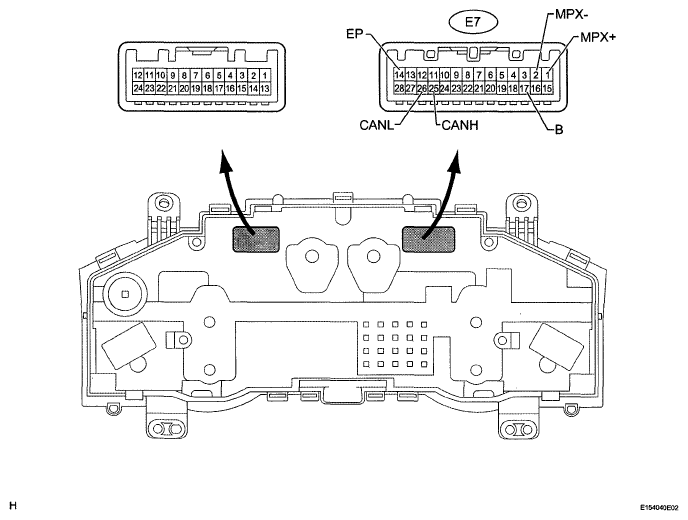

    Fig 19: Identifying E7 Combination Meter Connector
    G05639419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E7 meter connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E7-25 (CANH) - E7-26 (CANL)*1 V-B Engine switch off 108 to 132 Ω
    E7-25 (CANH) - E7-14 (EP)*1 V - W-B Engine switch off 200 Ω or higher
    E7-26 (CANL) - E7-14 (EP)*1 B - W-B Engine switch off 200 Ω or higher
    E7-25 (CANH) - E7-17 (B)*1 V-R Engine switch off 6 kΩ or higher
    E7-26 (CANL) - E7-17 (B)*1 B-R Engine switch off 6 kΩ or higher
    E7-1 (MPX+) - E7-2 (MPX-)*2 R-LG Engine switch off 108 to 132 Ω
    E7-1 (MPX+) - E7-14 (EP)*2 R - W-B Engine switch off 200 Ω or higher
    E7-2 (MPX-) - E7-14 (EP)*2 LG - W-B Engine switch off 200 Ω or higher
    E7-1 (MPX+) - E7-17 (B)*2 R-R Engine switch off 6 kΩ or higher
    E7-2 (MPX-) - E7-17 (B)*2 LG-R Engine switch off 6 kΩ or higher
    HINT:
    *1: For V bus
    *2: For MS bus
  10. CHECK CENTER AIRBAG SENSOR

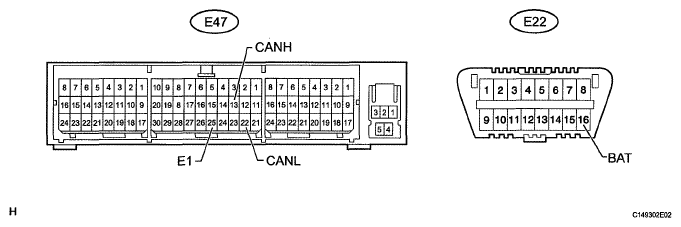

    Fig 20: Identifying Center Airbag Sensor Connector Terminal
    G05639420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E47 sensor connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E47-13 (CANH) - E47-22 (CANL) GR-B Engine switch off 54 to 69 Ω
    E47-13 (CANH) - E47-25 (E1) GR - W-B Engine switch off 200 Ω or higher
    E47-22 (CANL) - E47-25 (E1) B - W-B Engine switch off 200 Ω or higher
    E47-13 (CANH) - E22-16 (BAT) GR-O Engine switch off 6 kΩ or higher
    E47-22 (CANL) - E22-16 (BAT) B-O Engine switch off 6 kΩ or higher
  11. CHECK MULTI-DISPLAY

    HINT:

    For vehicles with the navigation system only.

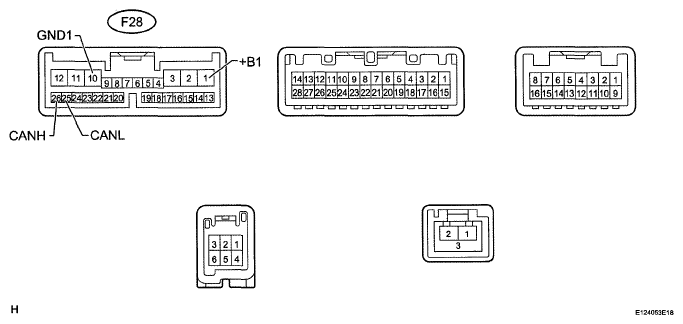

    Fig 21: Identifying F28 Multi-Display Connectors
    G05639421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F28 multi-display connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No.(Symbol) Wiring Color Switch Condition Specified Condition
    F28-26 (CANH) - F28-25 (CANL) P-B Engine switch off 54 to 69 Ω
    F28-26 (CANH) - F28-10 (GND1) P - W-B Engine switch off 200 Ω or higher
    F28-25 (CANL) - F28-10 (GND1) B - W-B Engine switch off 200 Ω or higher
    F28-26 (CANH) - F28-1 (+B1) P-R Engine switch off 6 kΩ or higher
    F28-25 (CANL) - F28-1 (+B1) B-R Engine switch off 6 kΩ or higher
  12. CHECK STEERING ANGLE SENSOR
    Fig 22: Identifying Steering Angle Sensor Connector Terminal
    G05639422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E11 sensor connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E11-10 (CANH) - E11-9 (CANL) GR-L Engine switch off 54 to 69 Ω
    E11-10 (CANH) - E11-2 (ESS) GR - W-B Engine switch off 200 Ω or higher
    E11-9 (CANL) - E11-2 (ESS) L - W-B Engine switch off 200 Ω or higher
    E11-10 (CANH) - E22-16 (BAT) GR - O Engine switch off 6 kΩ or higher
    E11-9 (CANL) - E22-16 (BAT) L - O Engine switch off 6 kΩ or higher
  13. CHECK YAW RATE SENSOR
    Fig 23: Identifying Yaw Rate Sensor Connector Terminal
    G05639423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E50 sensor connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E50-3 (CANH) - E50-2 (CANL) BR-L Engine switch off 54 to 69 Ω
    E50-3 (CANH) - E50-1 (GND) BR - W-B Engine switch off 200 Ω or higher
    E50-2 (CANL) - E50-1 (GND) L - W-B Engine switch off 200 Ω or higher
    E50-3 (CANH) - E22-16 (BAT) BR - O Engine switch off 6 kΩ or higher
    E50-2 (CANL) - E22-16 (BAT) L - O Engine switch off 6 kΩ or higher
  14. CHECK SEAT BELT CONTROL ECU

    HINT:

    For vehicles with the pre-collision system only.

    Fig 24: Identifying E41 & E42 ECU Connectors
    G05639424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E41 and E42 ECU connectors.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E42-1 (CANH) - E42-2 (CANL) G-L Engine switch off 54 to 69 Ω
    E42-1 (CANH) - E41-8 (PGND) G - W-B Engine switch off 200 Ω or higher
    E42-2 (CANL) - E41-8 (PGND) L - W-B Engine switch off 200 Ω or higher
    E42-1 (CANH) - E41-7 (+B) G-R Engine switch off 6 kΩ or higher
    E42-2 (CANL) - E41-7 (+B) L-R Engine switch off 6 kΩ or higher
  15. CHECK CLEARANCE WARNING ECU

    HINT:

    For vehicles with the intuitive parking assist system only.

    Fig 25: Identifying Clearance Warning ECU Connector Terminal
    G05639425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F12 ECU connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    F12-3 (CANH) - F12-5 (CANL) V - L Engine switch off 54 to 69 Ω
    F12-3 (CANH) - F12-17 (GND1) V - W-B Engine switch off 200 Ω or higher
    F12-5 (CANL) - F12-17 (GND1) L - W-B Engine switch off 200 Ω or higher
    F12-3 (CANH) - E22-16 (BAT) V - O Engine switch off 6 kΩ or higher
    F12-5 (CANL) - E22-16 (BAT) L - O Engine switch off 6 kΩ or higher
  16. CHECK OUTER MIRROR CONTROL ECU
    Fig 26: Identifying Outer Mirror Control ECU Connector Terminal
    G05639426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the I17 and I18 ECU connectors.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    I18-1 (CANH) - I18-21 (CANL) BR-R Engine switch off 54 to 69 Ω
    I18-1 (CANH) - I17-9 (GND) BR - W-B Engine switch off 200 Ω or higher
    I18-21 (CANL) - I17-9 (GND) R - W-B Engine switch off 200 Ω or higher
    I18-1 (CANH) - I17-3 (B) BR-R Engine switch off 6 kΩ or higher
    I18-21 (CANL) - I17-3 (B) R-R Engine switch off 6 kΩ or higher
  17. CHECK MULTIPLEX TILT AND TELESCOPIC ECU
    Fig 27: Identifying Multiplex Tilt & Telescopic ECU Connector Terminal
    G05639427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E27 ECU connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E27-5 (CANP) - E27-14 (CANN) P-R Engine switch off 54 to 69 Ω
    E27-5 (CANP) - E27-11 (GND) P - W-B Engine switch off 200 Ω or higher
    E27-14 (CANN) - E27-11 (GND) R - W-B Engine switch off 200 Ω or higher
    E27-5 (CANP) - E27-2 (+B) P-L Engine switch off 6 kΩ or higher
    E27-14 (CANN) - E27-2 (+B) R-L Engine switch off 6 kΩ or higher
  18. CHECK CERTIFICATION ECU (SMART KEY ECU)
    Fig 28: Identifying Certification ECU Connector Terminal
    G05639428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E29 ECU connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E29-27 (CANH) - E29-28 (CANL) LG-R Engine switch off 54 to 69 Ω
    E29-27 (CANH) - E29-17 (E) LG - W-B Engine switch off 200 Ω or higher
    E29-28 (CANL) - E29-17 (E) R - W-B Engine switch off 200 Ω or higher
    E29-27 (CANH) - E29-1 (+B) LG-B Engine switch off 6 kΩ or higher
    E29-28 (CANL) - E29-1 (+B) R-B Engine switch off 6 kΩ or higher
  19. CHECK POSITION CONTROL ECU AND SWITCH
    Fig 29: Identifying Position Control ECU & Switch Connector Terminal
    G05639429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the c14 and c15 ECU connectors.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    c15-5 (MPX1) - c15-1 (MPX2) V-R Engine switch off 54 to 69 Ω
    c15-5 (MPX1) - c14-1 (GND) V - W-B Engine switch off 200 Ω or higher
    C15-1 (MPX2) - c14-1 (GND) R - W-B Engine switch off 200 Ω or higher
    c15-5 (MPX1) - c14-5 (+B) V-L Engine switch off 6 kΩ or higher
    c15-1 (MPX2) - c14-5 (+B) R-L Engine switch off 6 kΩ or higher
  20. CHECK TIRE PRESSURE WARNING ECU

    HINT:

    For vehicles with the tire pressure warning system only.

    Fig 30: Identifying Tire Pressure Warning ECU Connector Terminal
    G05639430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L10 connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    L10-6 (CANP) - L10-12 (CANN) G - R Engine switch off 54 to 69 Ω
    L10-6 (CANP) - L10-7 (GND) G - W-B Engine switch off 200 Ω or higher
    L10-12 (CANN) - L10-7 (GND) R - W-B Engine switch off 200 Ω or higher
    L10-6 (CANP) - E22-16 (BAT) G - O Engine switch off 6 kΩ or higher
    L10-12 (CANN) - E22-16 (BAT) R - O Engine switch off 6 kΩ or higher
  21. CHECK 4WD CONTROL ECU
    Fig 31: Identifying A27 & A28 ECU Connector Terminal
    G05639431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A27 and A28 ECU connectors.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    A27-19 (CAN+) - A27-20 (CAN-) P - L Engine switch off 54 to 69 Ω
    A27-19 (CAN+) - A28-4 (GND) P - W Engine switch off 200 Ω or higher
    A27-20 (CAN-) - A28-4 (GND) L - W Engine switch off 200 Ω or higher
    A27-19 (CAN+) - E22-16 (BAT) P - O Engine switch off 6 kΩ or higher
    A27-20 (CAN-) - E22-16 (BAT) L - O Engine switch off 6 kΩ or higher
  22. CHECK NETWORK GATEWAY ECU
    Fig 32: Identifying Network Gateway ECU Connector Terminal
    G05639432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E31 ECU connector.
    2. Measure the resistance according to the value (s) in the table below.
    CONNECTOR TERMINAL WIRING COLOR REFERENCE

    Terminal No. (Symbol) Wiring Color Switch Condition Specified Condition
    E31-16 (CA1H) - E31-15 (CA1L)*1 BR - B Engine switch off 54 to 69 Ω
    E31-16 (CA1H) - E31-4 (GND)*1 BR - W-B Engine switch off 200 Ω or higher
    E31-15 (CA1L) - E31-4 (GND)*1 B - W-B Engine switch off 200 Ω or higher
    E31-16 (CA1H) - E31-2 (BATT)*1 BR-R Engine switch off 6 kΩ or higher
    E31-15 (CA1L) - E31-2 (BATT)*1 B-R Engine switch off 6 kΩ or higher
    E31-13 (CA2H) - E31-12 (CA2L)*2 SB-L Engine switch off 108 to 132 Ω
    E31-13 (CA2H) - E31-4 (GND)*2 SB - W-B Engine switch off 200 Ω or higher
    E31-12 (CA2L) - E31-4 (GND)*2 L - W-B Engine switch off 200 Ω or higher
    E31-13 (CA2H) - E31-2 (BATT)*2 SB - R Engine switch off 6 kΩ or higher
    E31-12 (CA2L) - E31-2 (BATT)*2 L - R Engine switch off 6 kΩ or higher
    HINT:
    *1: For V bus
    *2: For movement control bus
About FixVault
