System Diagram

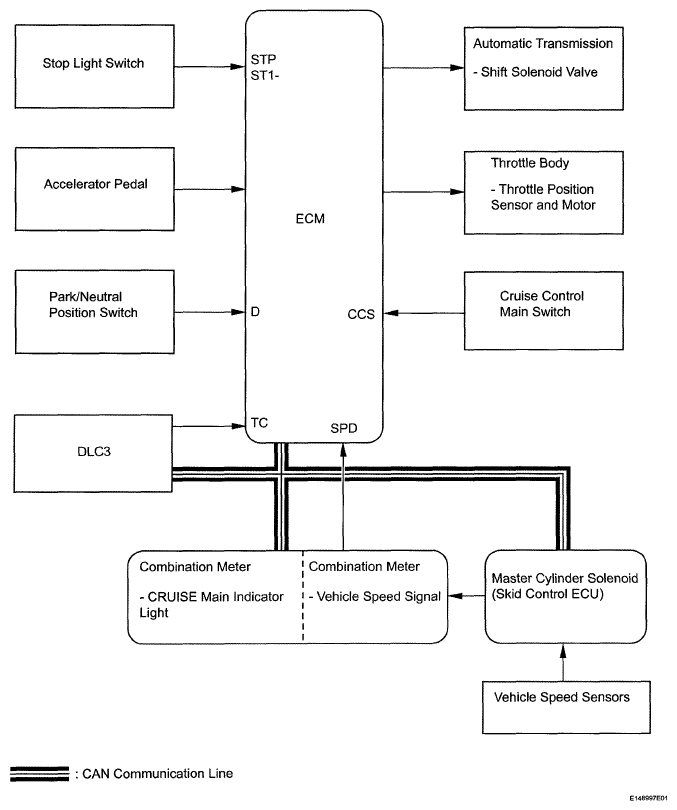

Fig 1: Cruise Control System Diagram

G05638354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION LINE REFERENCE

Transmitter	Receiver	Signal	Communication Line
ECM	Combination Meter	CRUISE main indicator operation signal	CAN
