Roof Headlining: Components

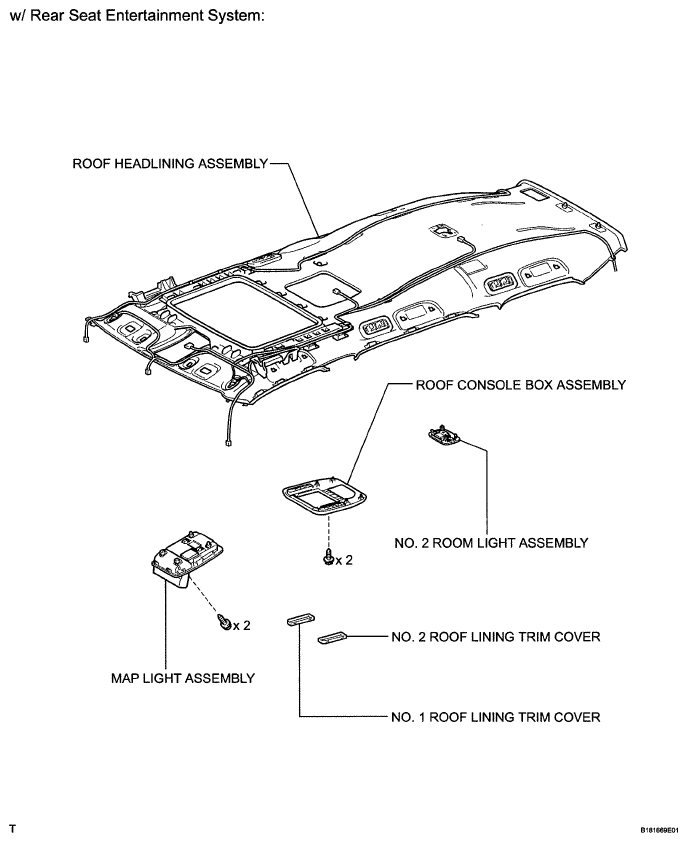

Fig 1: Identifying Roof Headlining Replacement Components With Torque Specifications (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

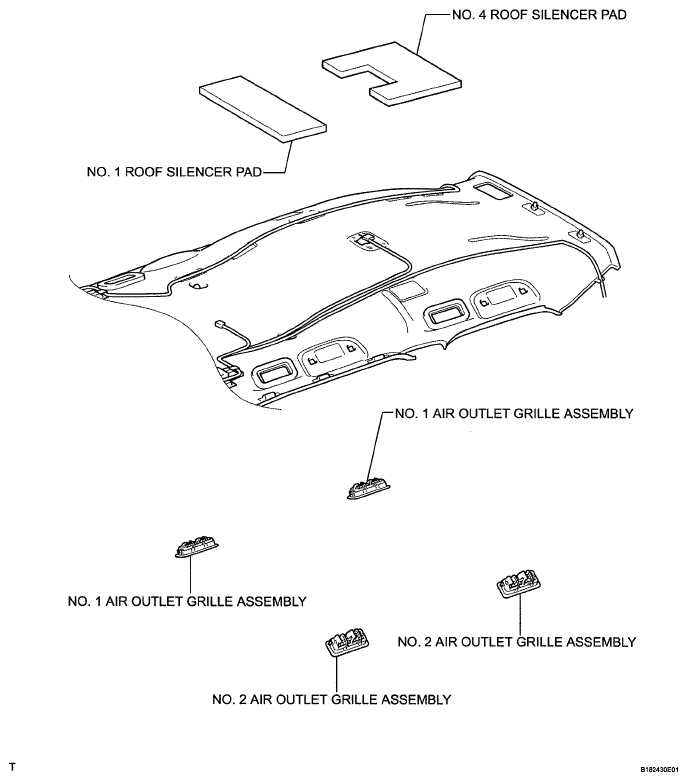

Fig 2: Identifying Roof Headlining Replacement Components With Torque Specifications (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

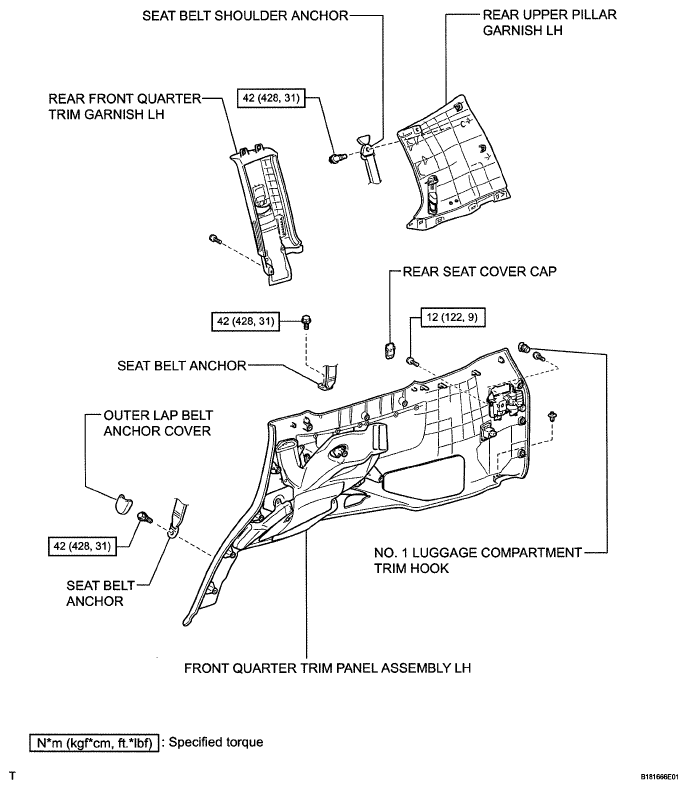

Fig 3: Identifying Roof Headlining Replacement Components With Torque Specifications (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

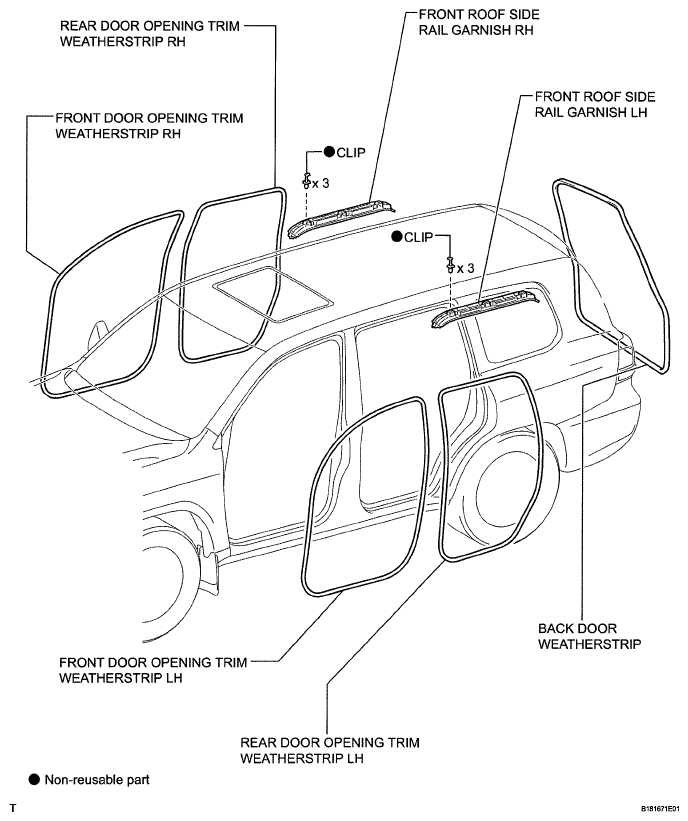

Fig 4: Identifying Roof Headlining Replacement Components With Torque Specifications (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

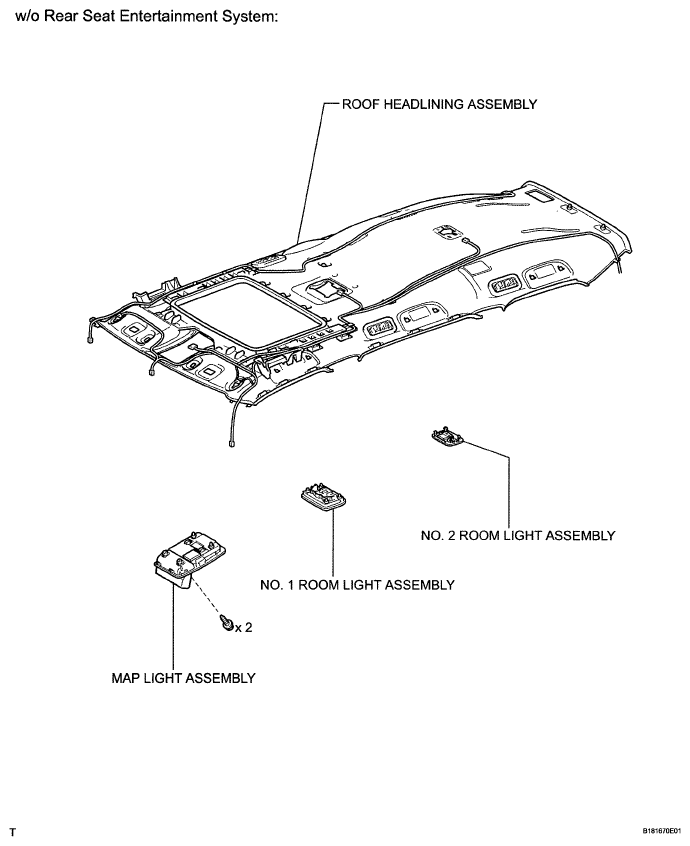

Fig 5: Identifying Roof Headlining Replacement Components With Torque Specifications (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

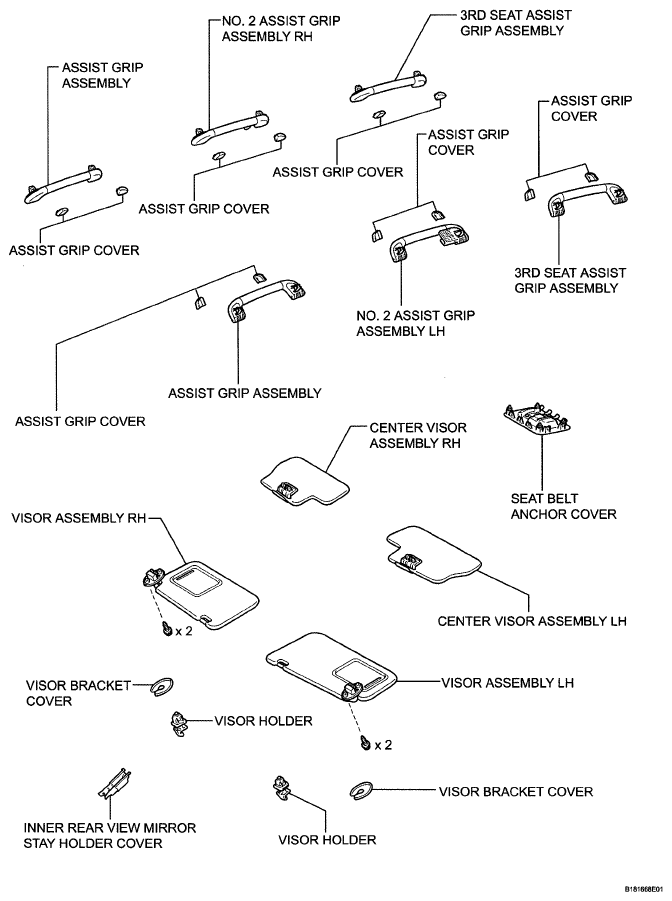

Fig 6: Identifying Roof Headlining Replacement Components With Torque Specifications (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

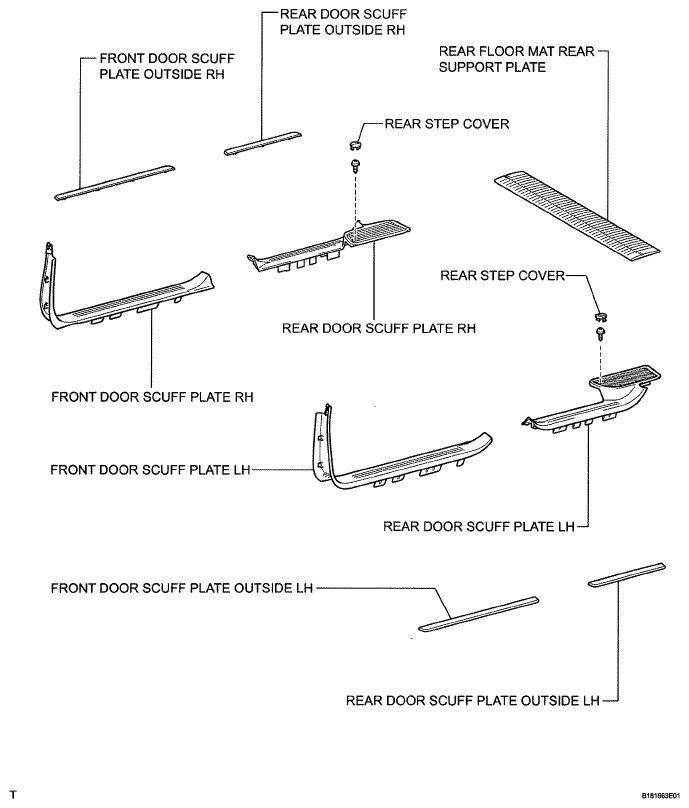

Fig 7: Identifying Roof Headlining Replacement Components With Torque Specifications (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

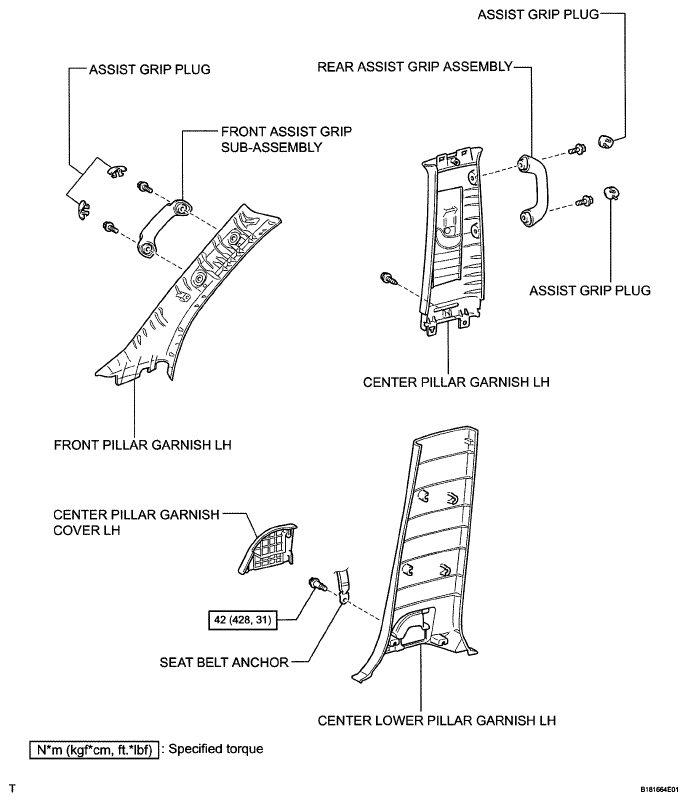

Fig 8: Identifying Roof Headlining Replacement Components With Torque Specifications (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Roof Headlining Replacement Components With Torque Specifications (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Roof Headlining Replacement Components With Torque Specifications (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Roof Headlining Replacement Components With Torque Specifications (11 Of 16)

Fig 12: Identifying Roof Headlining Replacement Components With Torque Specifications (12 Of 16)

Fig 13: Identifying Roof Headlining Replacement Components With Torque Specifications (13 Of 16)

Fig 14: Identifying Roof Headlining Replacement Components With Torque Specifications (14 Of 16)

Fig 15: Identifying Roof Headlining Replacement Components With Torque Specifications (15 Of 16)

Fig 16: Identifying Roof Headlining Replacement Components With Torque Specifications (16 Of 16)
