DTC B2312 Power Window Switch Malfunction: Wiring Diagram

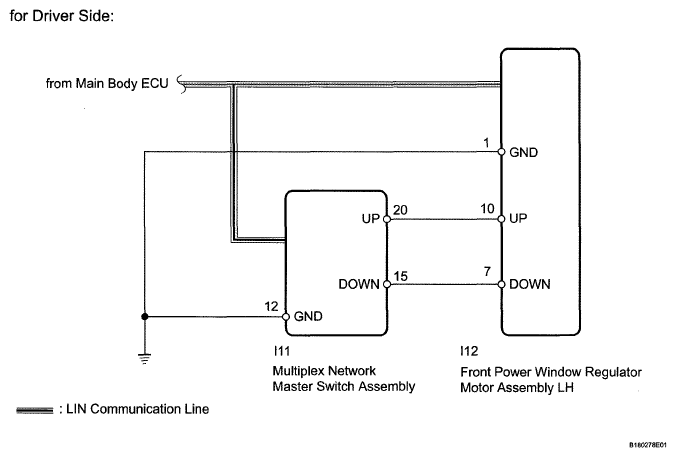

Fig 1: Wiring Diagram For Driver Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Wiring Diagram For Front Passenger Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Wiring Diagram For Rear LH Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

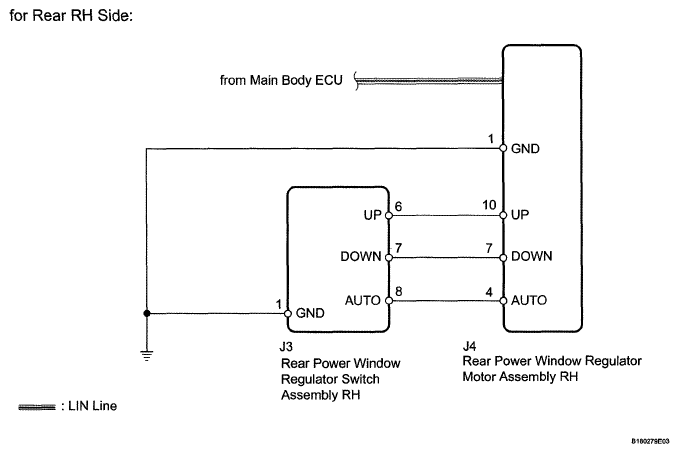

Fig 4: Wiring Diagram For Rear RH Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
