Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

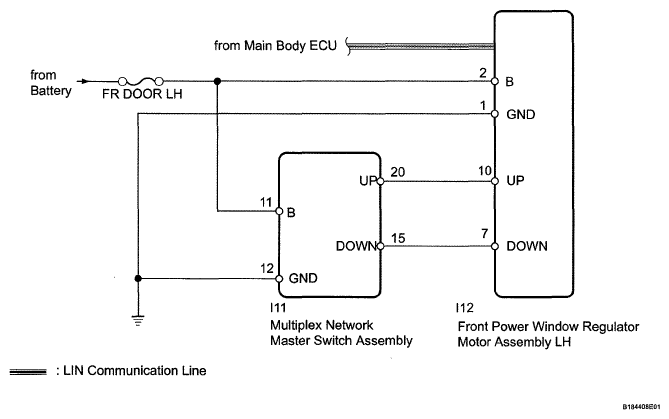

Fig 1: Front Power Window Regulator Motor & Master Switch - Wiring Diagram
G05636312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
