Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

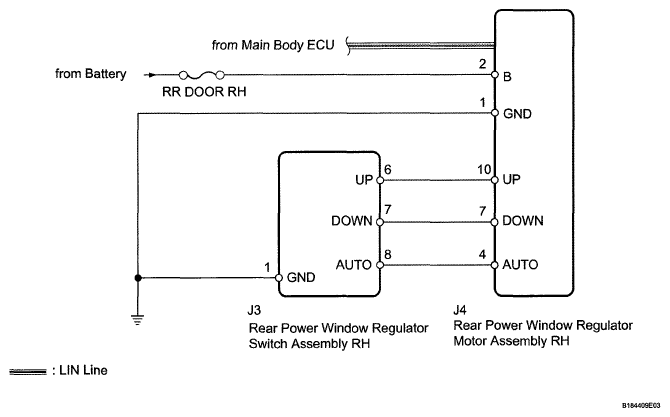

Fig 1: Rear Power Window Regulator Motor & Rear Power Window Regulator Switch - Wiring Diagram
G05636327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
