VSC OFF Indicator Light does not Come ON
›
Wiring Diagram
VSC OFF Indicator Light does not Come ON: Wiring Diagram

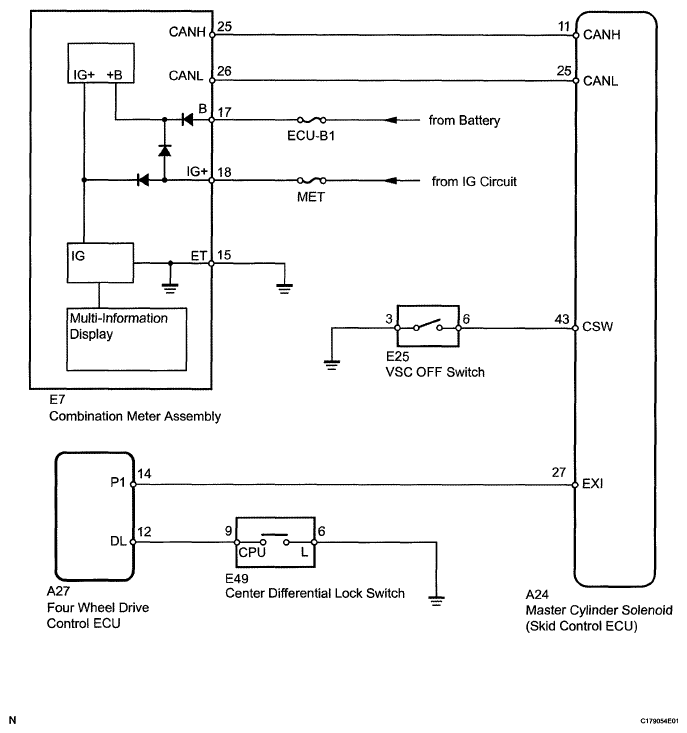

Fig 1: VSC OFF Indicator Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
