Clock without Multi-Display
›
Notes
Clock without Multi-Display: Notes

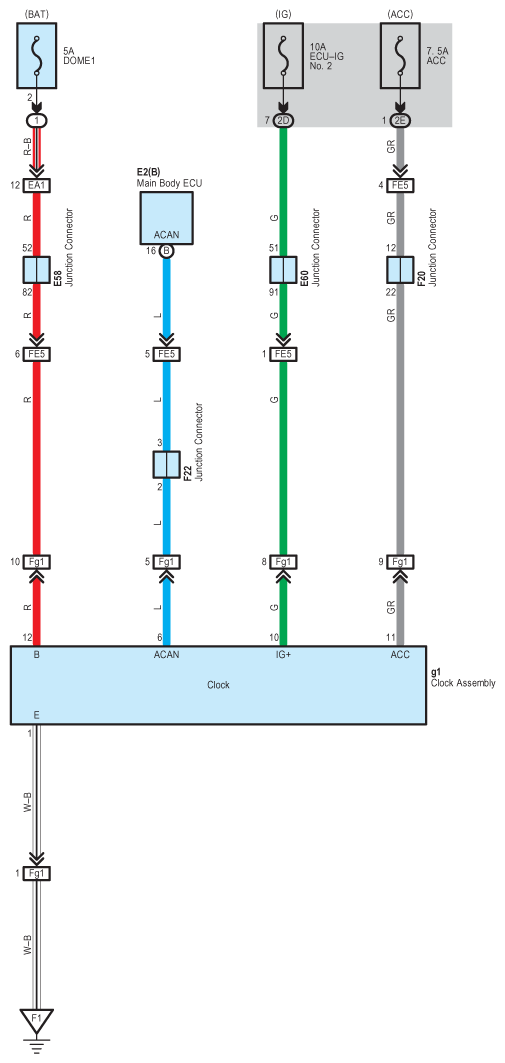

Fig 1: Clock Without Multi-Display - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
