Parking Assist System (Intuitive Parking Assist): Notes

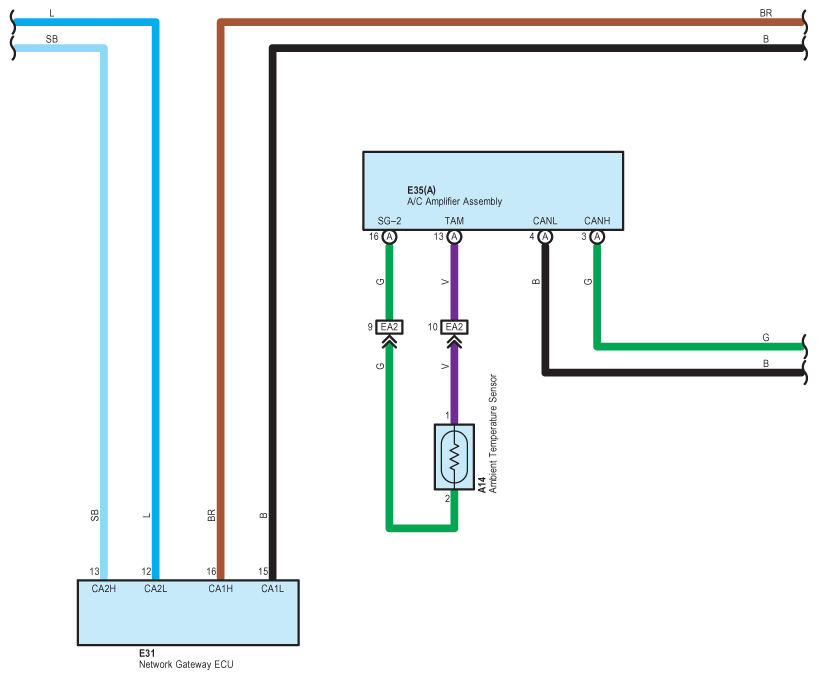

Fig 1: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

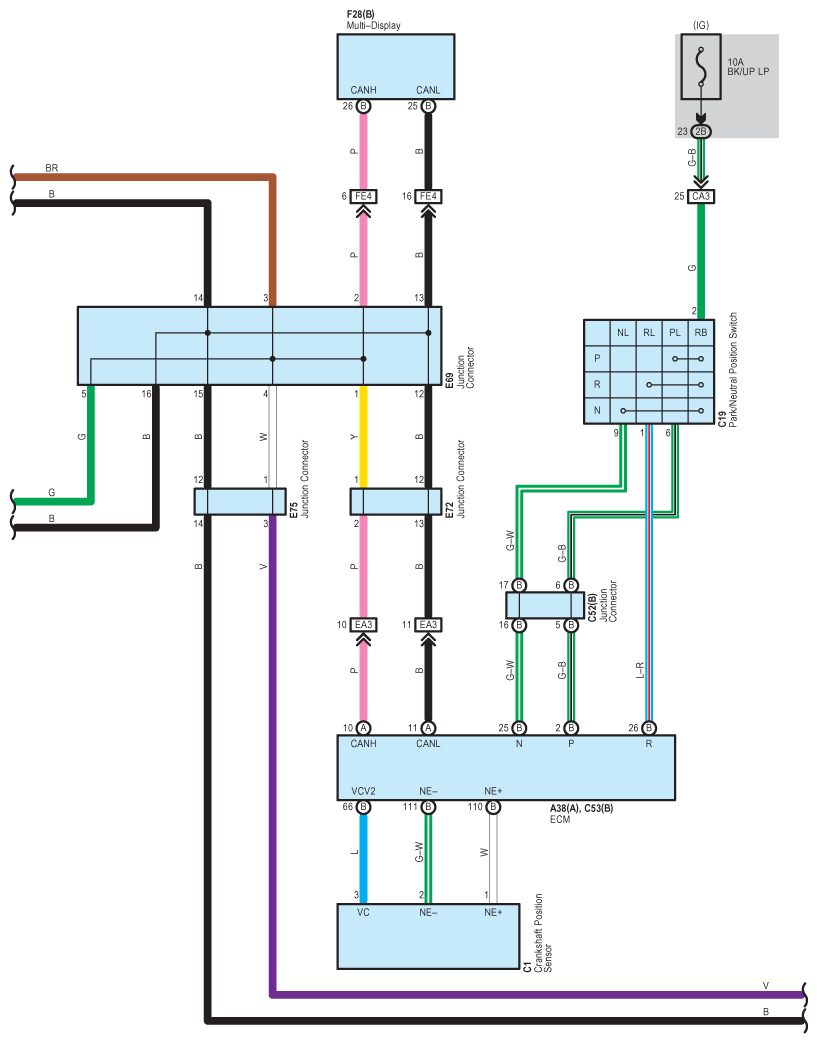

Fig 2: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

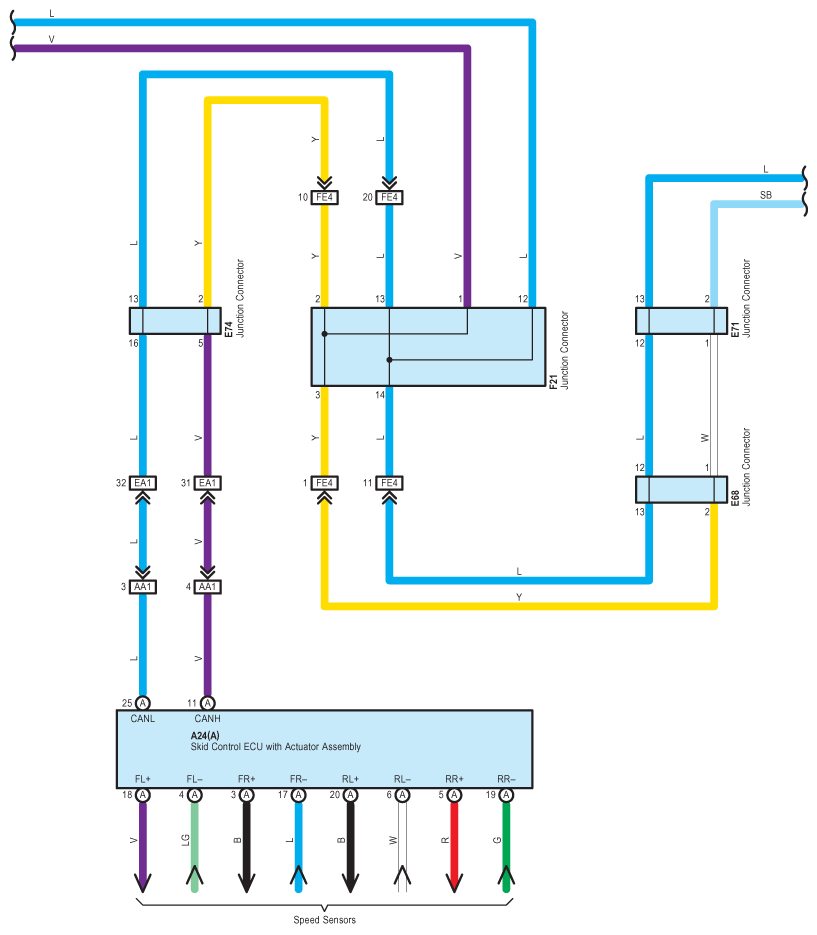

Fig 3: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

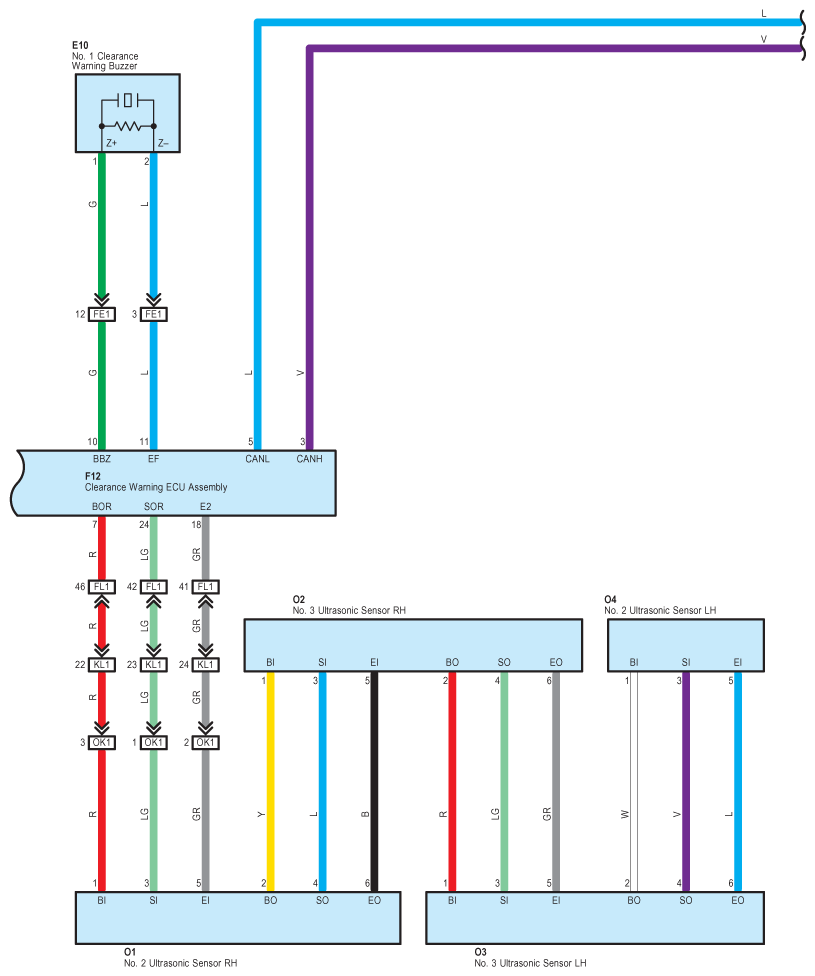

Fig 4: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (4 Of 6)

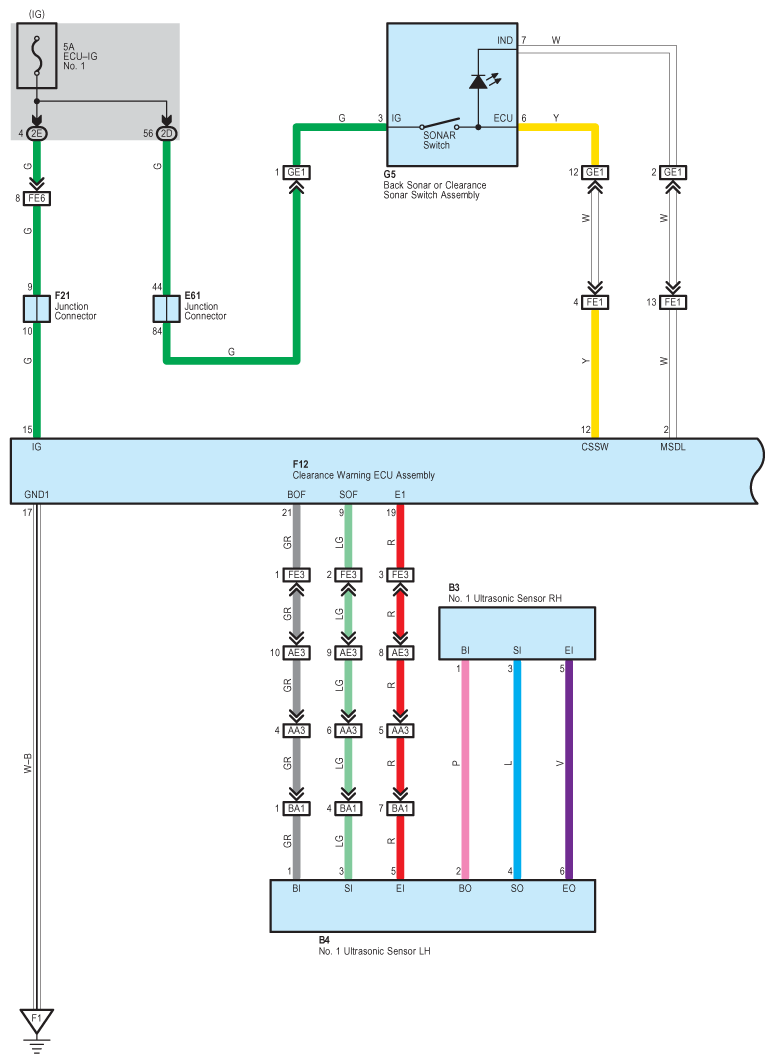

Fig 5: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (5 Of 6)

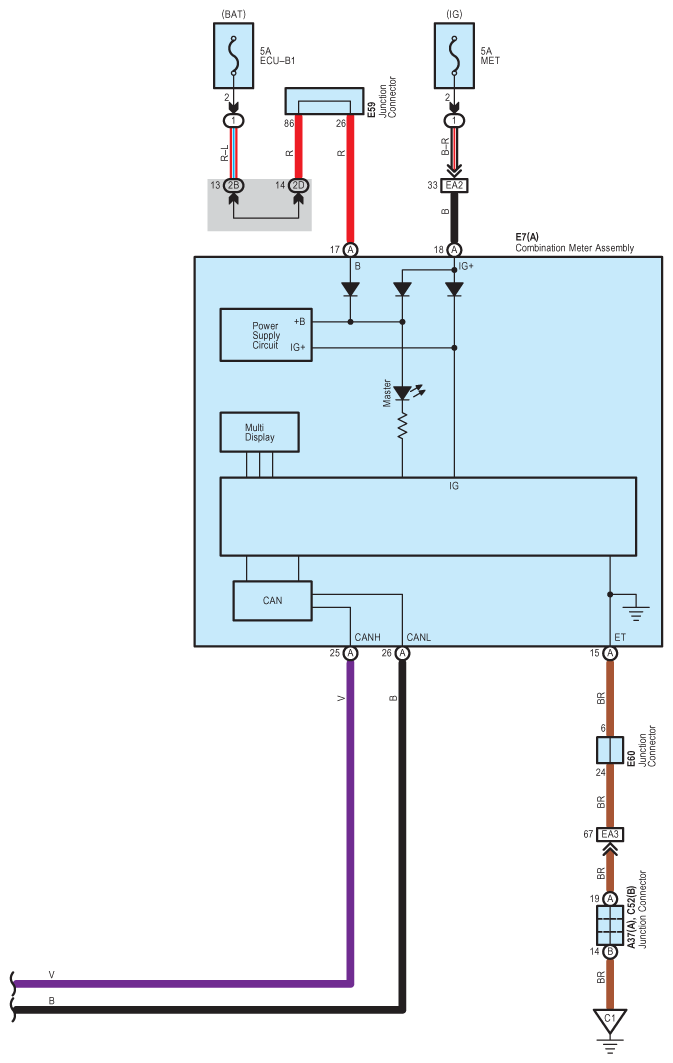

Fig 6: Parking Assist (Intuitive Parking Assist) - Circuit Diagram (6 Of 6)
