Rear Window Defogger and Mirror Heater System
›
Notes
Rear Window Defogger and Mirror Heater System: Notes

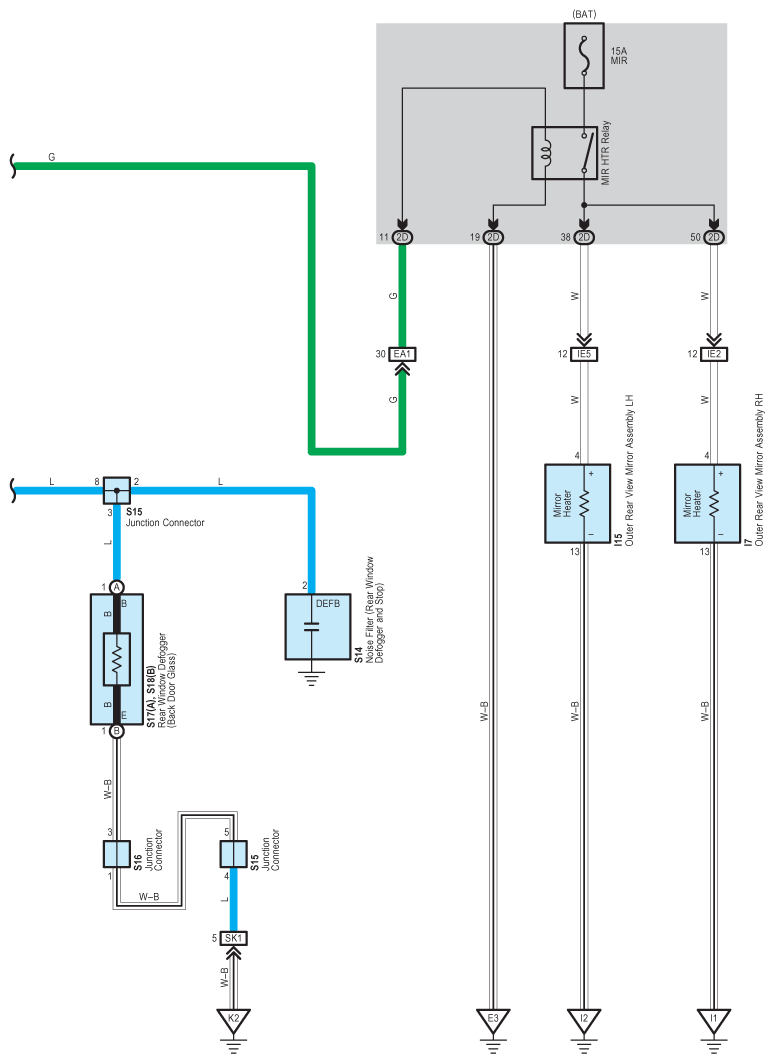

Fig 1: Rear Window Defogger And Mirror Heater - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

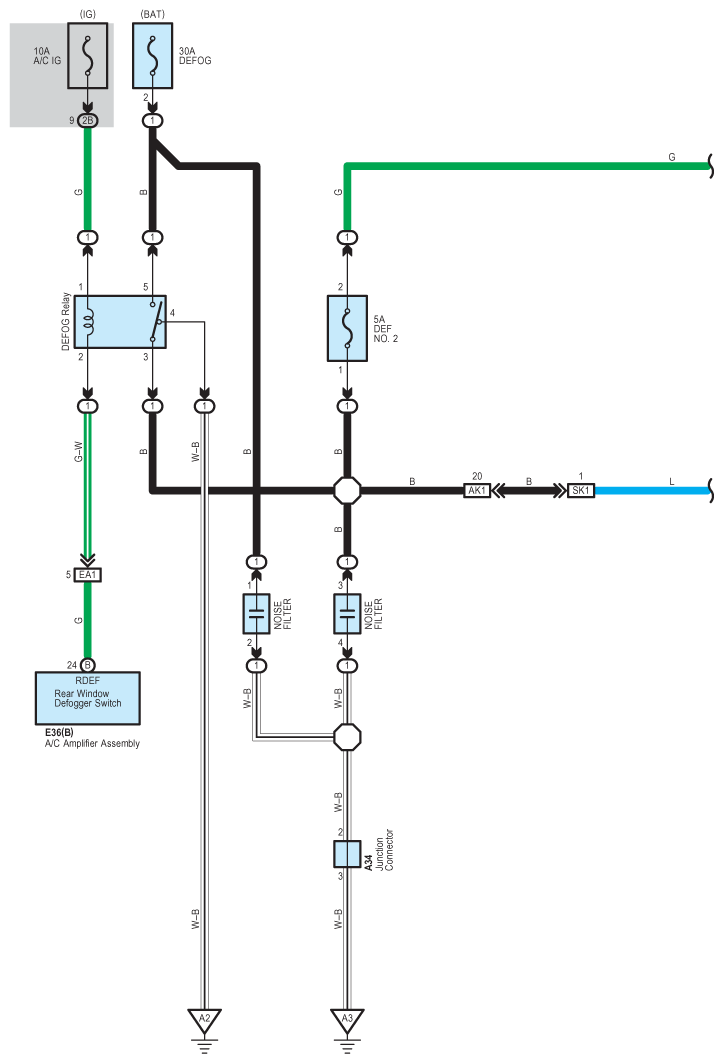

Fig 2: Rear Window Defogger And Mirror Heater - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
