Duct Temperature Sensor: Installation

  1. INSTALL COOLER THERMISTOR
    1. Attach the 4 claws to install the 2 sensors.

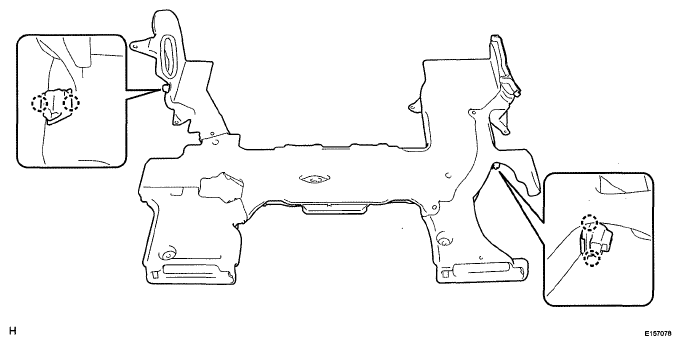

      Fig 1: Identifying Duct Temperature Sensor
      G05635808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR NO. 6 AIR DUCT
    1. Install the duct with the 5 screws.
    2. Connect the 2 connectors.
      Fig 2: Identifying Rear No. 6 Air Duct Screws
      G05635811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT FLOOR CARPET ASSEMBLY
    1. Install the floor carpet.
  4. INSTALL REAR NO. 1 SEAT PROTECTOR  (See INSTALLATION )
  5. INSTALL REAR NO. 2 SEAT PROTECTOR  (See INSTALLATION )
  6. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH  (See INSTALLATION )
  7. INSTALL REAR SEAT COVER CAP  (See INSTALLATION )
  8. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH  (See INSTALLATION )
  9. INSTALL REAR SEAT COVER CAP  (See INSTALLATION )
  10. INSTALL REAR FLOOR MAT SUPPORT PLATE REAR  (See INSTALLATION )
  11. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
  12. INSTALL REAR DOOR SCUFF PLATE RH  (See INSTALLATION )
  13. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
    1. Install the rear No. 2 seat assembly (See INSTALLATION ).
  14. INSTALL REAR NO. 2 SEAT ASSEMBLY RH
    1. Install the rear No. 2 seat assembly (See INSTALLATION ).
  15. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
    1. Install the rear No. 1 seat assembly (See INSTALLATION ).
  16. INSTALL REAR NO. 1 SEAT ASSEMBLY RH
    1. Install the rear No. 1 seat assembly (See INSTALLATION ).
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  18. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See CHECK MODE PROCEDURE ).
