DTC P0571 Stop Light Switch Circuit Malfunction
›
Wiring Diagram
DTC P0571 Stop Light Switch Circuit Malfunction: Wiring Diagram

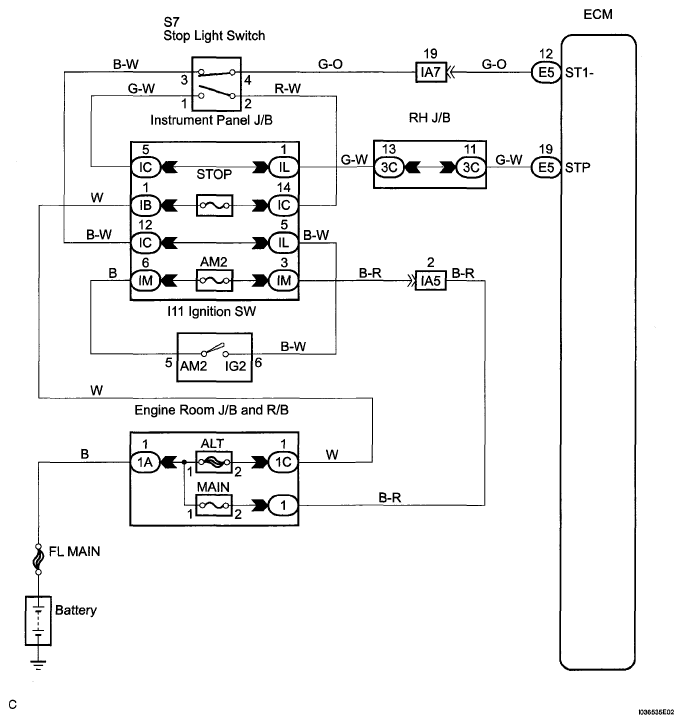

Fig 1: Stop Light Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
