Air Conditioning System: Notes

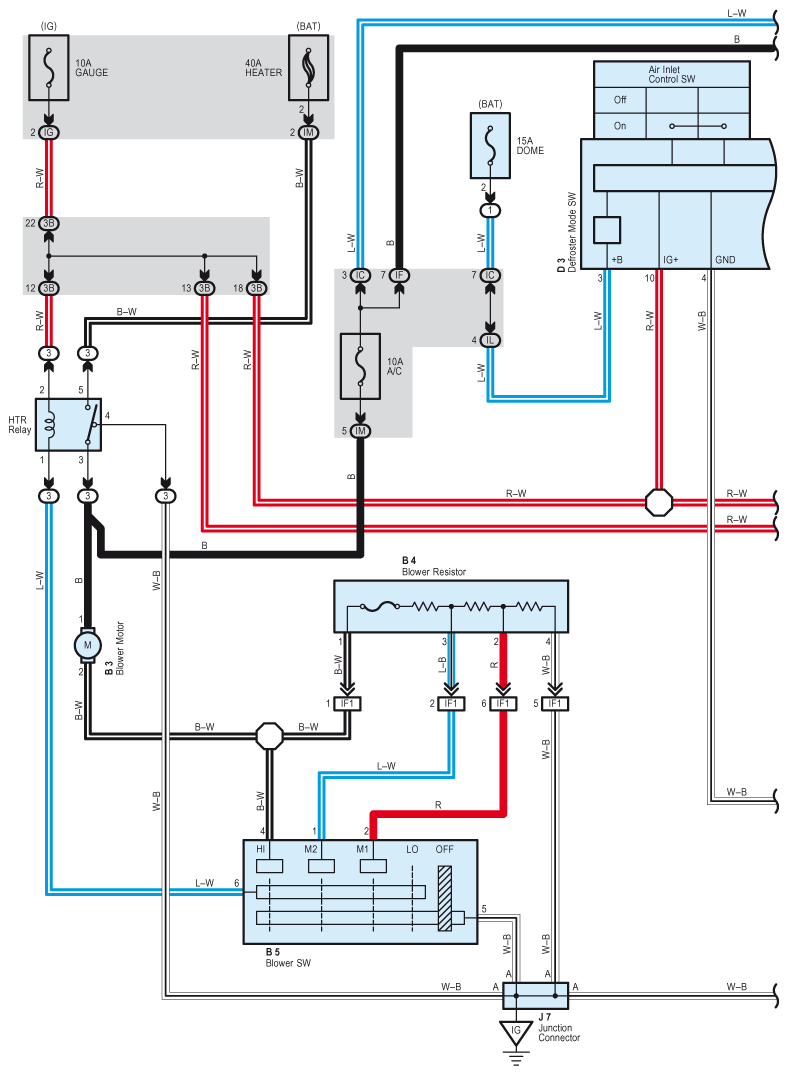

Fig 1: Air Conditioning - Circuit Diagram (1 Of 3)
G07599234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

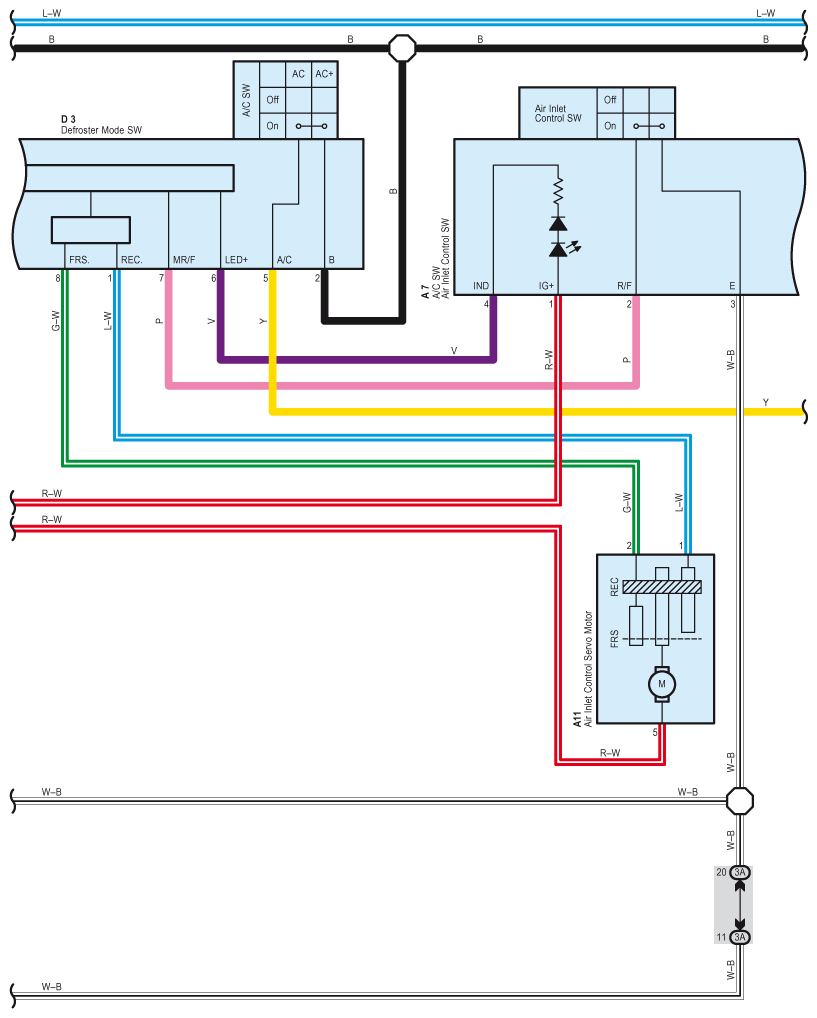

Fig 2: Air Conditioning - Circuit Diagram (2 Of 3)
G07599235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

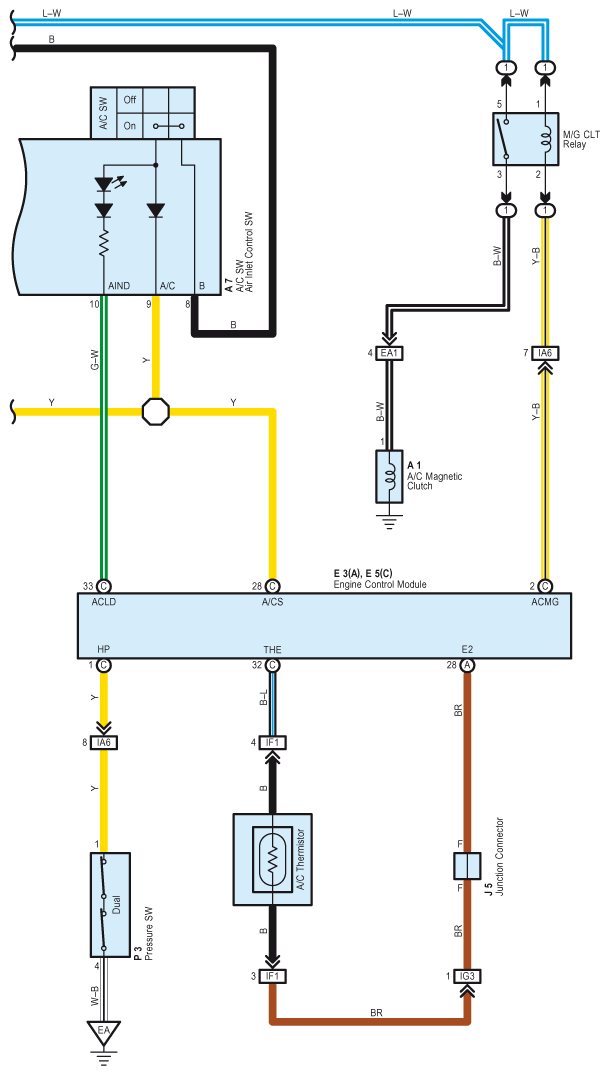

Fig 3: Air Conditioning - Circuit Diagram (3 Of 3)
G07599236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
