Charging System: Notes

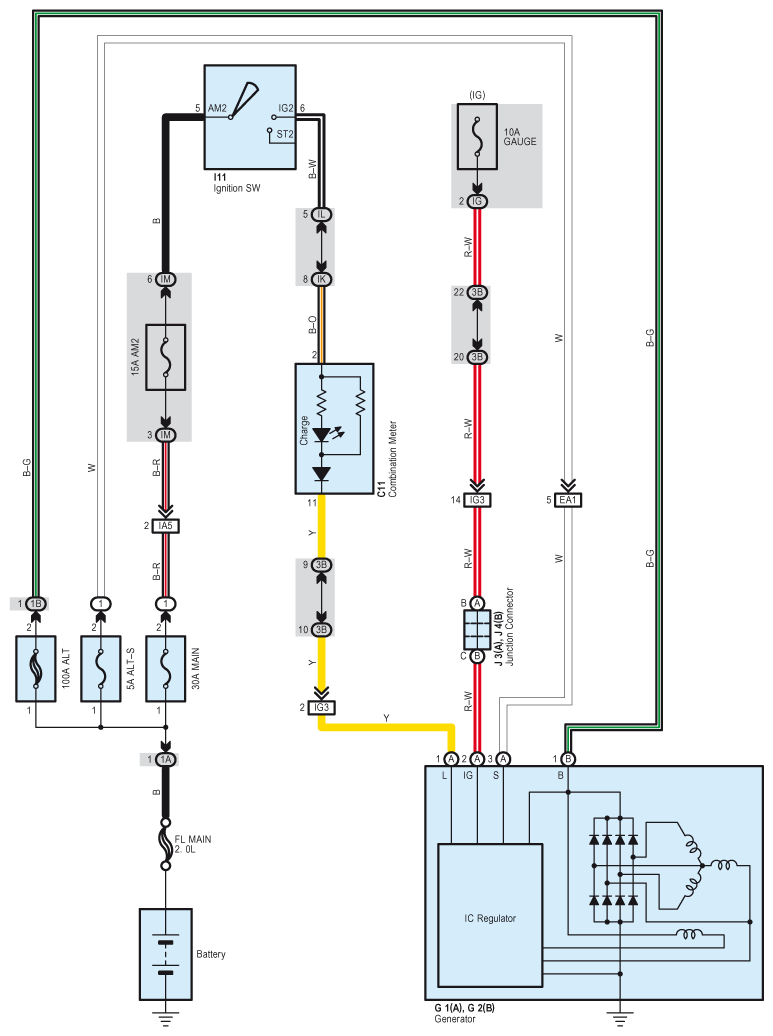

Fig 1: Charging - Circuit Diagram
G07599144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
