Ignition System: Notes

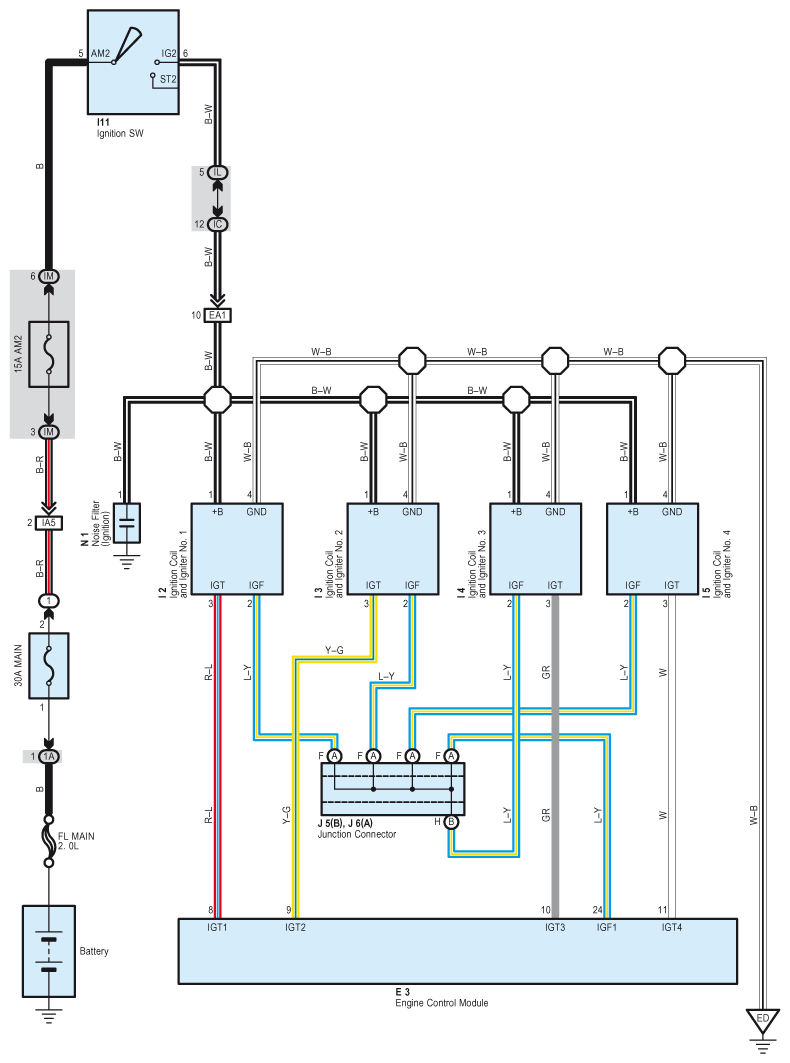

Fig 1: Ignition - Circuit Diagram
G07599143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
