Matrix Base, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Key Reminder and Light Reminder System
›
Notes
Key Reminder and Light Reminder System: Notes

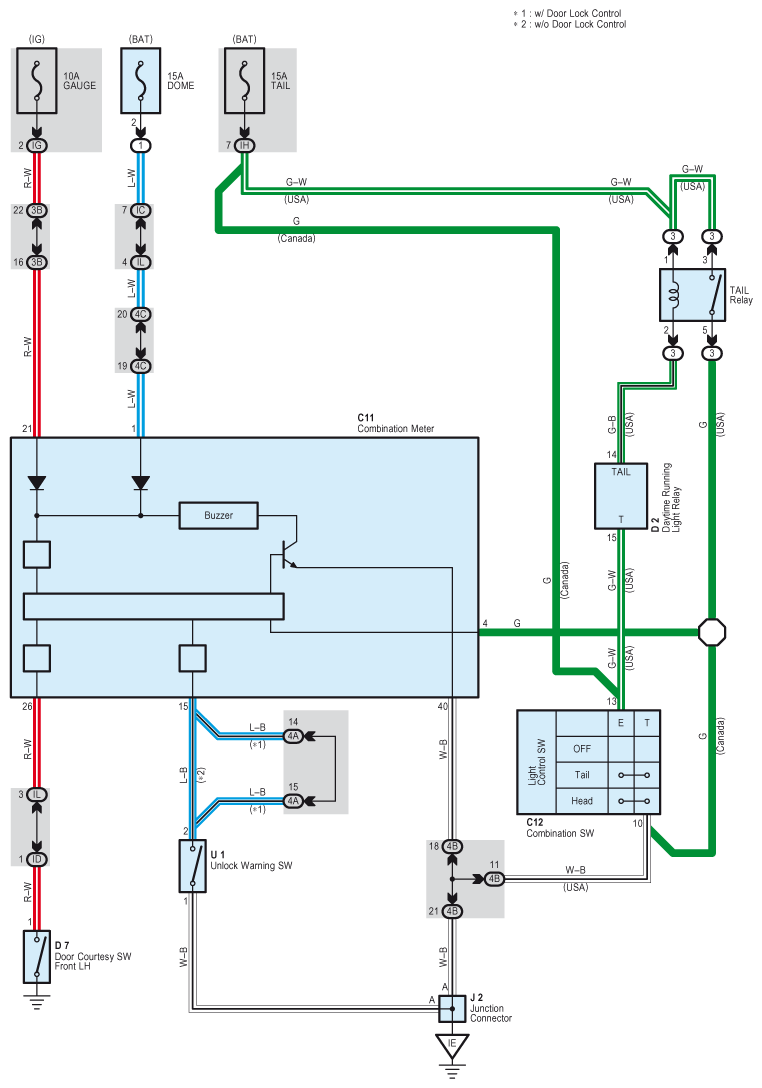

Fig 1: Key Reminder And Light Reminder - Circuit Diagram
