Moon Roof System: Notes

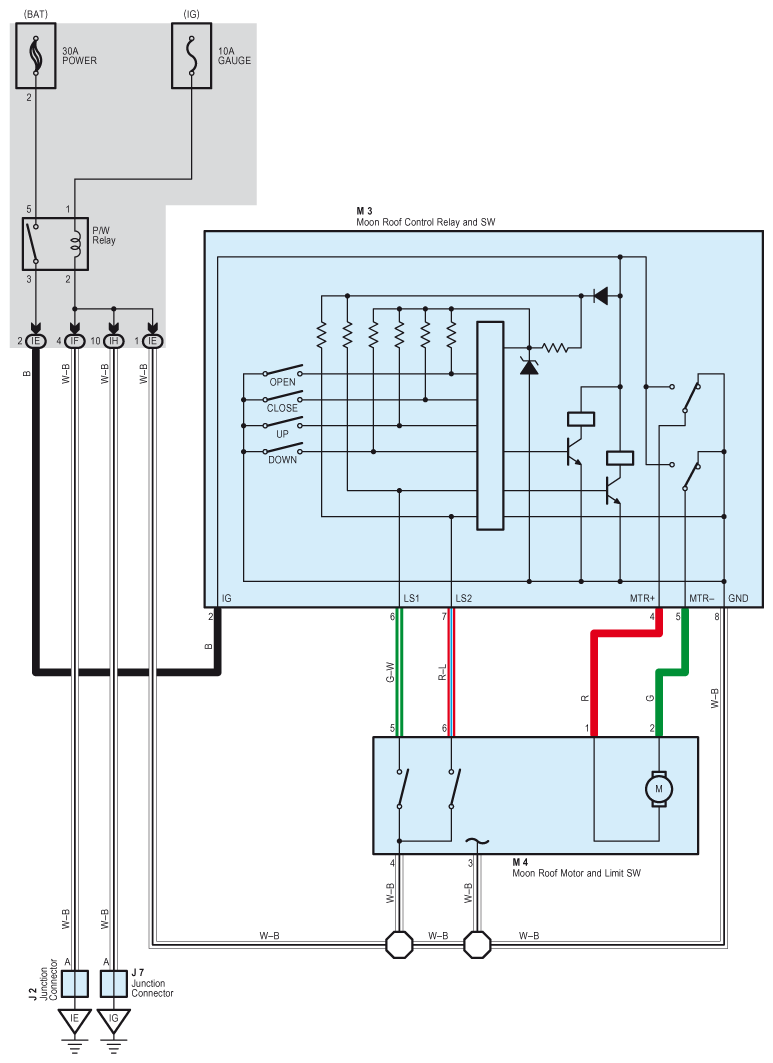

Fig 1: Moon Roof - Circuit Diagram

G07599194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
