Power Outlet for 12V
›
Notes
Power Outlet for 12V: Notes

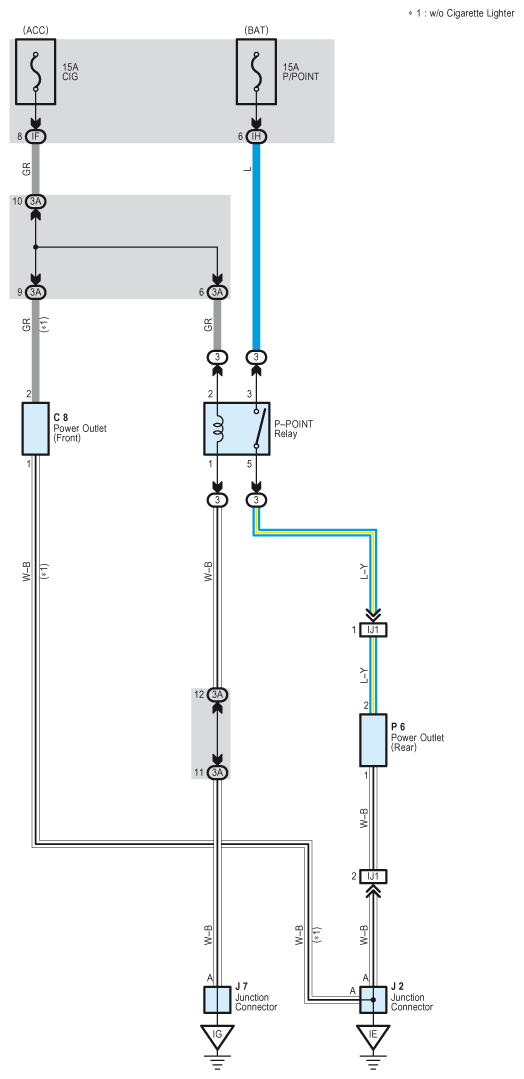

Fig 1: Power Outlet For 12V - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
