Power Window System: Notes

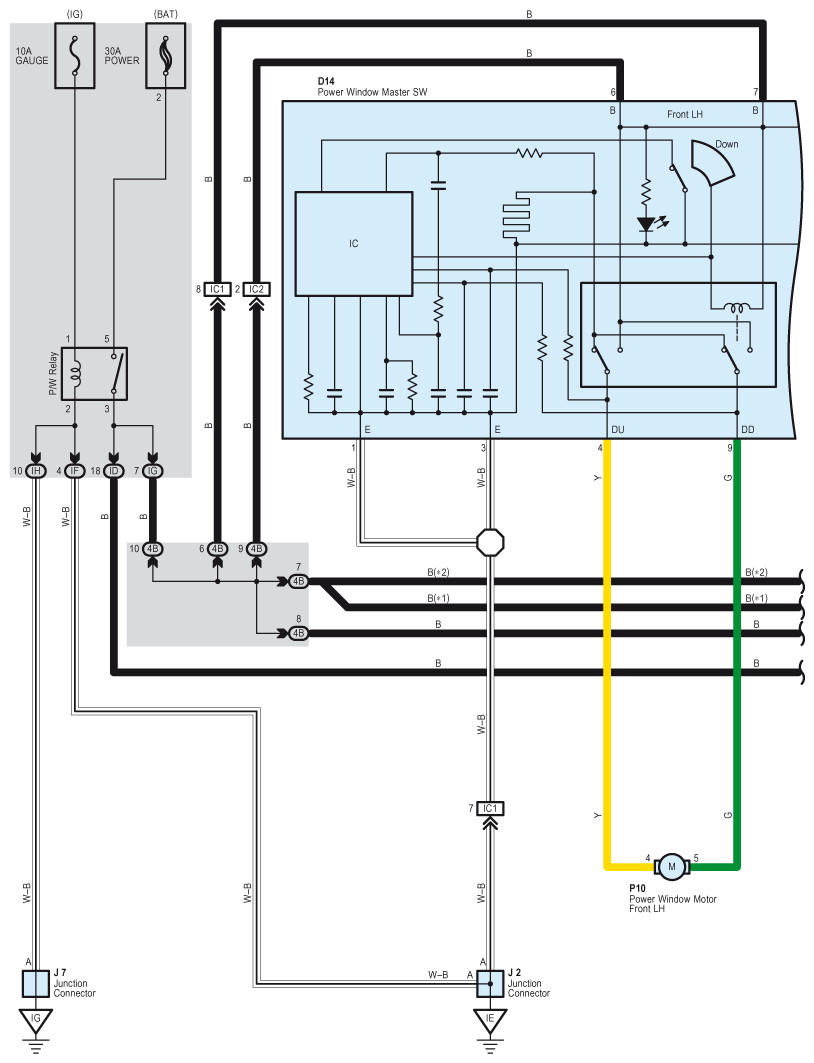

Fig 1: Power Window - Circuit Diagram (1 Of 2)
G07599179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

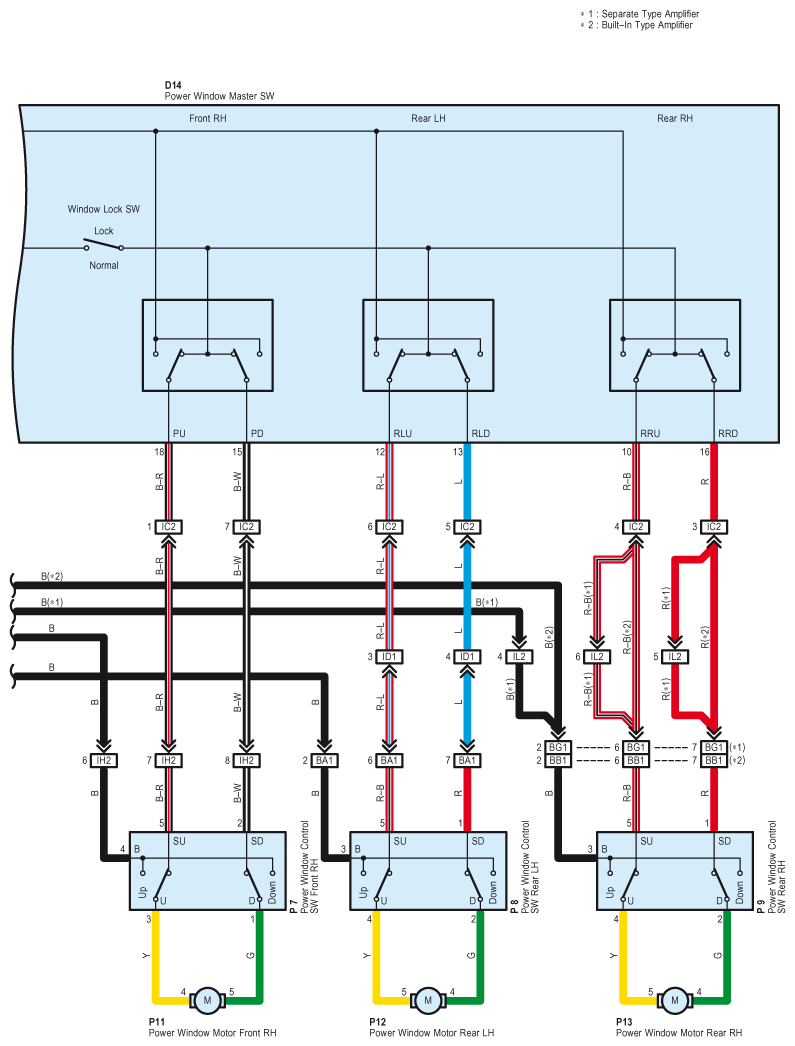

Fig 2: Power Window - Circuit Diagram (2 Of 2)
G07599180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
