Rear Window Defogger System
›
Notes
Rear Window Defogger System: Notes

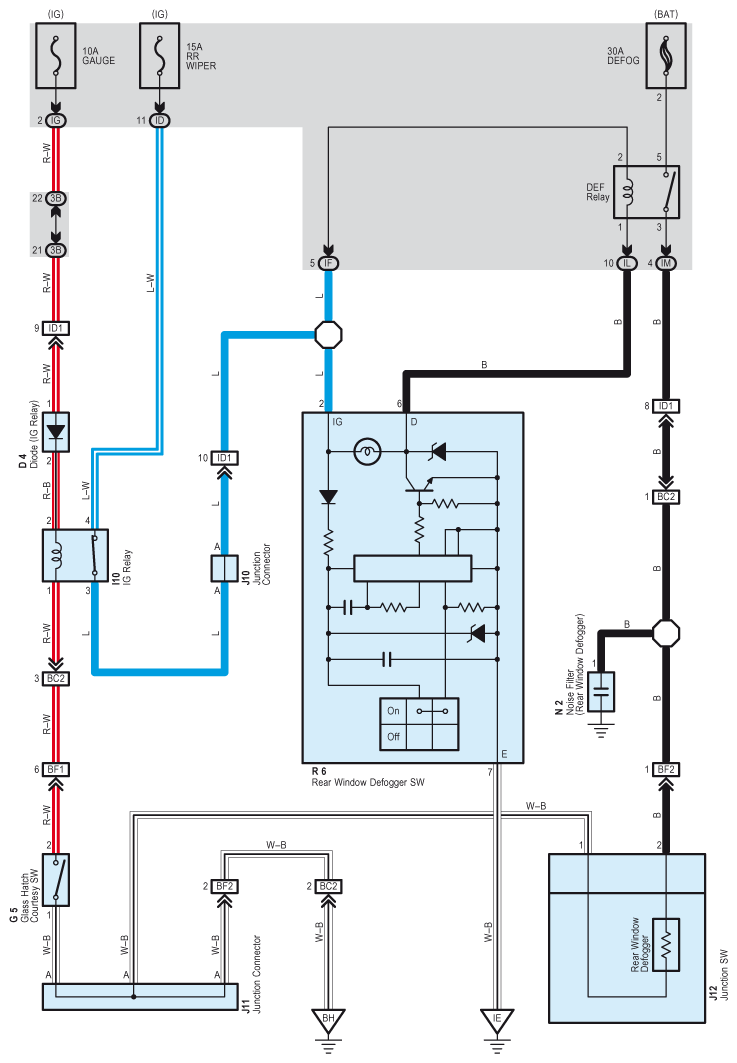

Fig 1: Rear Window Defogger - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
