Starting System: Notes

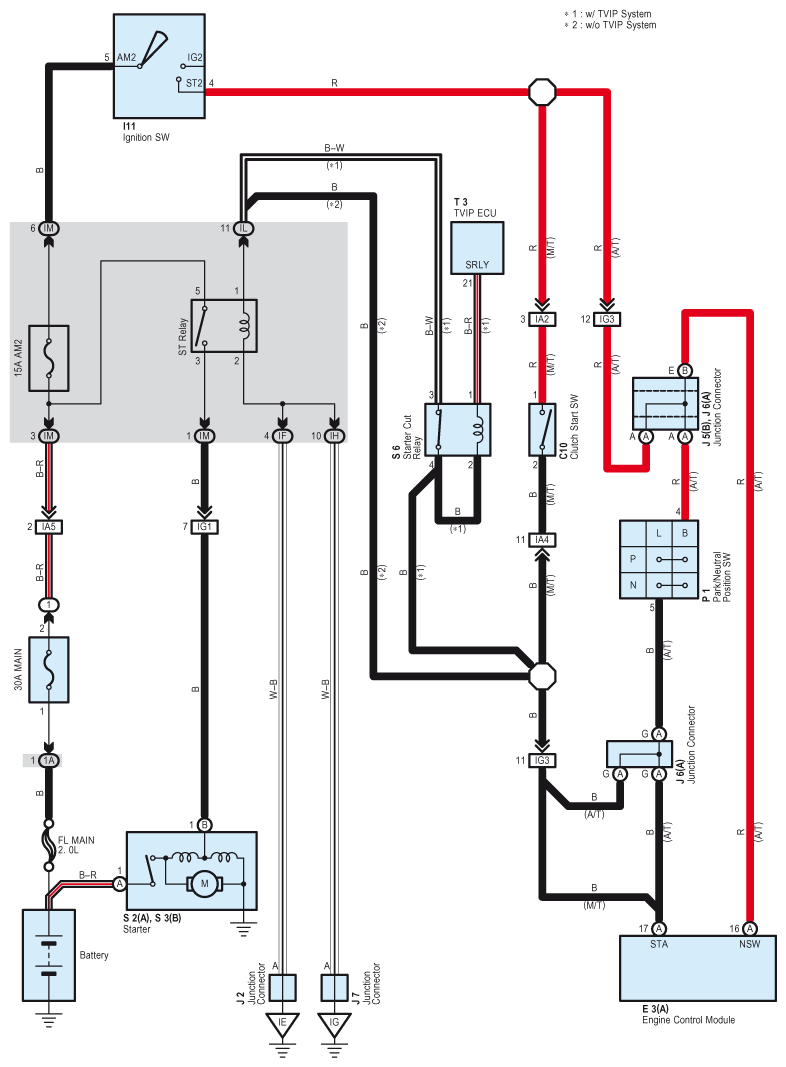

Fig 1: Starting - Circuit Diagram
G07599142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
