Stop Light System: Notes

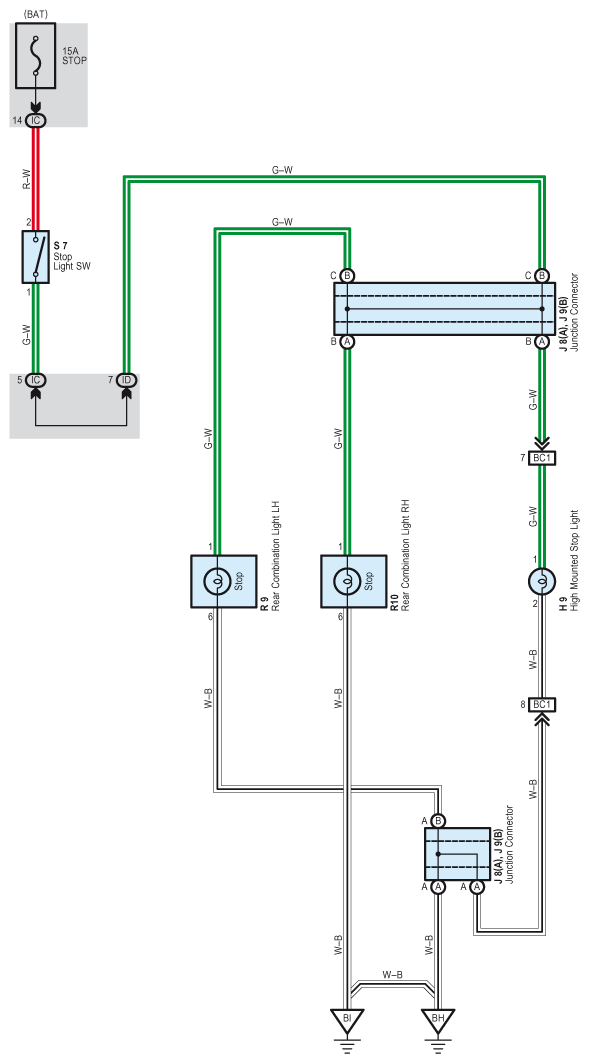

Fig 1: Stop Light - Circuit Diagram
G07599168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
