Matrix Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Engine Ignition System (1ZZ-FE)
›
Ignition System
›
Parts Location
Parts Location

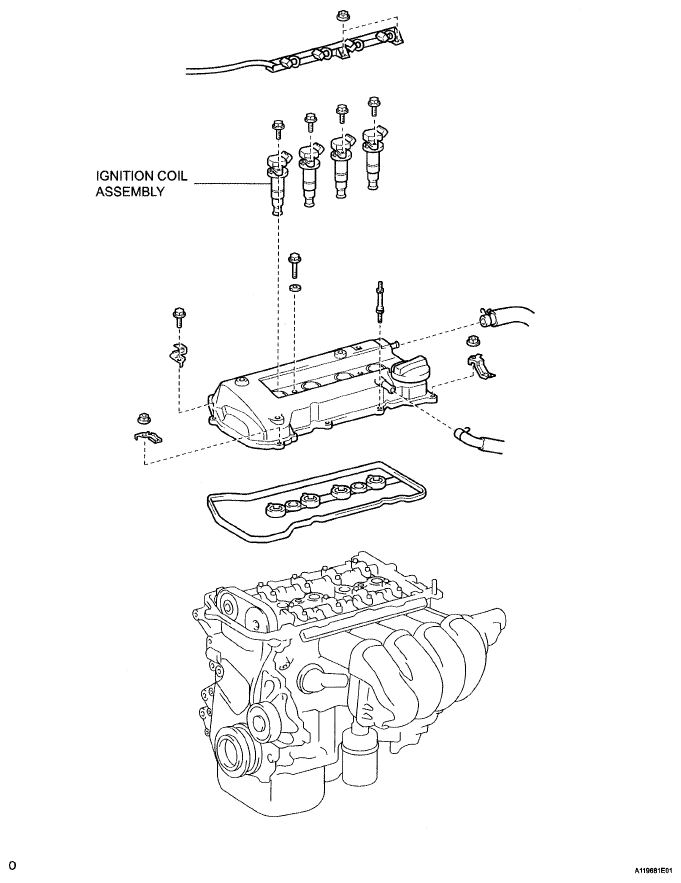

Fig 1: Ignition System Parts Location With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

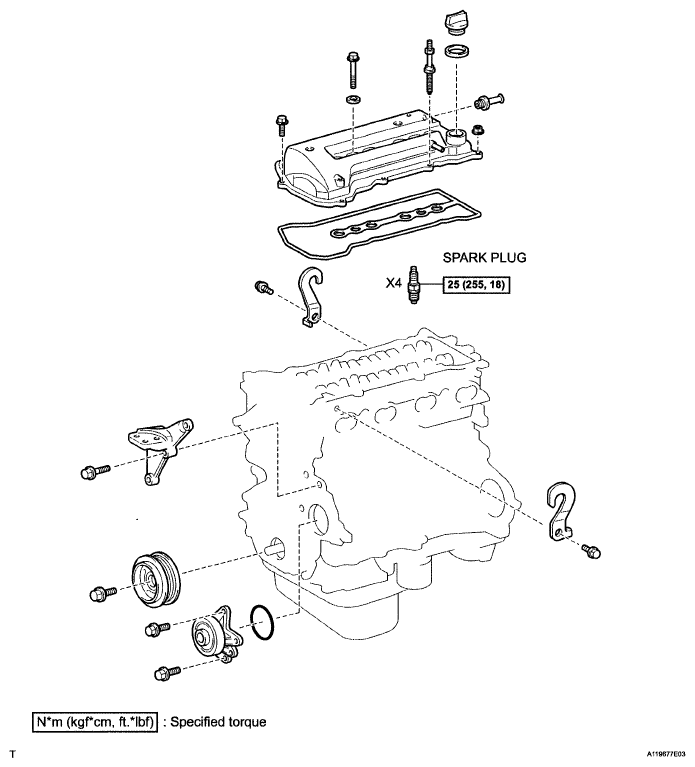

Fig 2: Identifying Ignition System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
