Automatic Transmission - A246E
›
Automatic Transaxle System
›
Parts Location
Parts Location

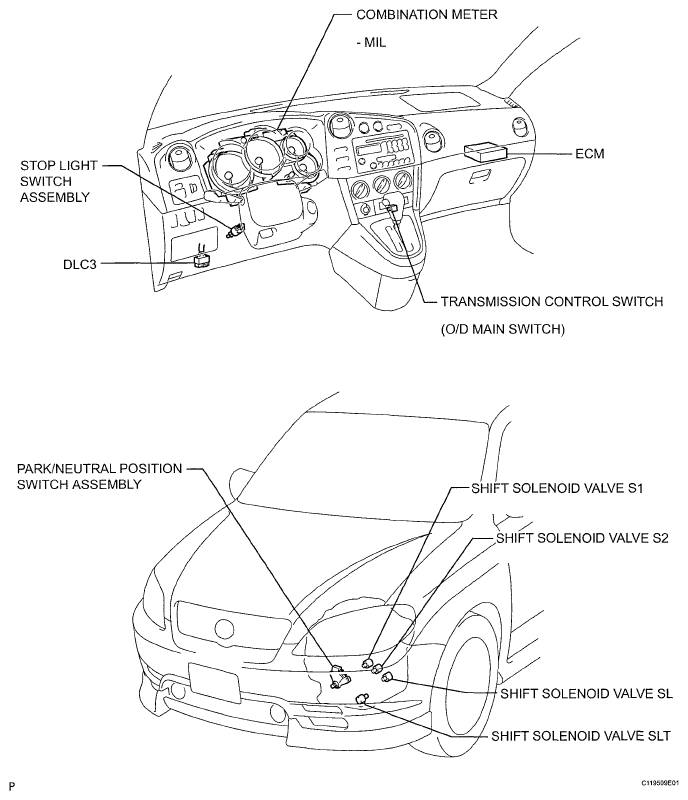

Fig 1: Identifying Automatic Transaxle System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
