Amplifier Antenna: Components

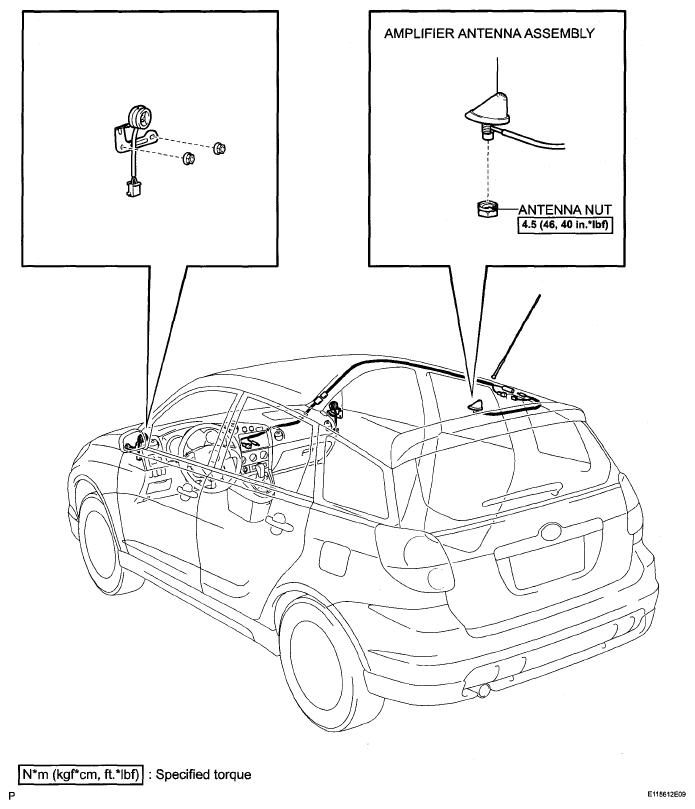

Fig 1: Amplifier Antenna Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
