Front Side Speaker: Components

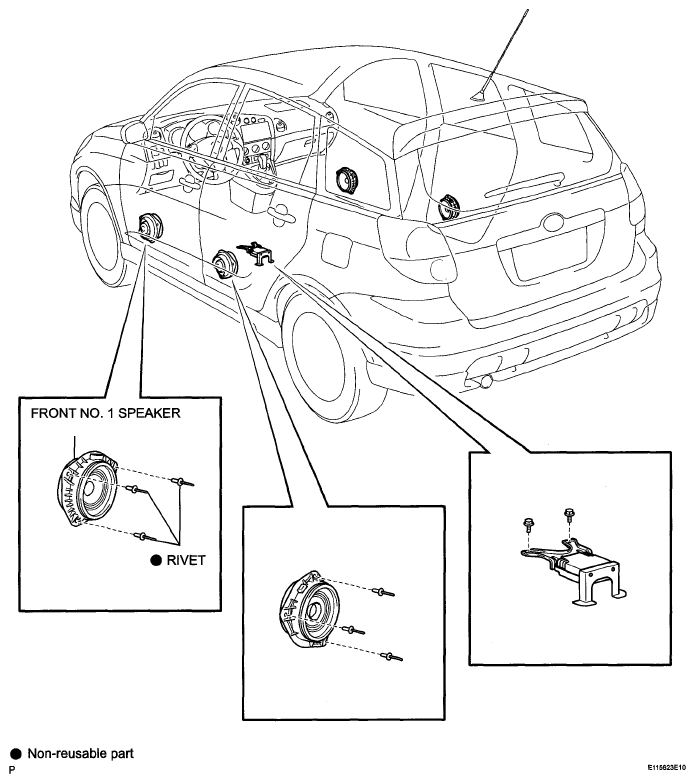

Fig 1: Front Side Speaker Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

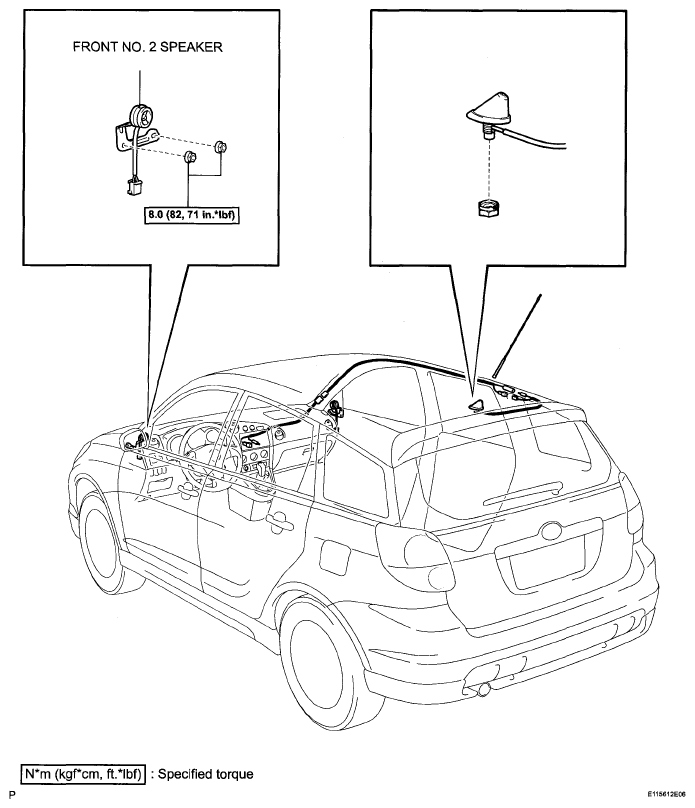

Fig 2: Identifying Front Side Speaker Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
