Transmission Control Cable Assembly: Components

WARNING: This page is about a different variant/trim than selected.

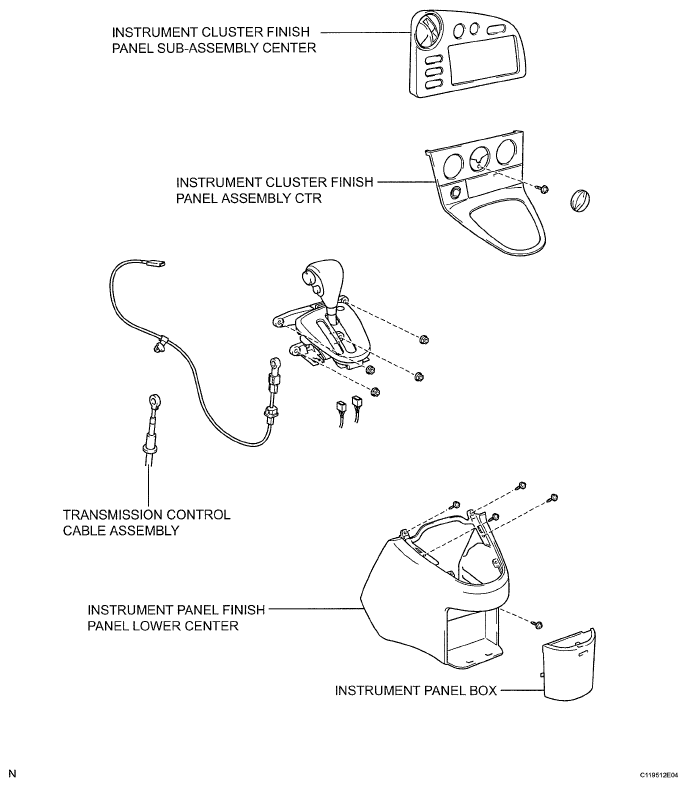

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specification (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 4)

Fig 4: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specification (4 Of 4)
