Valve Body Assembly: Components

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

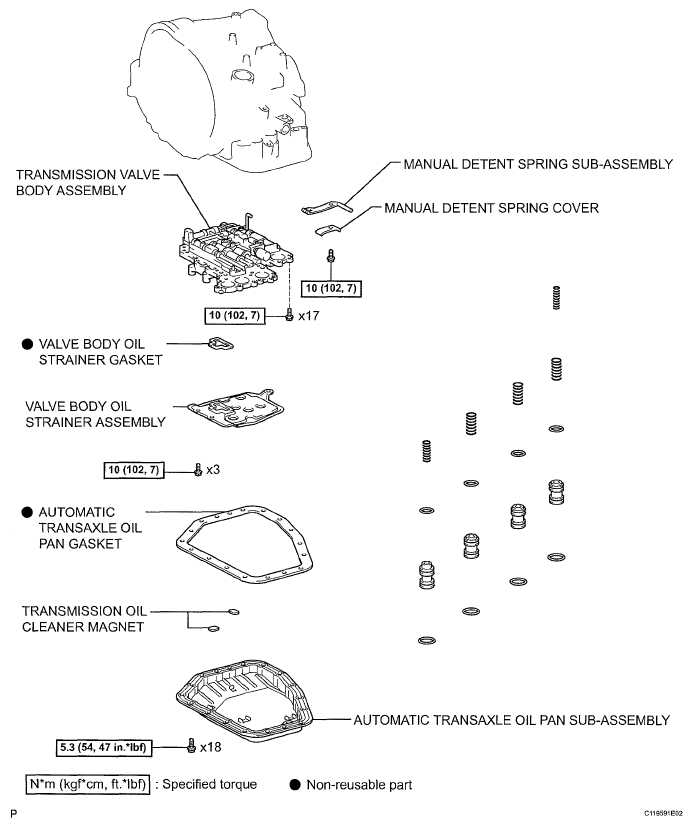

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)

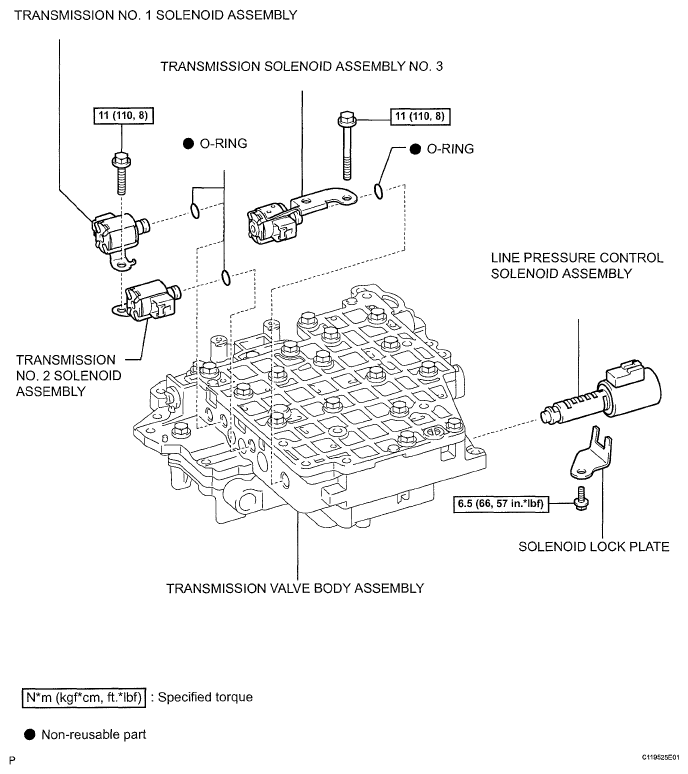

Fig 3: Identifying Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
