Manual Up / Down Function does not Operate on Driver Side
›
Wiring Diagram
Manual Up / Down Function does not Operate on Driver Side: Wiring Diagram

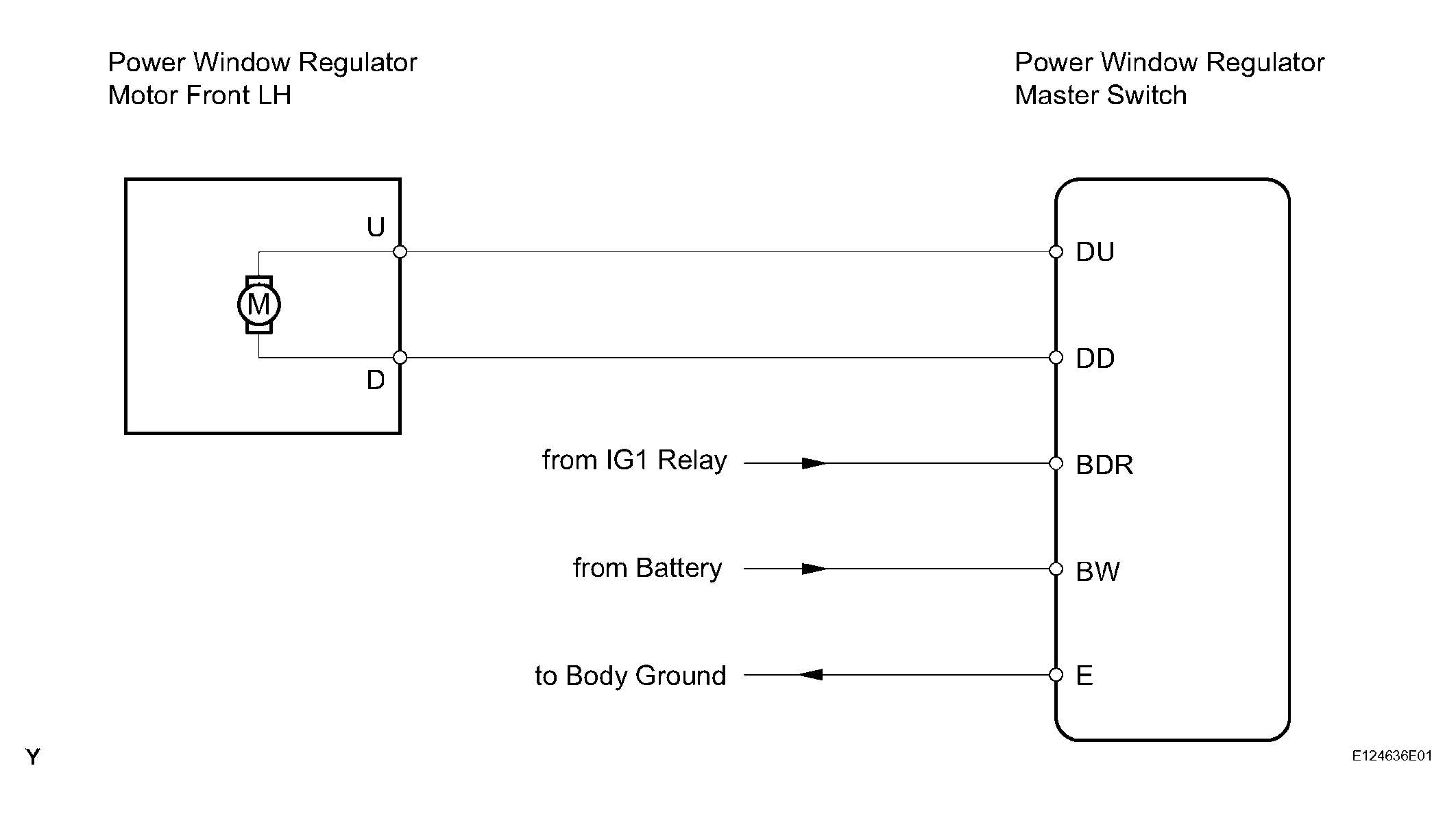

Fig 1: Manual Up/Down Function Not Operate On Driver Side - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
