Automatic Light Control System
›
Notes
Automatic Light Control System: Notes

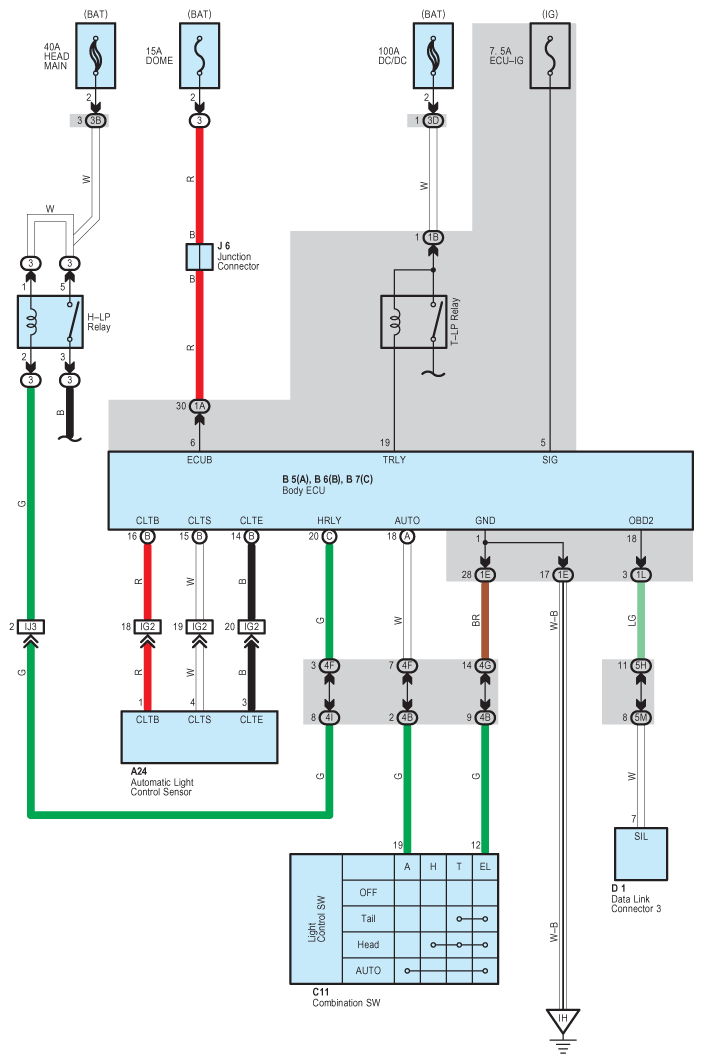

Fig 1: Automatic Light Control - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
