Seat Belt Warning System
›
Notes
Seat Belt Warning System: Notes

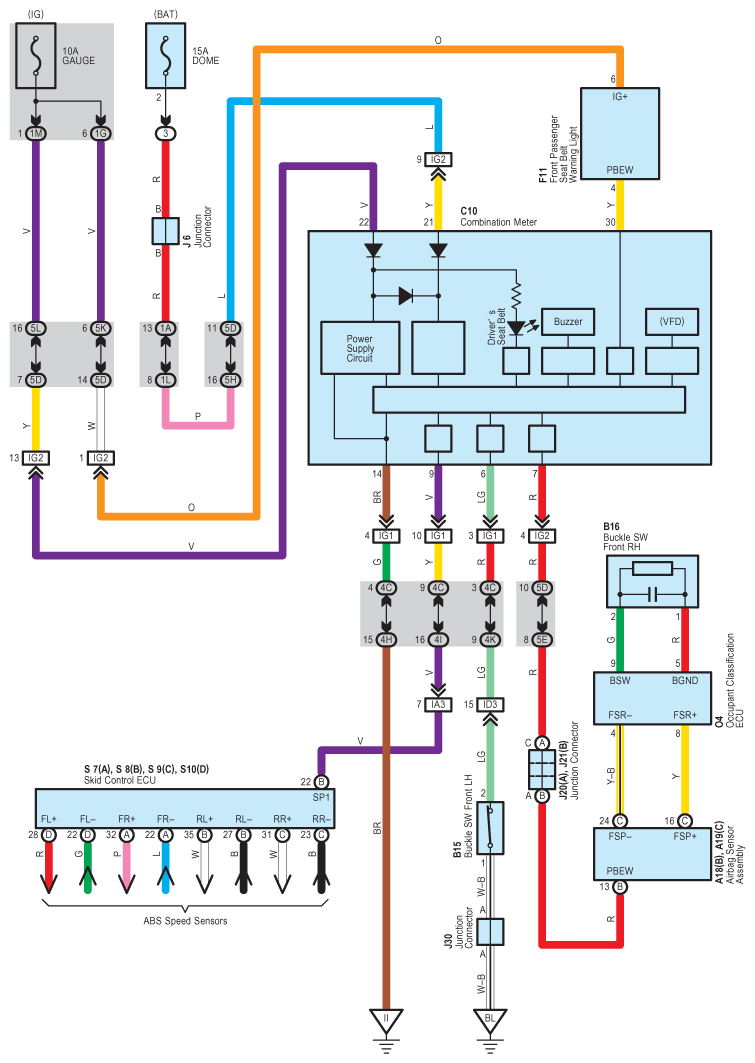

Fig 1: Seat Belt Warning - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
