System Diagram: Notes

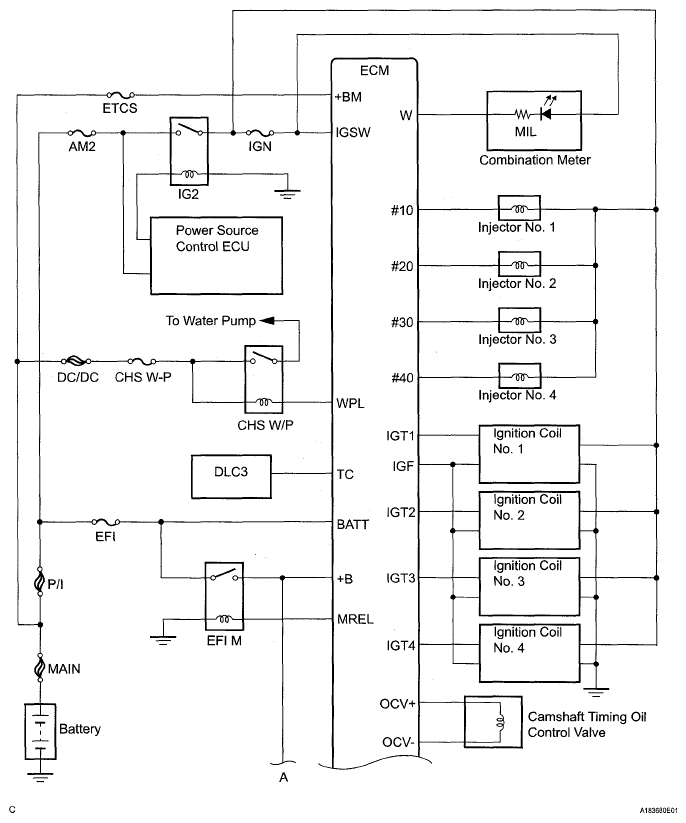

Fig 1: SFI System Diagram (1 Of 3)
G05673918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

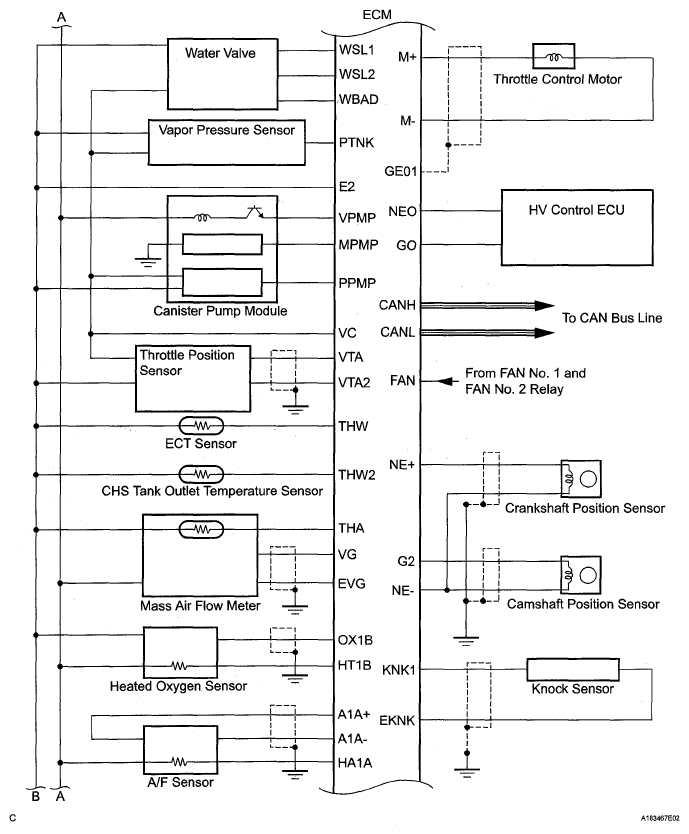

Fig 2: SFI System Diagram (2 Of 3)
G05673919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

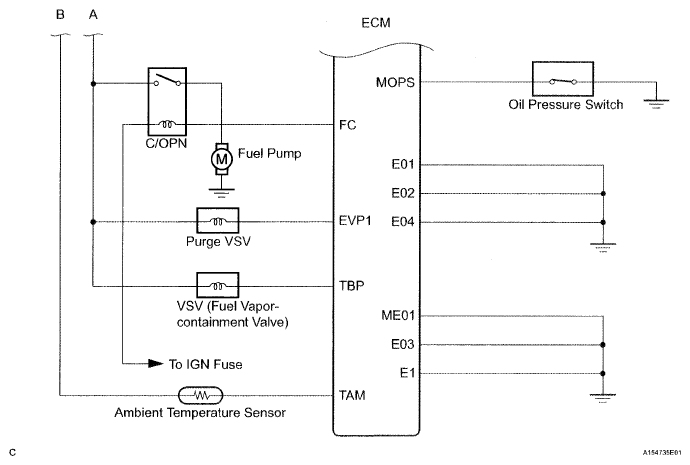

Fig 3: SFI System Diagram (3 Of 3)
G05188600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

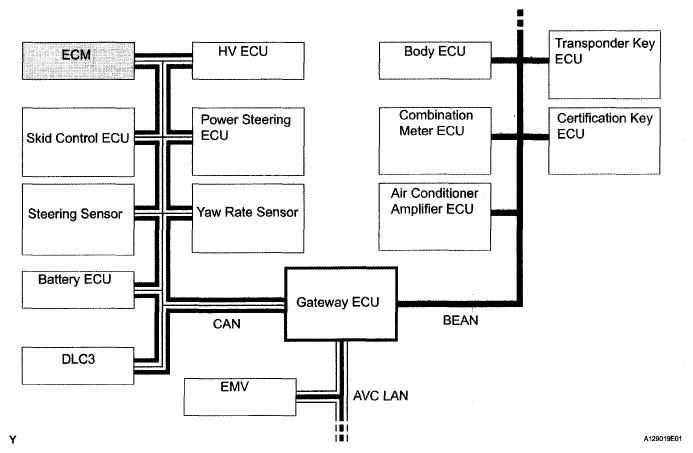

Fig 4: SFI System Communications Diagram
G05188601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
