Toyota
›
2008
›
RAV4 Base, 2.4 D, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Key Reminder System
›
Notes
Key Reminder System: Notes

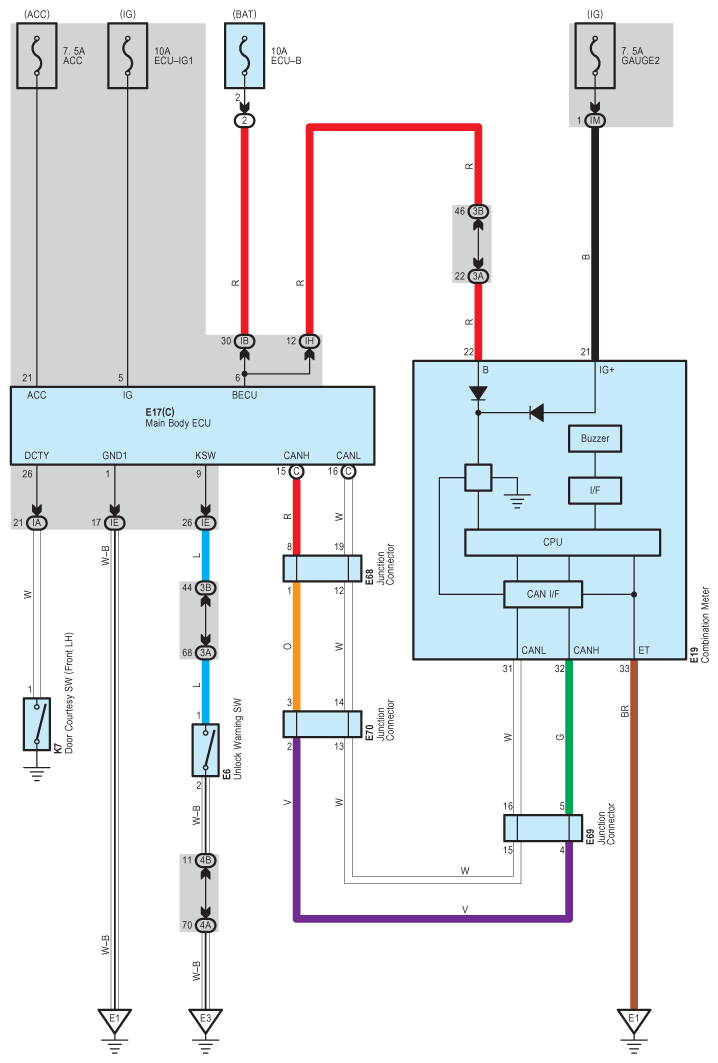

Fig 1: Key Reminder - Circuit Diagram
