Seat Heater System: Notes

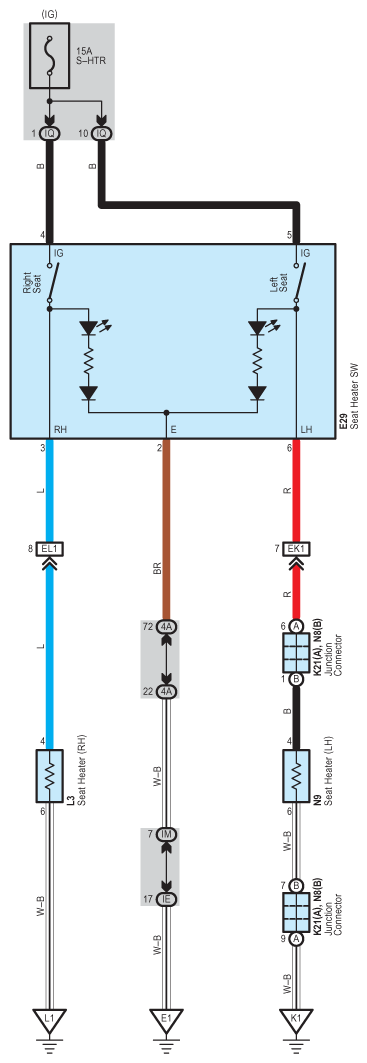

Fig 1: Seat Heater - Circuit Diagram

G07577375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
