RAV4 Base, 2.4 D, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2AZ-FE)
›
SFI System
›
Parts Location
Parts Location

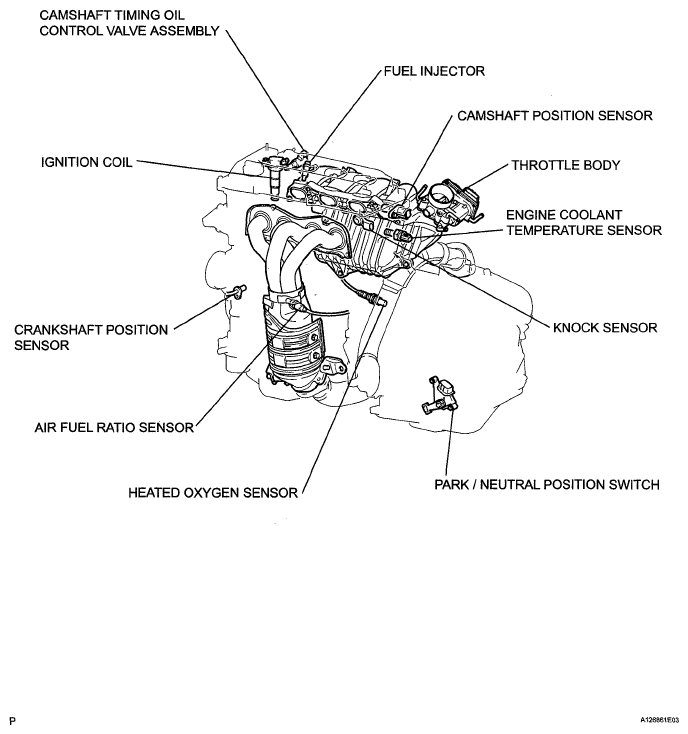

Fig 1: Identifying SFI System Replacement Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

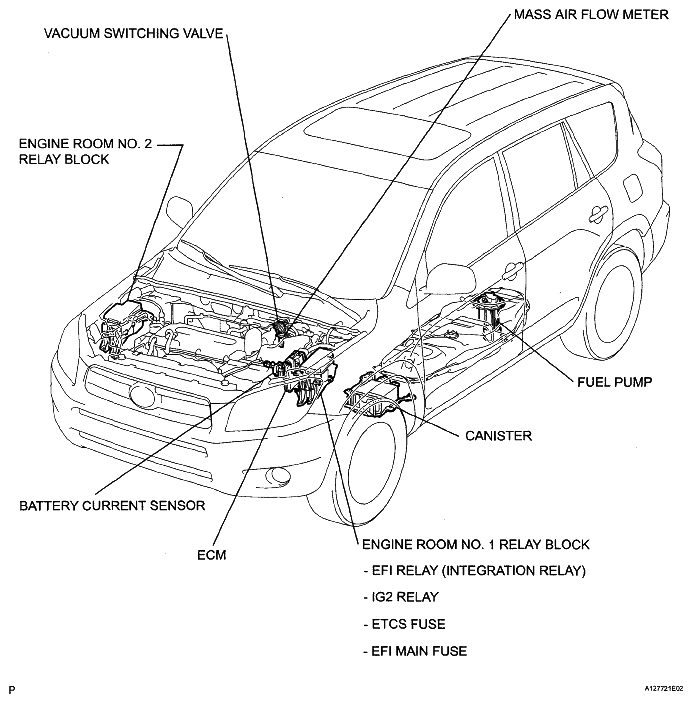

Fig 2: Identifying SFI System Replacement Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying SFI System Replacement Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
