Engine Ignition System (2AZ-FE)
›
Ignition System
›
Parts Location
Parts Location

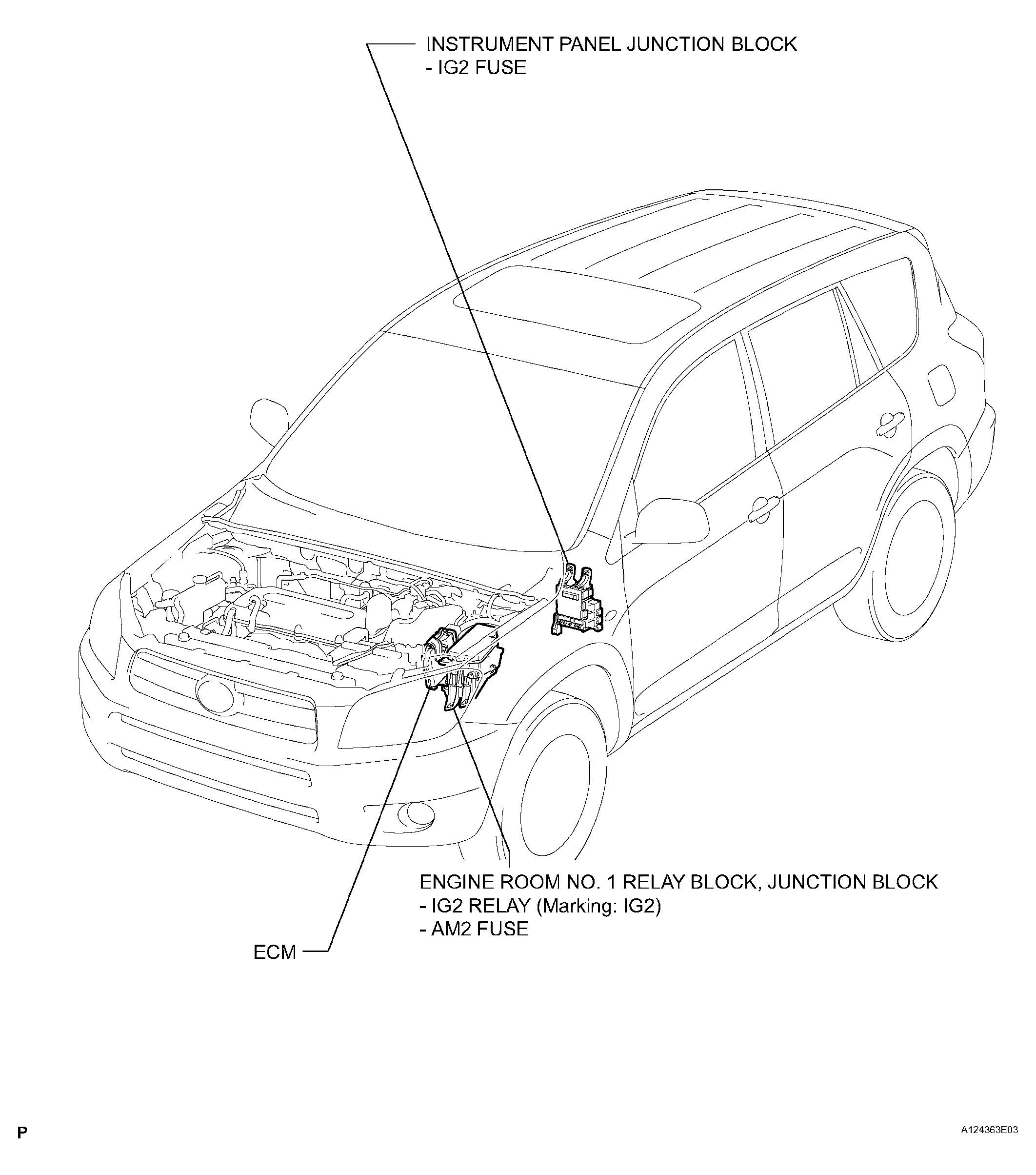

Fig 1: Ignition System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

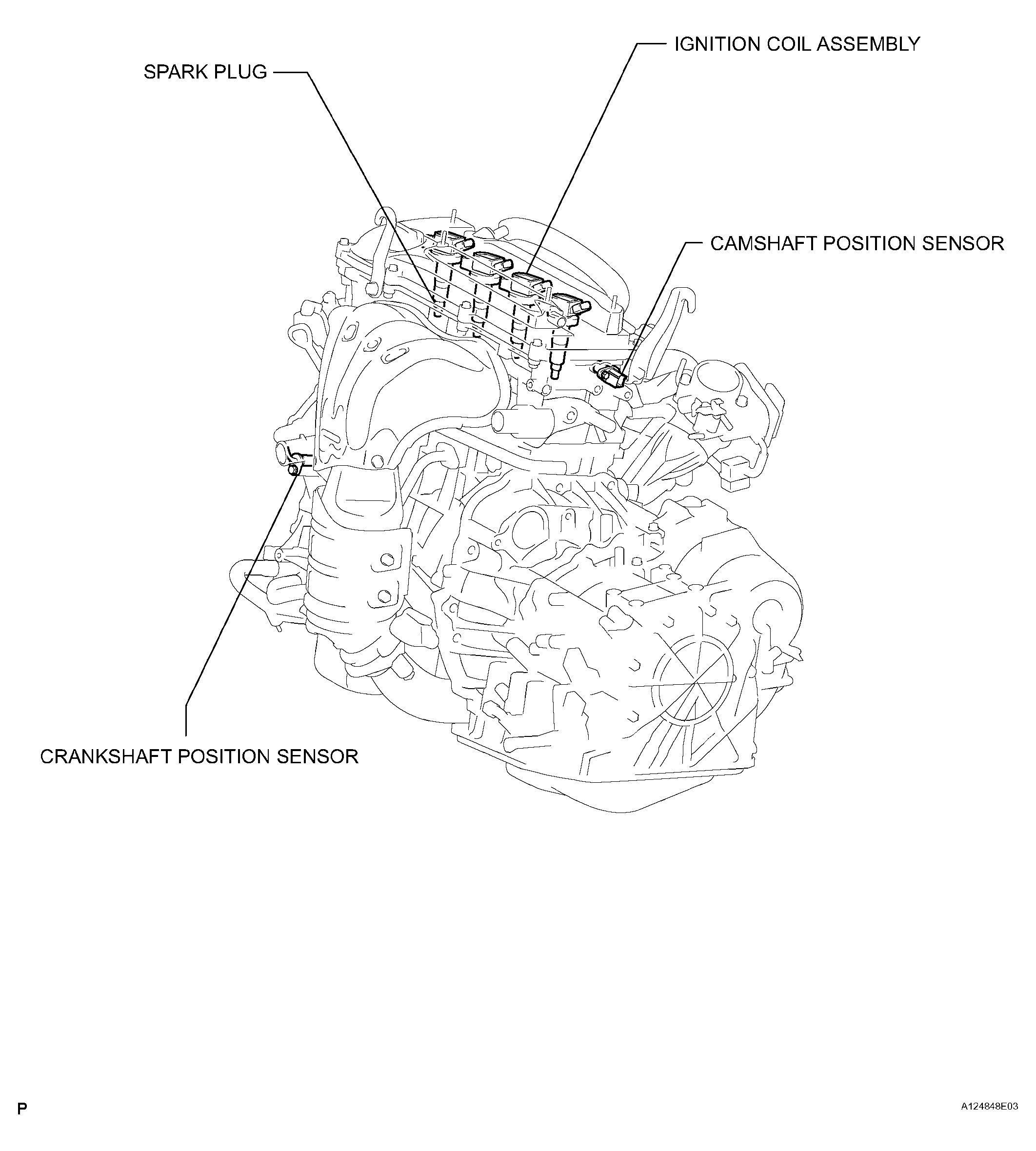

Fig 2: Ignition System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
