Starting System: Notes

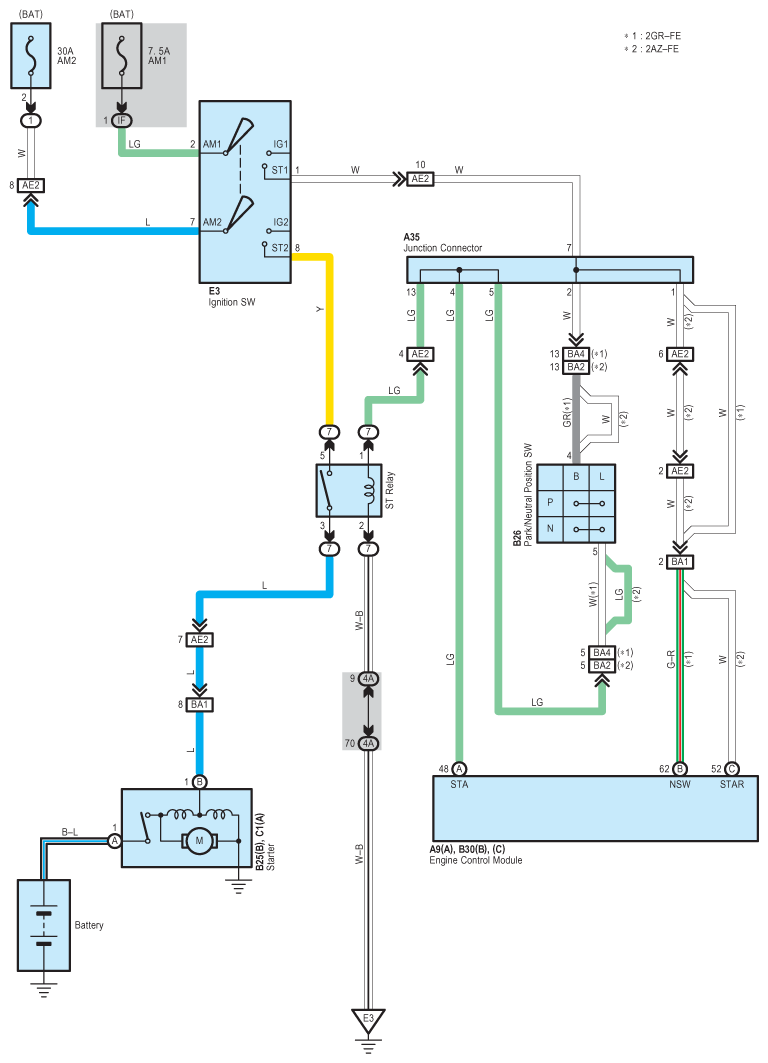

Fig 1: Starting - Circuit Diagram

G07577311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
